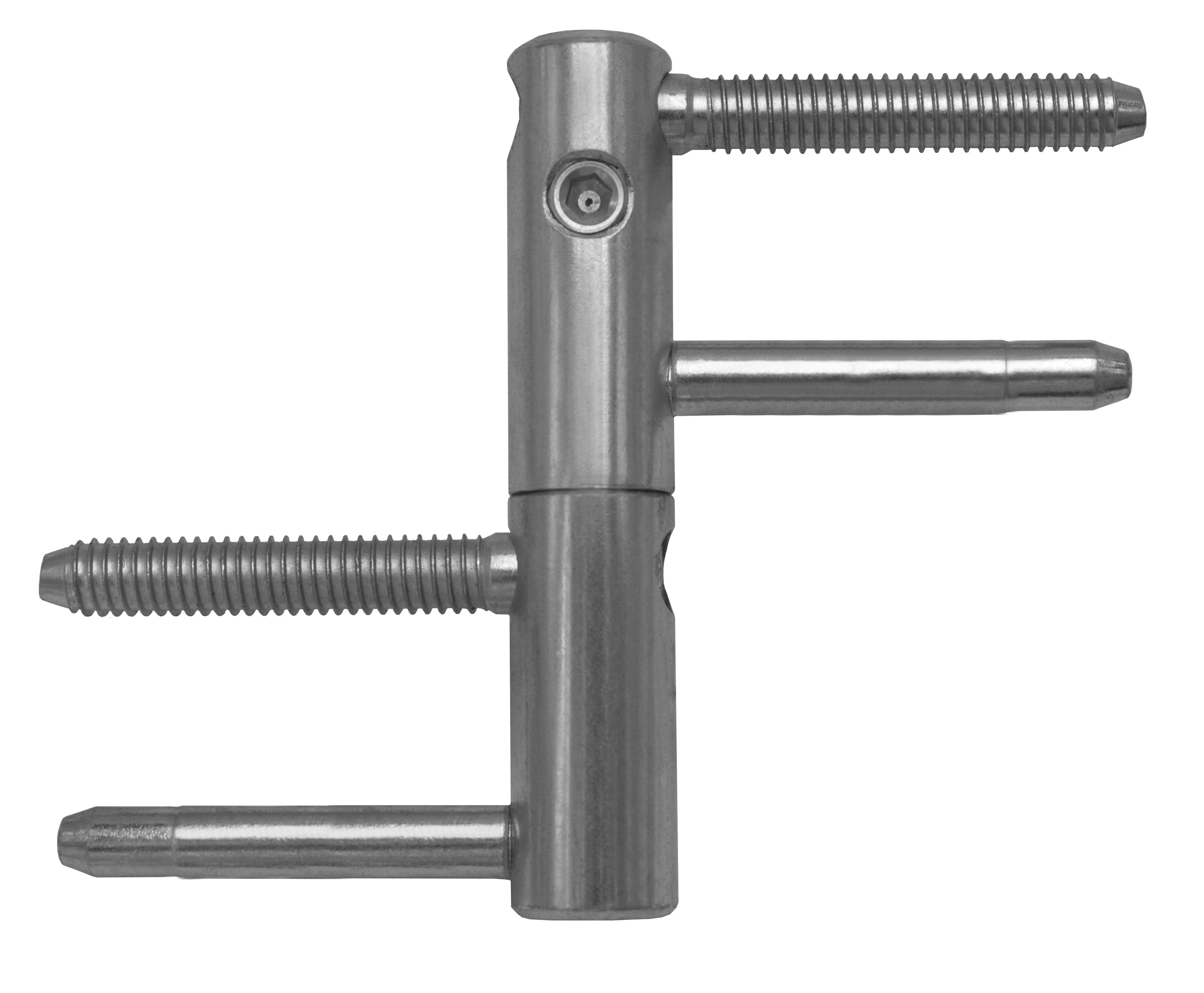

Door hinge EXPERT 20 DZ PH

Catalog number 9677
Load 50.00
Type of hinge Complete hinge
Door Exterior
Orientation of door or window For right and left door (frame)
According to material of door leaf Wood
According to door execution Rebate
According to doorframe Solid wood
Ending Without decorative ending
Fire resistance no
Gripping Screw in
Diameter of bolt rivet(s) Special screw-thread into wood ø 9.6
Bolt(s) lenght 56,6 mm
Plug high 25,6 mm
Czech product Yes

9677

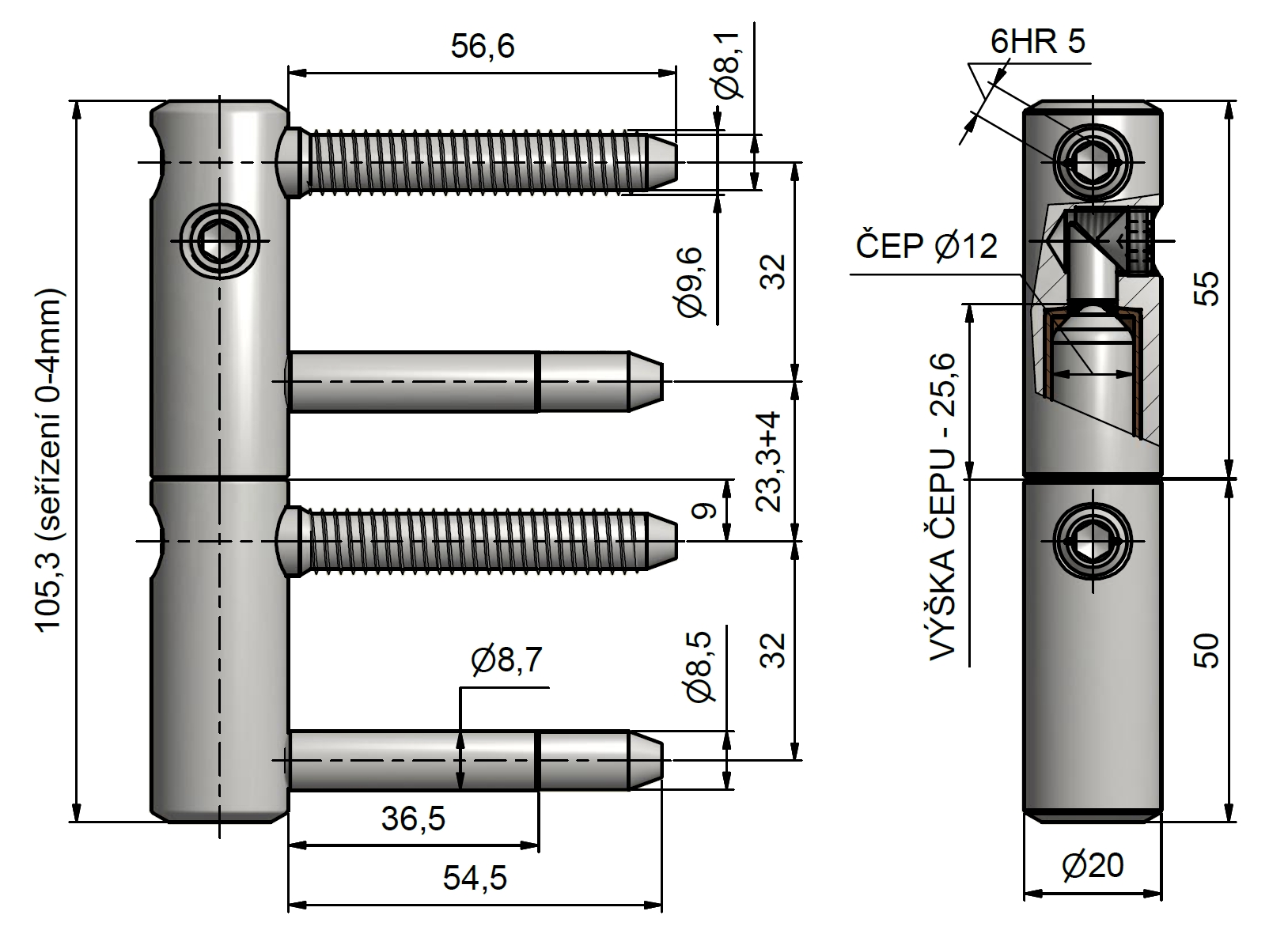

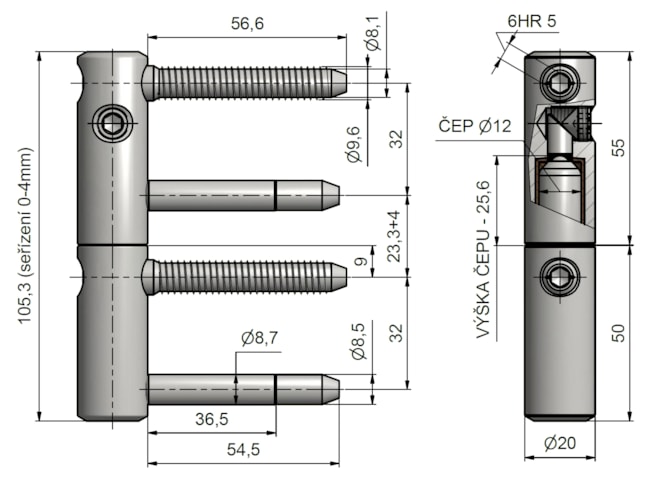

Drawing

Available variants

cover Code type package size without VAT / MJ* incl. VAT / MJ* demand
detail
Code: 96775510 name: Yellow zinc package size: 20 pcs without VAT / MJ*: € 7.83 incl. VAT / MJ*: € 9.48
detail
Code: 96775530 name: Blue zinc package size: 20 pcs without VAT / MJ*: € 7.83 incl. VAT / MJ*: € 9.48

No item matches your selection.

*Prices for MJ =for 1 piece (or 1 set)are indicative. When purchasing a smaller quantity than the package, a surcharge of up to 10% of the price of the goods may be charged.

UPON REQUEST variants – when ordering less than 100 pcs – extra charge 10%.

Complete hinge EXPERT adjustable in three directions. There is a possibility to decorate hinge by caps.
