• Catalog sheet

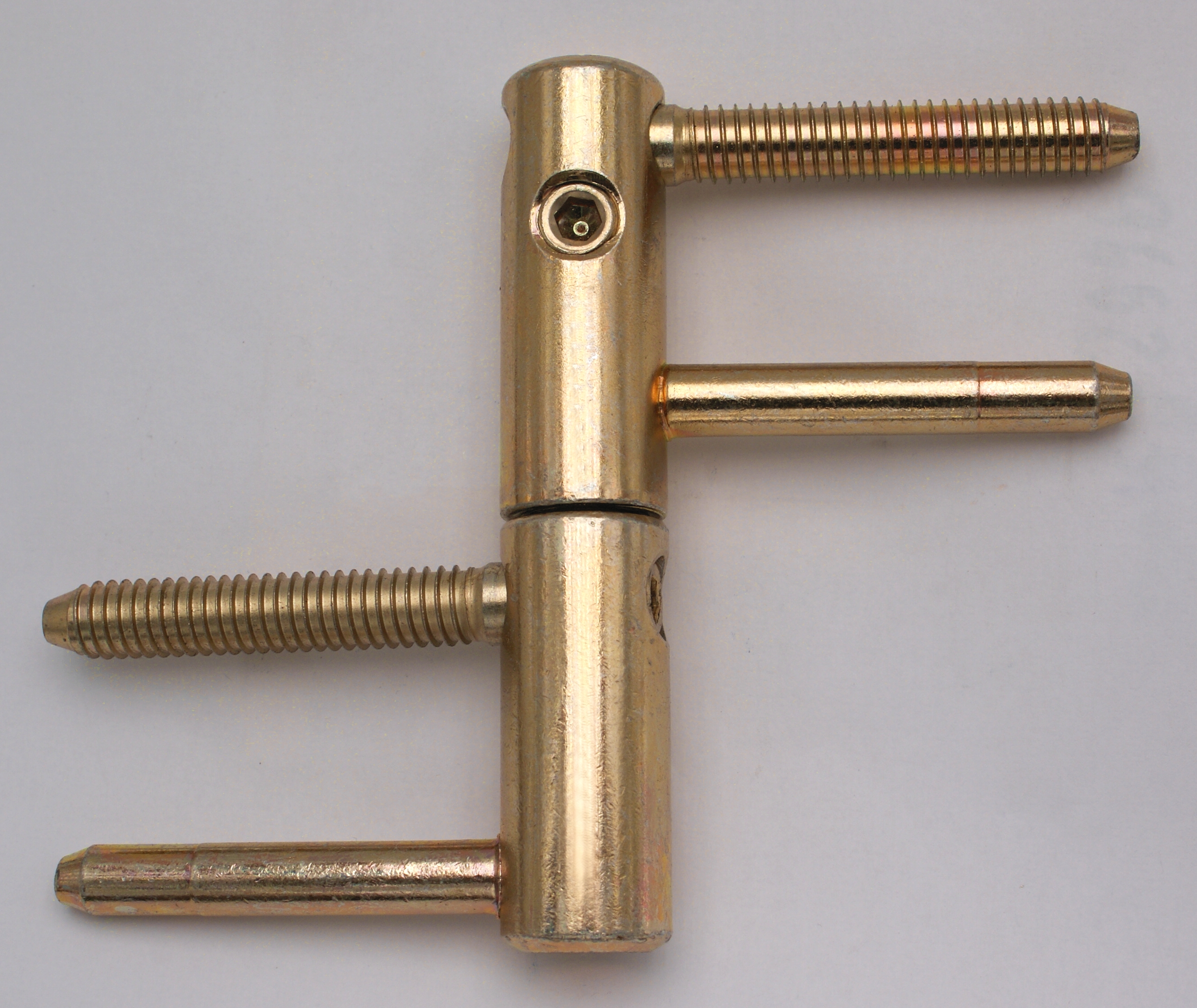

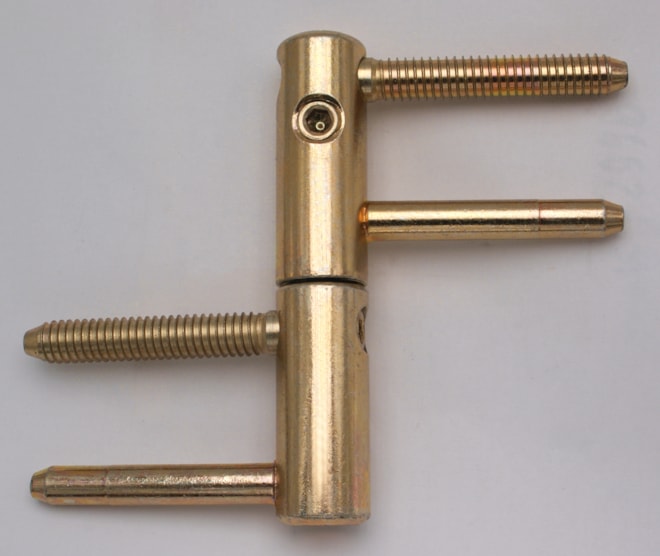

    Door hinge EXPERT 20 DZ PH Yellow zinc

    Catalog number 96775510
    Load 50.00
    Type of hinge Complete hinge
    Door Exterior
    Orientation of door or window For right and left door (frame)
    According to material of door leaf Wood
    According to door execution Rebate
    According to doorframe Solid wood
    Ending Without decorative ending
    Fire resistance no
    Gripping Screw in
    Diameter of bolt rivet(s) Special screw-thread into wood ø 9.6
    Bolt(s) lenght 56,6 mm
    Plug high 25,6 mm
    Czech product Yes

    Door hinge EXPERT 20 DZ PH Yellow zinc

    Available variants

    cover Code type package size without VAT / MJ* incl. VAT / MJ* demand
    		Code: 96775510 name: Yellow zinc package size: 20 pcs without VAT / MJ*: € 7.88 incl. VAT / MJ*: € 9.53
    detail
    		Code: 96775530 name: Blue zinc package size: 20 pcs without VAT / MJ*: € 7.88 incl. VAT / MJ*: € 9.53

    No item matches your selection.

    *Prices for MJ =for 1 piece (or 1 set)are indicative. When purchasing a smaller quantity than the package, a surcharge of up to 10% of the price of the goods may be charged.

    UPON REQUEST variants – when ordering less than 100 pcs – extra charge 10%.

    Complete hinge EXPERT adjustable in three directions. There is a possibility to decorate hinge by caps.
