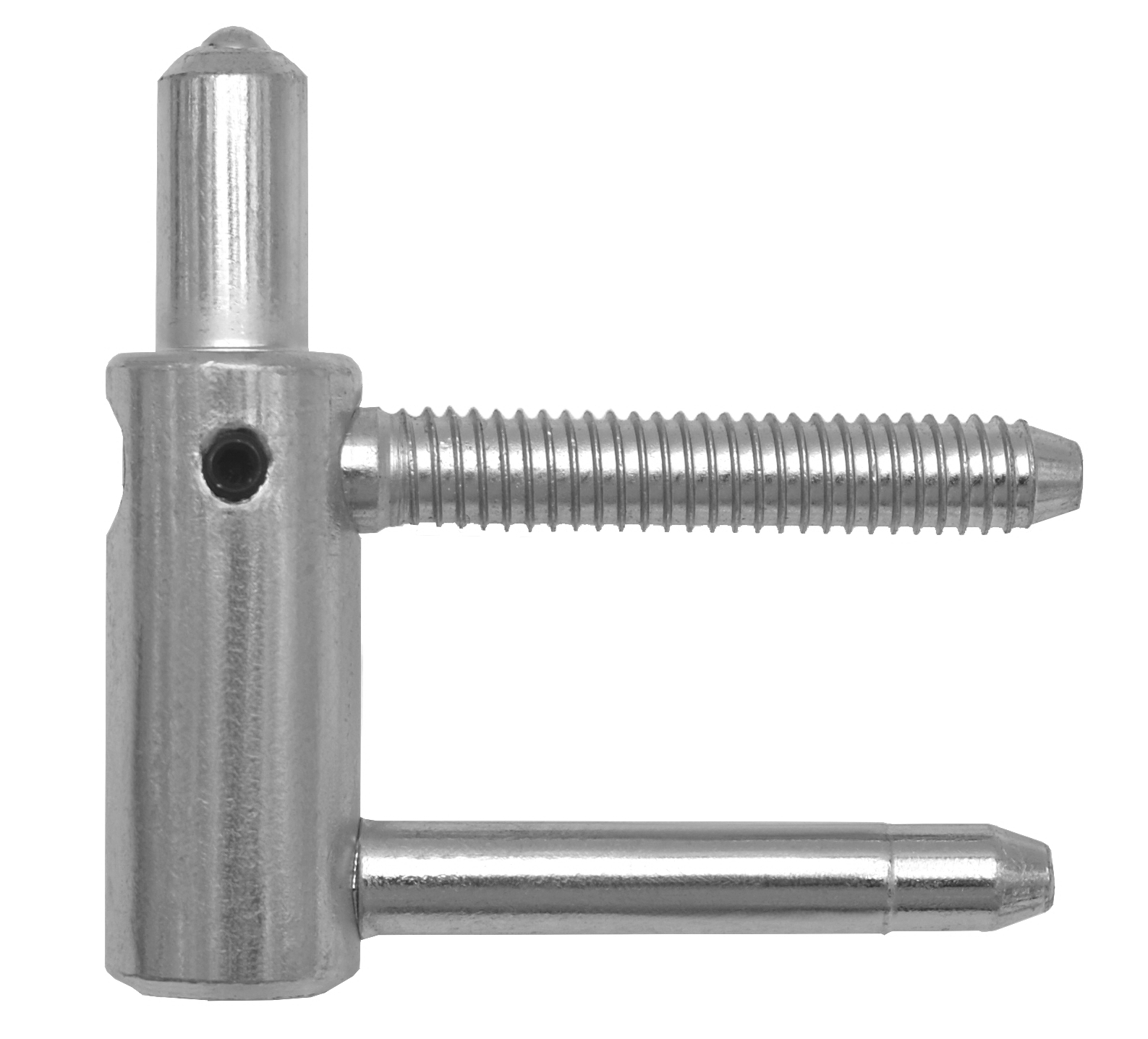

Door hinge TRIO 20 SD DZ BZ

cat. no.: 5904

Load: 50.00
Type of hinge: Lower part
Door: Exterior
Orientation of door or window: For right and left door (frame)
According to door execution: Rebate
According to doorframe: Solid wood
Ending: Without decorative ending
Fire resistance: no
Gripping lowwer part: Screw in
Diameter of bolt rivet(s): Special screw-thread into wood ø 9.6
Bolt(s) lenght: 56,6 mm
Plug high: 25,6 mm
Czech product: Yes

Use

Usage: Lower part hinge TRIO 20 + upper part adjustable in three directions. Diameter pin 12 mm. There is a posibility to use ABS and metal caps on hinges.

Door hinge TRIO 20 SD DZ BZ

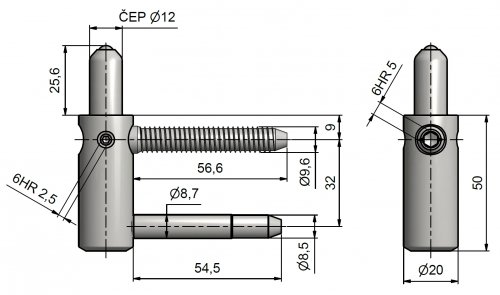

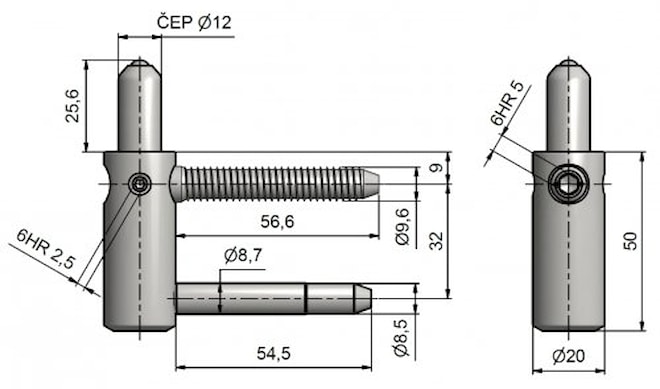

Drawing

Available variants

code name package size without VAT / MJ* incl. VAT / MJ*
code: 59045510 name: Yelow zinc package size: 20 pc without VAT / MJ*: €3.60 incl. VAT / MJ*: €4.36
code: 59045530 name: Blue zinc package size: 20 pc without VAT / MJ*: €3.60 incl. VAT / MJ*: €4.36

*Prices for MJ = for 1 piece (or 1 set)are indicative. When purchasing a smaller quantity than the package, a surcharge of up to 10% of the price of the goods may be charged.

Available variants

code name package size without VAT / MJ* incl. VAT / MJ*
code: 59045510 name: Yelow zinc package size: 20 pc without VAT / MJ*: €3.60 incl. VAT / MJ*: €4.36
code: 59045530 name: Blue zinc package size: 20 pc without VAT / MJ*: €3.60 incl. VAT / MJ*: €4.36

*Prices for MJ = for 1 piece (or 1 set)are indicative. When purchasing a smaller quantity than the package, a surcharge of up to 10% of the price of the goods may be charged.
