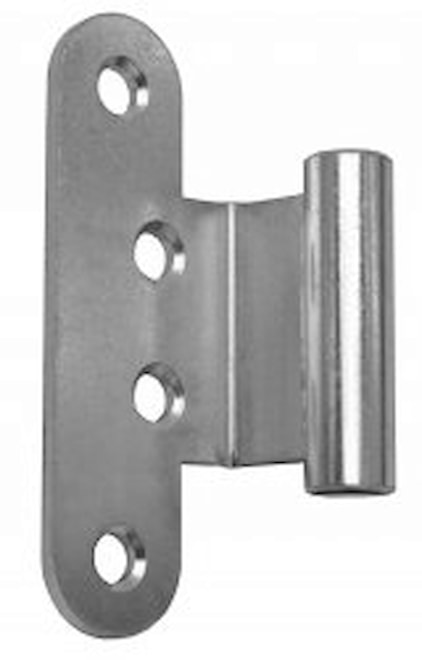

Door hinge TRIO 15 VD BP OZ L

Name: Door hinge TRIO 15 VD BP OZ L
SKU: 5903
Price: 6.96 EUR
Availability: InStock

cat. no.: 5903

Load: 40.00

Type of hinge: Upper part

Door: Interior

Orientation of door or window: For left door (frame)

According to material of door leaf: Wood

According to door execution: Non rebated

Ending: Without decorative ending

Main material: Steel

Fire resistance: no

Gripping: Screw on

We recommend used: Screws of ø 5 mm minimum length 50 mm

Czech product: Yes

print cat. sheet

Download:

Sampler of surface finishes and symbols used in the catalogue

Use

For turning connection of non-rebated door with frame. There is a possibility t use ABS caps TRIO PP on hinges.

5903

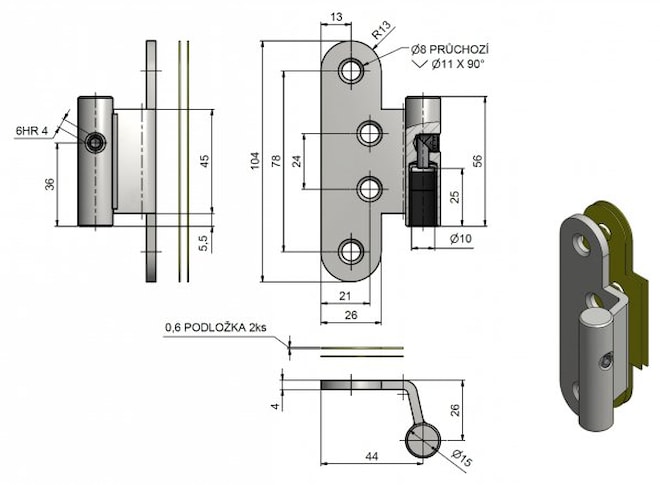

Drawing

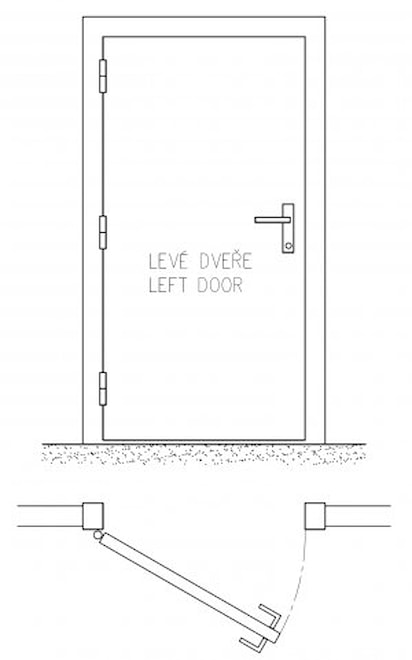

left door

Available variants

	code	type	package size	without VAT / MJ*	incl. VAT / MJ*	demand
	code: 59030510	name: Yellow zinc	package size: 25 pcs	without VAT / MJ*: €5.75	incl. VAT / MJ*: €6.96
	code: 59030530	name: Blue zinc	package size: 25 pcs	without VAT / MJ*: €5.75	incl. VAT / MJ*: €6.96

*Prices for MJ = for 1 piece (or 1 set)are indicative. When purchasing a smaller quantity than the package, a surcharge of up to 10% of the price of the goods may be charged.

Available variants

	code	name	package size	without VAT / MJ*	incl. VAT / MJ*
	code: 59030510	name: Yellow zinc	package size: 25 pcs	without VAT / MJ*: €5.75	incl. VAT / MJ*: €6.96
	code: 59030530	name: Blue zinc	package size: 25 pcs	without VAT / MJ*: €5.75	incl. VAT / MJ*: €6.96

*Prices for MJ = for 1 piece (or 1 set)are indicative. When purchasing a smaller quantity than the package, a surcharge of up to 10% of the price of the goods may be charged.
