Door hinge GEMMA 55 - 20/18 cranked UR01 S3

Action

cat. no.: 5585

Load: 56.00
Type of hinge: Complete hinge
Door: Exterior
Orientation of door or window: For right and left door (frame)
According to material of door leaf: Wood
According to door execution: Rebate
According to doorframe: Solid wood
Ending: Decorative ending UR01
Main material: Alloy ZAMAK and steel
Fire resistance: no
Gripping: Special
Czech product: Yes

Use

Elegant hinge with decorative ending suitable mainly for historical and stylish buildings. It is determined for exterior doors with rabbet 15 - 18 mm, especially for profile EURO 68 (It is determined for window profile - montage with window template). The hinge is adjustable in three directions, high durability (it was tested for 1 million cycles). Plug is secured against slipping by security screw. Set contains 3 hinges (2x "H", 1x "V"). In case of doors higher than 2000 mm or wider than 1000 mm we recommend adding 4th hinge ("V") which is available separately.

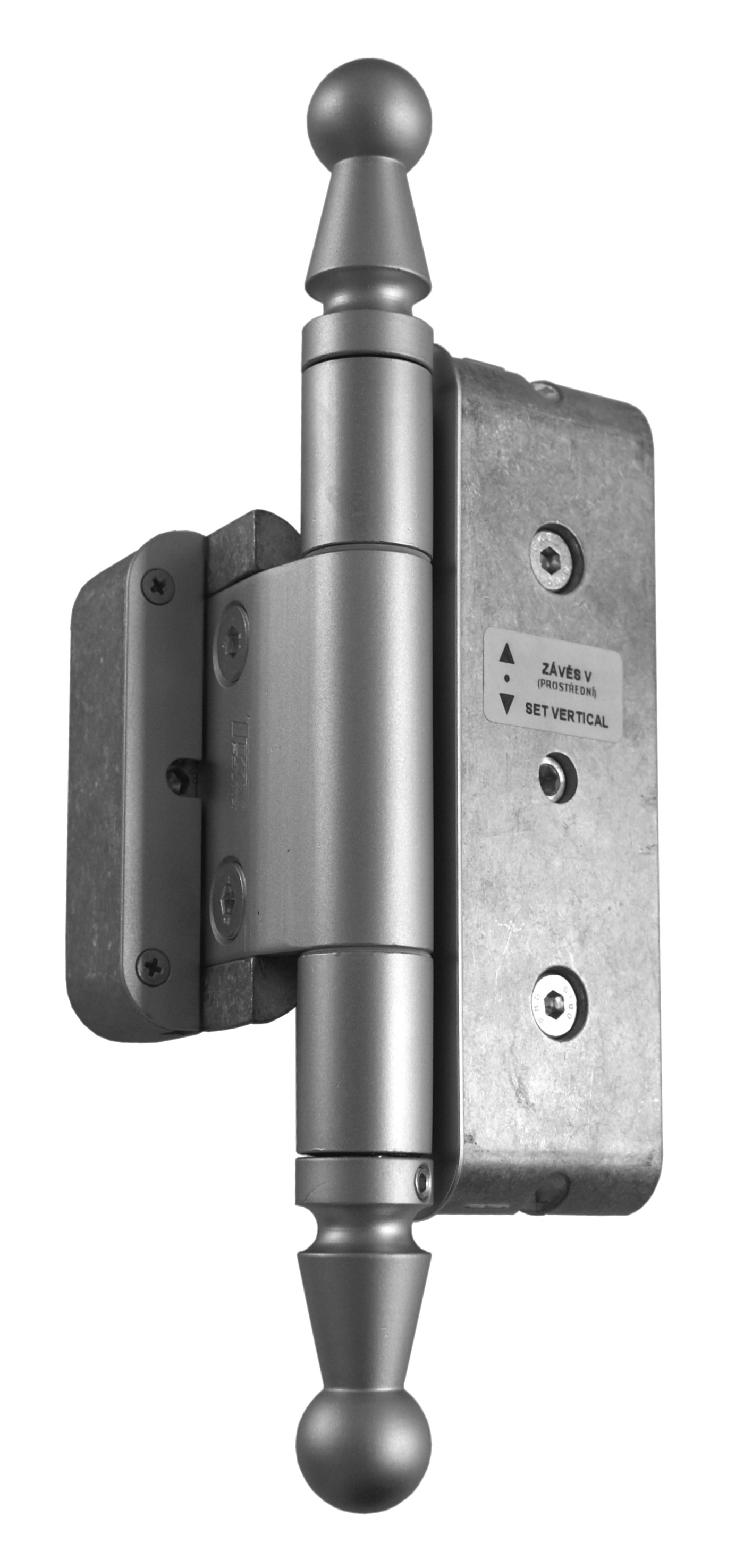

99F3

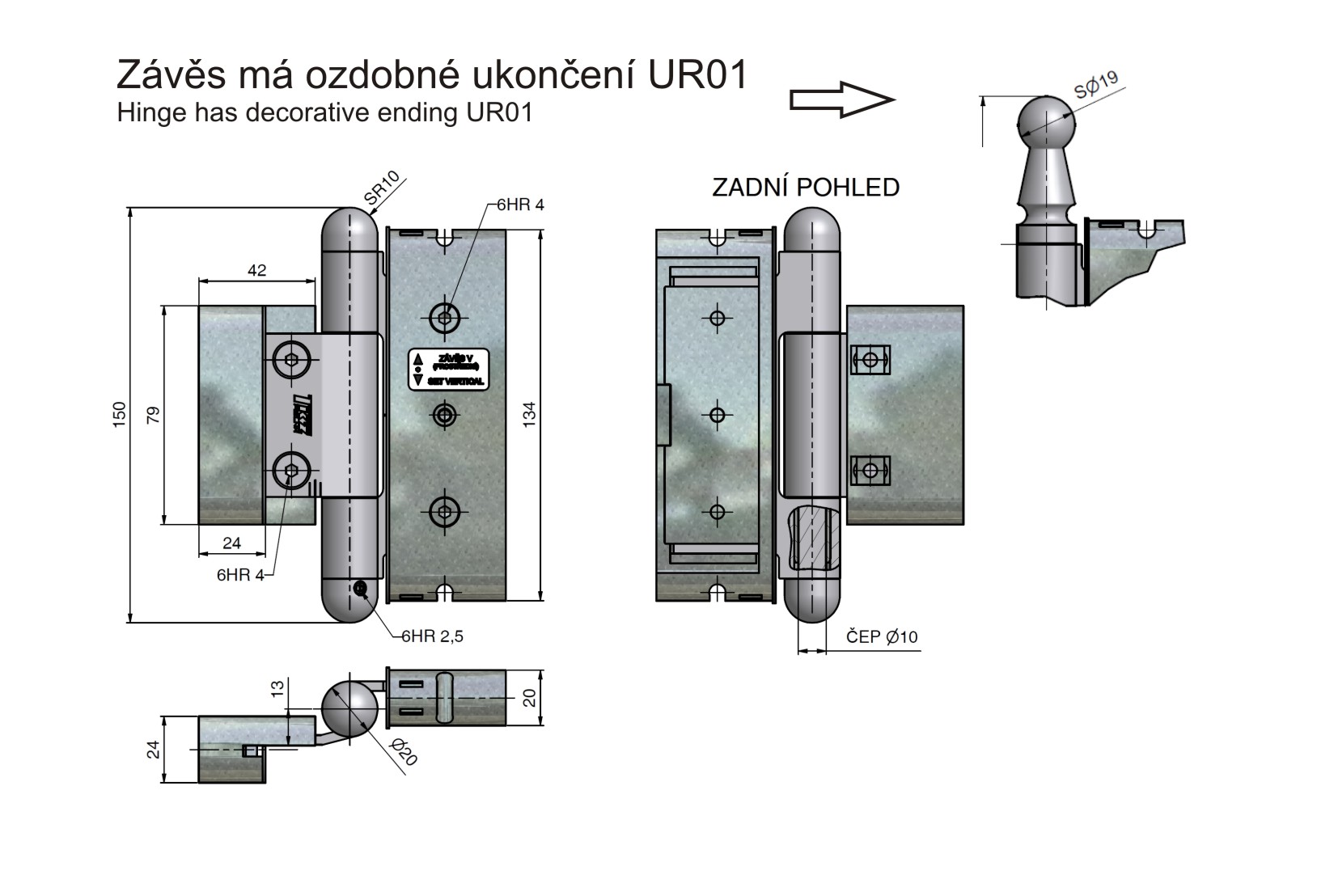

2-99E2_99F33D%20lomeny%20UR01

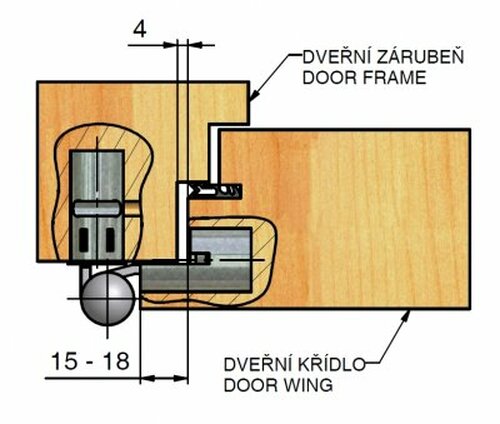

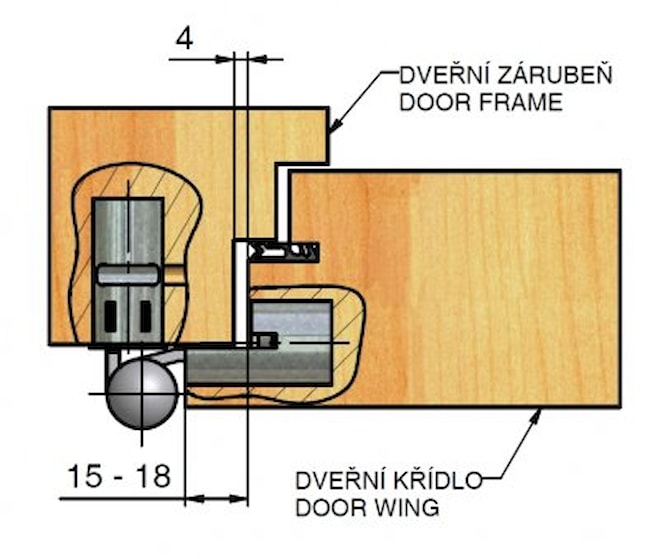

Hinge forging

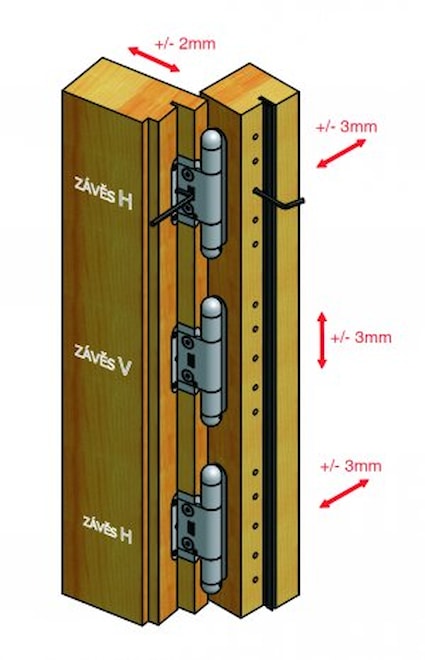

Hinge adjustable

Available variants

code type package size without VAT / MJ* incl. VAT / MJ* demand
code: 55852890 name: Brass plated shiny Action package size: 1 set without VAT / MJ*: €108.09 incl. VAT / MJ*: €130.79 Action
code: 55856J40 name: Black lacquer RAL9005 Action package size: 1 set without VAT / MJ*: €108.09 incl. VAT / MJ*: €130.79 Action
code: 55856JC0 name: White lacquer RAL9010 Action package size: 1 set without VAT / MJ*: €108.09 incl. VAT / MJ*: €130.79 Action
code: 55858K90 name: Old brass swept Action package size: 1 set without VAT / MJ*: €108.09 incl. VAT / MJ*: €130.79 Action

*Prices for MJ = for 1 piece (or 1 set)are indicative. When purchasing a smaller quantity than the package, a surcharge of up to 10% of the price of the goods may be charged.

Available variants

code name package size without VAT / MJ* incl. VAT / MJ*
code: 55852890 name: Brass plated shiny package size: 1 sets without VAT / MJ*: €108.09 incl. VAT / MJ*: €130.79
code: 55856J40 name: Black lacquer RAL9005 package size: 1 sets without VAT / MJ*: €108.09 incl. VAT / MJ*: €130.79
code: 55856JC0 name: White lacquer RAL9010 package size: 1 sets without VAT / MJ*: €108.09 incl. VAT / MJ*: €130.79
code: 55858K90 name: Old brass swept package size: 1 sets without VAT / MJ*: €108.09 incl. VAT / MJ*: €130.79

*Prices for MJ = for 1 piece (or 1 set)are indicative. When purchasing a smaller quantity than the package, a surcharge of up to 10% of the price of the goods may be charged.
