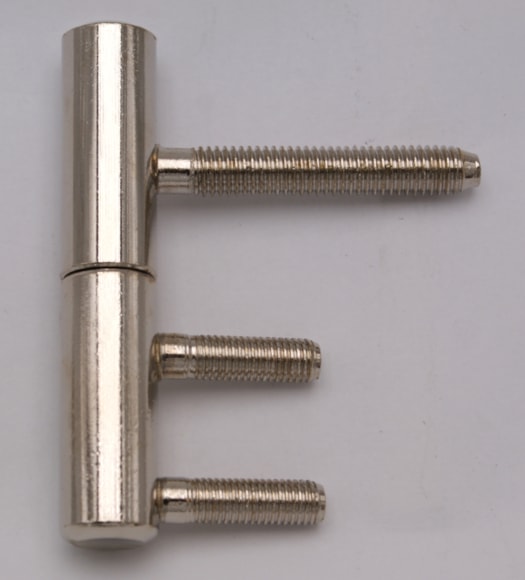

Door hinge 80/10 M8 22/M7x25 Nickel shiny
Available variants
For turning connection of rebated wooden door with casing steel frame. (lower part - into hinge holder OKZ 22/7 PH).
Catalog number | 58968700 |
Load | 20.00 |
Type of hinge | Complete hinge |
Door | Interior |
Orientation of door or window | For right and left door (frame) |
According to material of door leaf | Wood |
According to door execution | Rebate |
According to doorframe | Casing of steel frame (OKZ) |
Ending | Without decorative ending |
Main material | Steel |
Fire resistance | no |
Gripping upper part | Screw in |
Gripping lowwer part | Into fixing element |
Diameter of bolt rivet(s) | M7 a M8 |
Plug high | 25,8 mm |
Czech product | Yes |
Catalog number | 58968700 |
Load | 20.00 |
Type of hinge | Complete hinge |
Door | Interior |
Orientation of door or window | For right and left door (frame) |
According to material of door leaf | Wood |
According to door execution | Rebate |
According to doorframe | Casing of steel frame (OKZ) |
Ending | Without decorative ending |
Main material | Steel |
Fire resistance | no |
Gripping upper part | Screw in |
Gripping lowwer part | Into fixing element |
Diameter of bolt rivet(s) | M7 a M8 |
Plug high | 25,8 mm |
Czech product | Yes |
Door hinge 80/10 M8 22/M7x25 Nickel shiny
For turning connection of rebated wooden door with casing steel frame. (lower part - into hinge holder OKZ 22/7 PH).
