• Catalog sheet
    5896

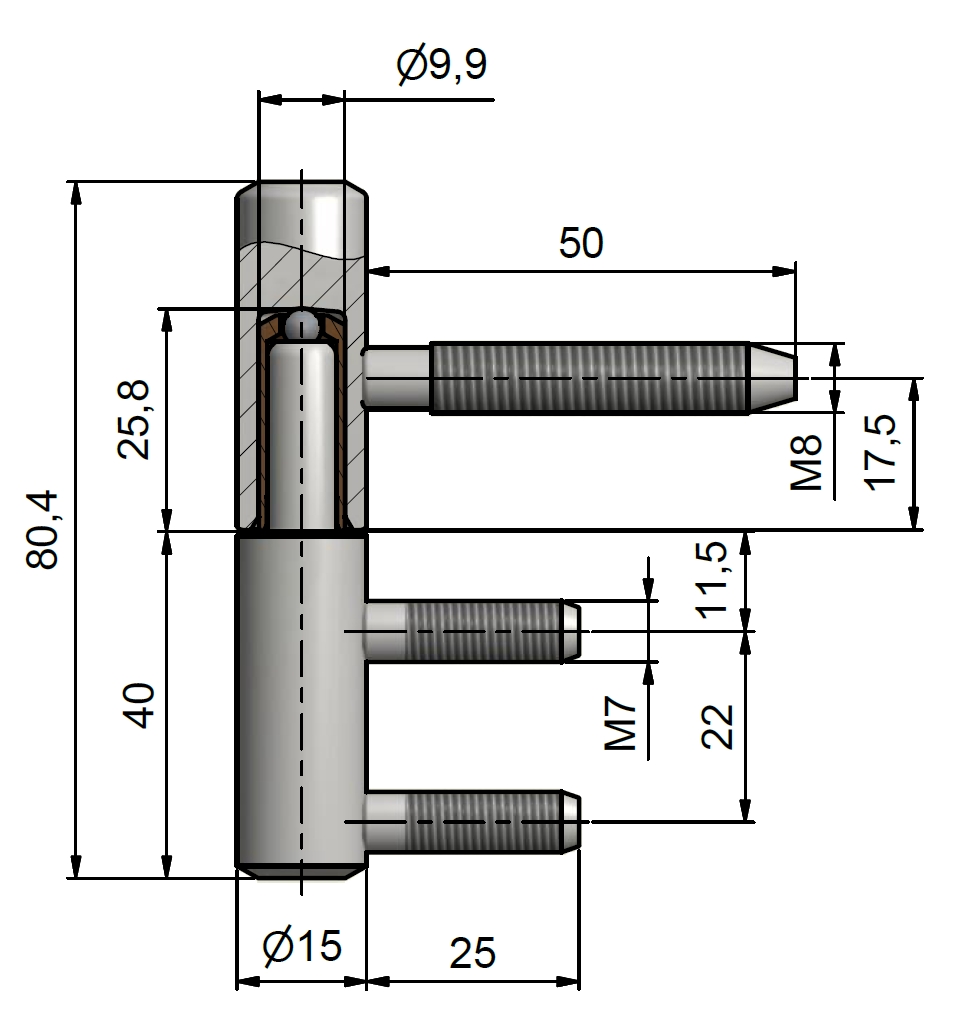

    Drawing

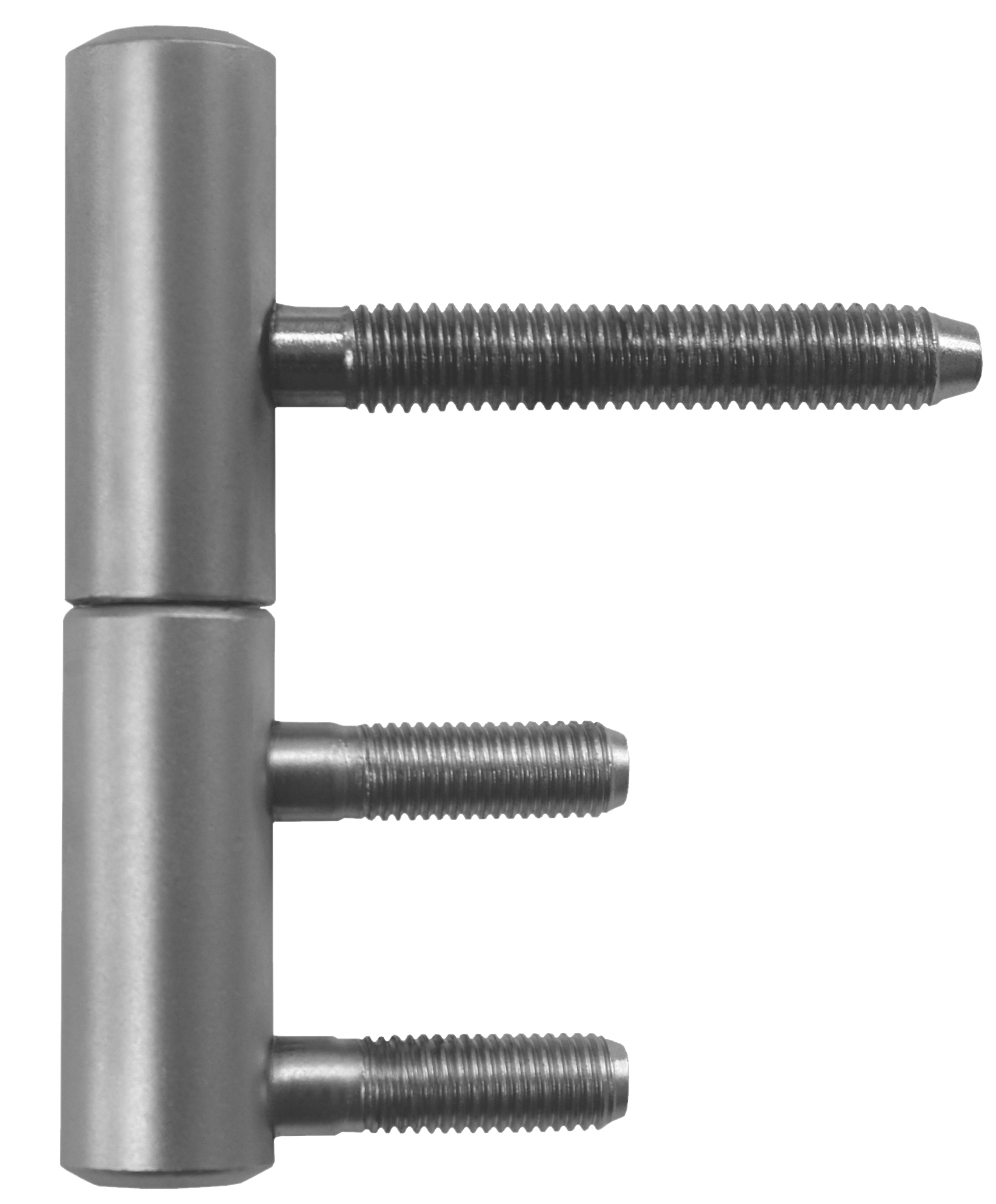

    Door hinge 80/10 M8 22/M7x25

    Catalog number 5896
    Load 20.00
    Type of hinge Complete hinge
    Door Interior
    Orientation of door or window For right and left door (frame)
    According to material of door leaf Wood
    According to door execution Rebate
    According to doorframe Casing of steel frame (OKZ)
    Ending Without decorative ending
    Main material Steel
    Fire resistance no
    Gripping upper part Screw in
    Gripping lowwer part Into fixing element
    Diameter of bolt rivet(s) M7 a M8
    Plug high 25,8 mm
    Czech product Yes

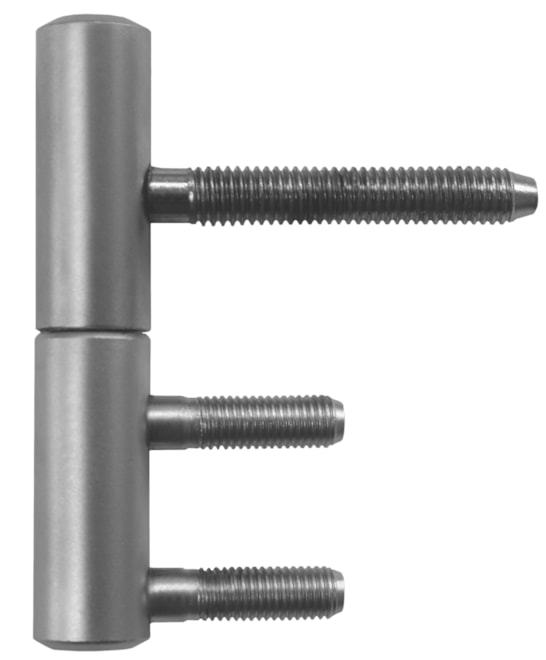

    5896

    Drawing

    Available variants

    cover Code type package size without VAT / MJ* incl. VAT / MJ* demand
    detail
    		Code: 58963370 name: Antic lacquer RAL09/90200 package size: 100 pcs without VAT / MJ*: € 2.50 incl. VAT / MJ*: € 3.03
    detail
    		Code: 58968700 name: Nickel shiny package size: 100 pcs without VAT / MJ*: € 2.75 incl. VAT / MJ*: € 3.33
    detail
    		Code: 58968D00 name: Nickel satin package size: 100 pcs without VAT / MJ*: € 3.34 incl. VAT / MJ*: € 4.04

    No item matches your selection.

    *Prices for MJ =for 1 piece (or 1 set)are indicative. When purchasing a smaller quantity than the package, a surcharge of up to 10% of the price of the goods may be charged.

    UPON REQUEST variants – when ordering less than 100 pcs – extra charge 10%.

    For turning connection of rebated wooden door with casing steel frame. (lower part - into hinge holder OKZ 22/7 PH).
