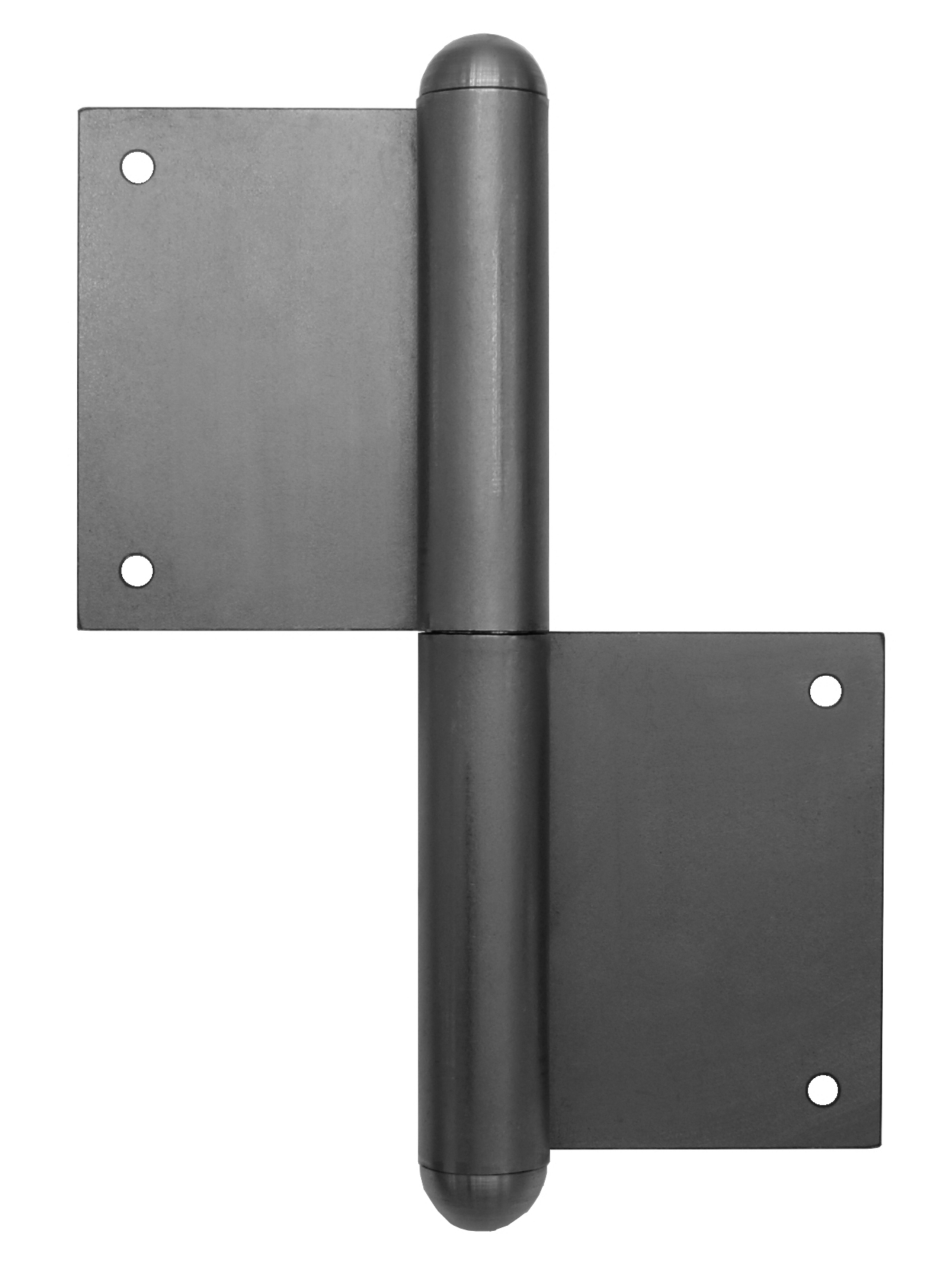

Door hinge 150 UR25 R

Name: Door hinge 150 UR25 R
SKU: 99G24601.
Price: 20.84 EUR
Availability: InStock

cat. no.: 99G24601.

Load: 30.00

Type of hinge: Complete hinge

Door: Interior, Exterior

Orientation of door or window: For right door (frame)

According to material of door leaf: Wood

According to door execution: Rebate

According to doorframe: Solid wood

Ending: Semiround ending UR25

Main material: Steel

Fire resistance: no

Gripping: Mortising

Plug high: 25 mm

Czech product: Yes

print cat. sheet

Download:

Sampler of surface finishes and symbols used in the catalogue

Use

Hinge for turning connection of door and wooden frame. Upper and lower parts are mortised and secured by nails without head. Plug of the hinge is provided with decorative ending UR25. Suitable for reconstruction of old doors. Surface finish and different decorative ending - upon request.

99G24601.

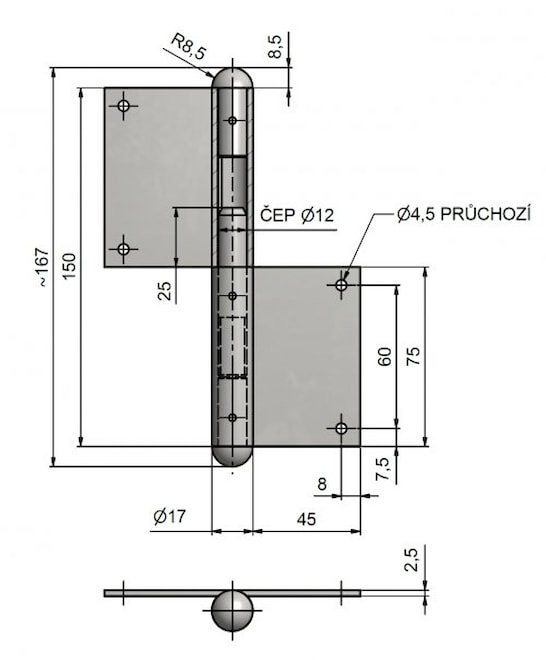

Drawing

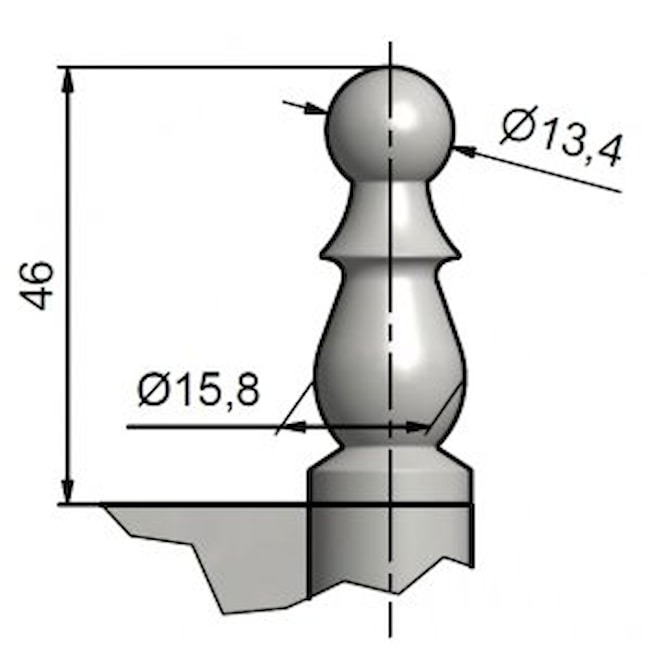

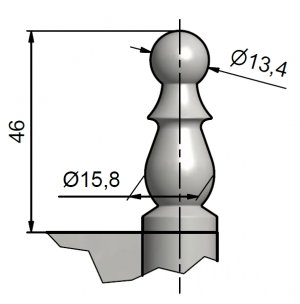

decorative ending UR31

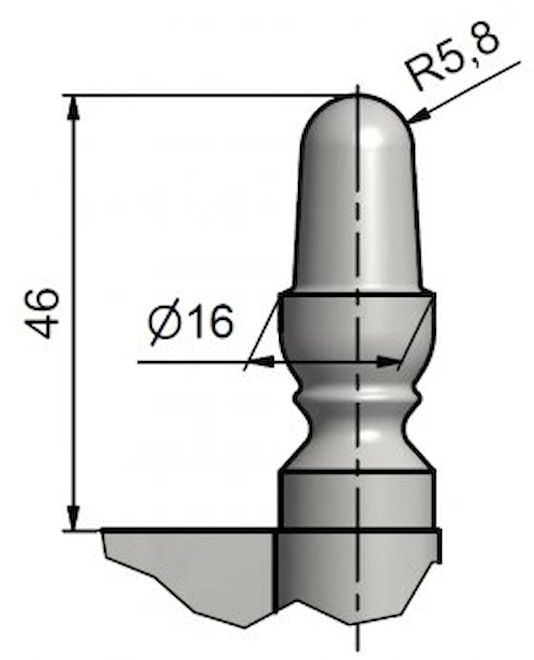

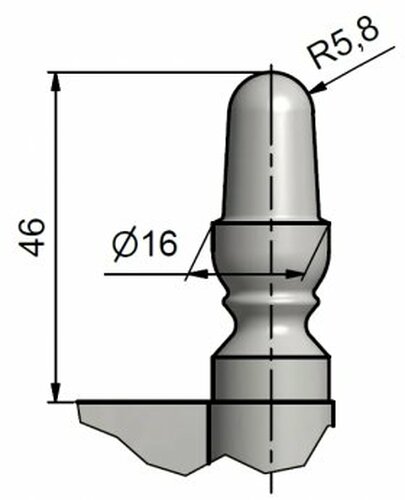

decorative ending UR65

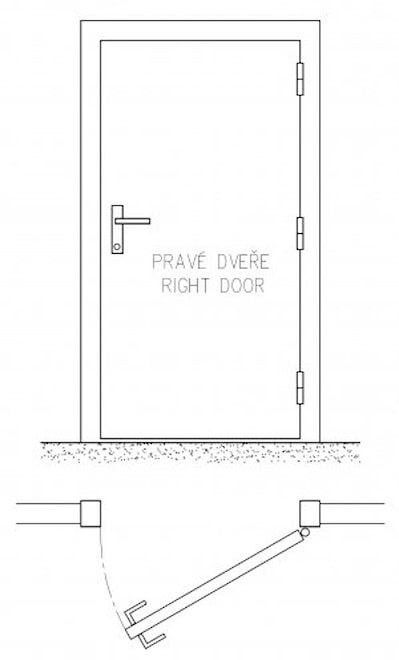

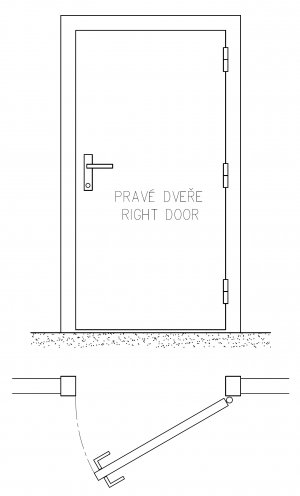

right door

Available variants

	code	type	package size	without VAT / MJ*	incl. VAT / MJ*	demand
	code: 99G24601	name: Without surface finish	package size: 15 pcs	without VAT / MJ*: €17.22	incl. VAT / MJ*: €20.84

*Prices for MJ = for 1 piece (or 1 set)are indicative. When purchasing a smaller quantity than the package, a surcharge of up to 10% of the price of the goods may be charged.

Available variants

	code	name	package size	without VAT / MJ*	incl. VAT / MJ*
	code: 99G24601	name: Without surface finish	package size: 15 pcs	without VAT / MJ*: €17.22	incl. VAT / MJ*: €20.84

*Prices for MJ = for 1 piece (or 1 set)are indicative. When purchasing a smaller quantity than the package, a surcharge of up to 10% of the price of the goods may be charged.
