• Catalog sheet

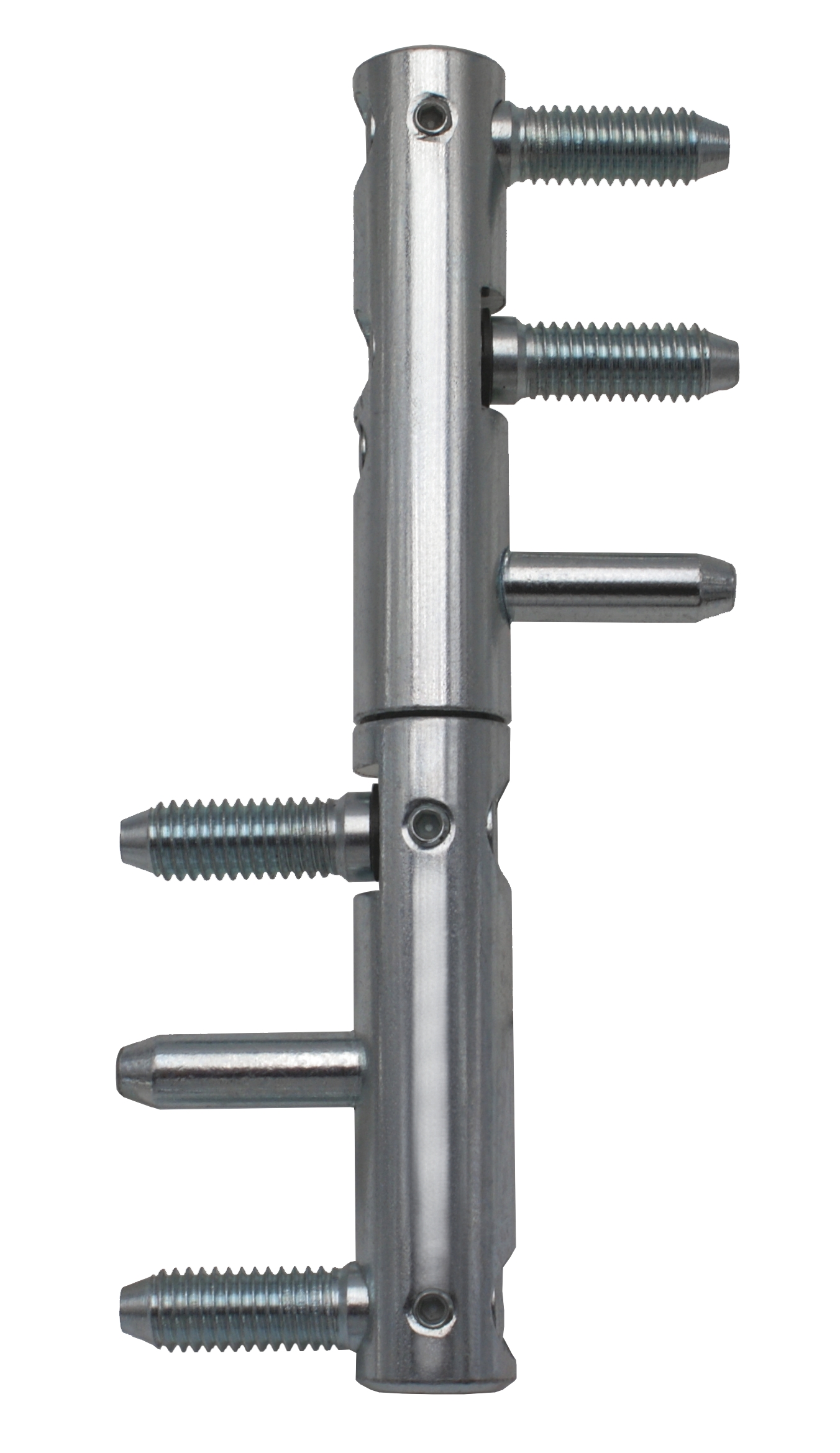

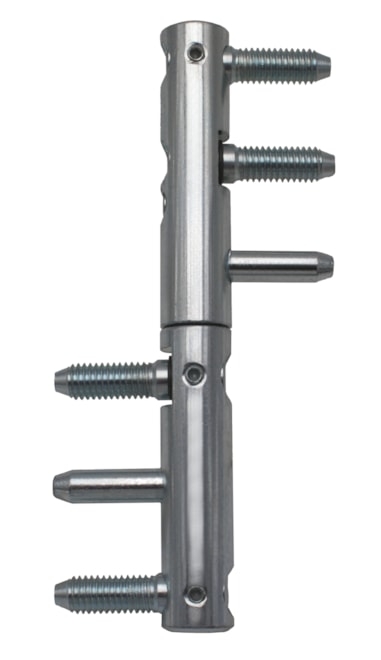

    Hinge TRIO 15 MAX M8 PH BZ Blue zinc

    Catalog number 55160530
    Load 50.00
    Type of hinge Complete hinge
    Door Interior , Exterior
    Orientation of door or window For right and left door (frame)
    According to material of door leaf Metal
    According to door execution Rebate
    According to doorframe Metal
    Ending Without decorative ending
    Main material Steel
    Fire resistance yes (appropriate for fire protection testing)
    Gripping lowwer part Into fixing element
    Diameter of bolt rivet(s) M8
    Bolt(s) lenght 22 mm
    Plug high 19,5 mm
    Czech product Yes

    Hinge TRIO 15 MAX M8 PH BZ Blue zinc

    Available variants

    cover Code type package size without VAT / MJ* incl. VAT / MJ* demand
    Code: 55160530 name: Blue zinc New package size: 20 pcs without VAT / MJ*: 7.50 incl. VAT / MJ*: 9.08

    No item matches your selection.

    *Prices for MJ =for 1 piece (or 1 set)are indicative. When purchasing a smaller quantity than the package, a surcharge of up to 10% of the price of the goods may be charged.

    UPON REQUEST variants – when ordering less than 100 pcs – extra charge 10%.

    3D adjustable door hinge with protection against getting unscrewed suitable for interior and lighter entrance metal doors with metal door frame.

    Hinges are suitable for doors with self-clossing equipment: Self-closing equipment without the end stop requires hinges rated for a door 20% heavier than its actual weight.
    This effect is even higher for self-closing equipment with the end stop, for which the door‘s effi cient weight is to be increased by 75%.

    The hinge is appropriate for fire protection testing. Warning: The fire-protection hinges have to be tested within the entire set, i.e., together with the door and the frame!
