• Catalog sheet

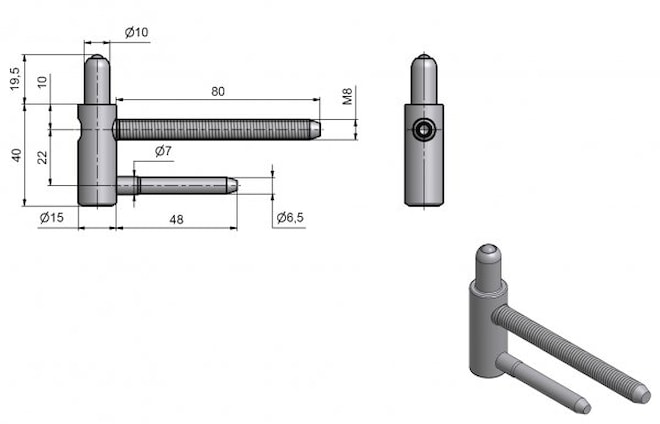

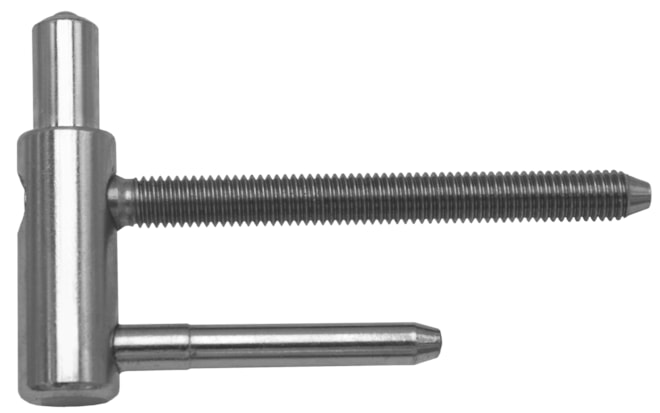

    Door hinge TRIO 15 SD M8x80

    Catalog number 6955
    Load 40.00
    Type of hinge Lower part
    Door Interior
    Orientation of door or window For right and left door (frame)
    According to door execution Rebate
    According to doorframe Solid wood , Metal
    Ending Without decorative ending
    Main material Steel
    Fire resistance yes (appropriate for fire protection testing)
    Gripping lowwer part Screw in
    Diameter of bolt rivet(s) M8
    Bolt(s) lenght 80 mm
    Plug high 19,5 mm
    Czech product Yes



    Available variants

    cover Code type package size without VAT / MJ* incl. VAT / MJ* demand
    Code: 69550700 name: Nickel shiny package size: 50 pcs without VAT / MJ*: 2.50 incl. VAT / MJ*: 3.03
    Code: 69555510 name: Yellow zinc package size: 50 pcs without VAT / MJ*: 1.83 incl. VAT / MJ*: 2.22
    Code: 69555530 name: Blue zinc package size: 50 pcs without VAT / MJ*: 1.83 incl. VAT / MJ*: 2.22

    No item matches your selection.

    *Prices for MJ =for 1 piece (or 1 set)are indicative. When purchasing a smaller quantity than the package, a surcharge of up to 10% of the price of the goods may be charged.

    UPON REQUEST variants – when ordering less than 100 pcs – extra charge 10%.

    Lower part of hinge TRIO 15 is into wooden and steel frame. Complete hinge is adjustable in three directions.

    The hinge is appropriate for fire protection testing. Warning: The fire-protection hinges have to be tested within the entire set, i.e., together with the door and the frame!

    There is a possibility to use decorative caps on hinges.
