• Catalog sheet

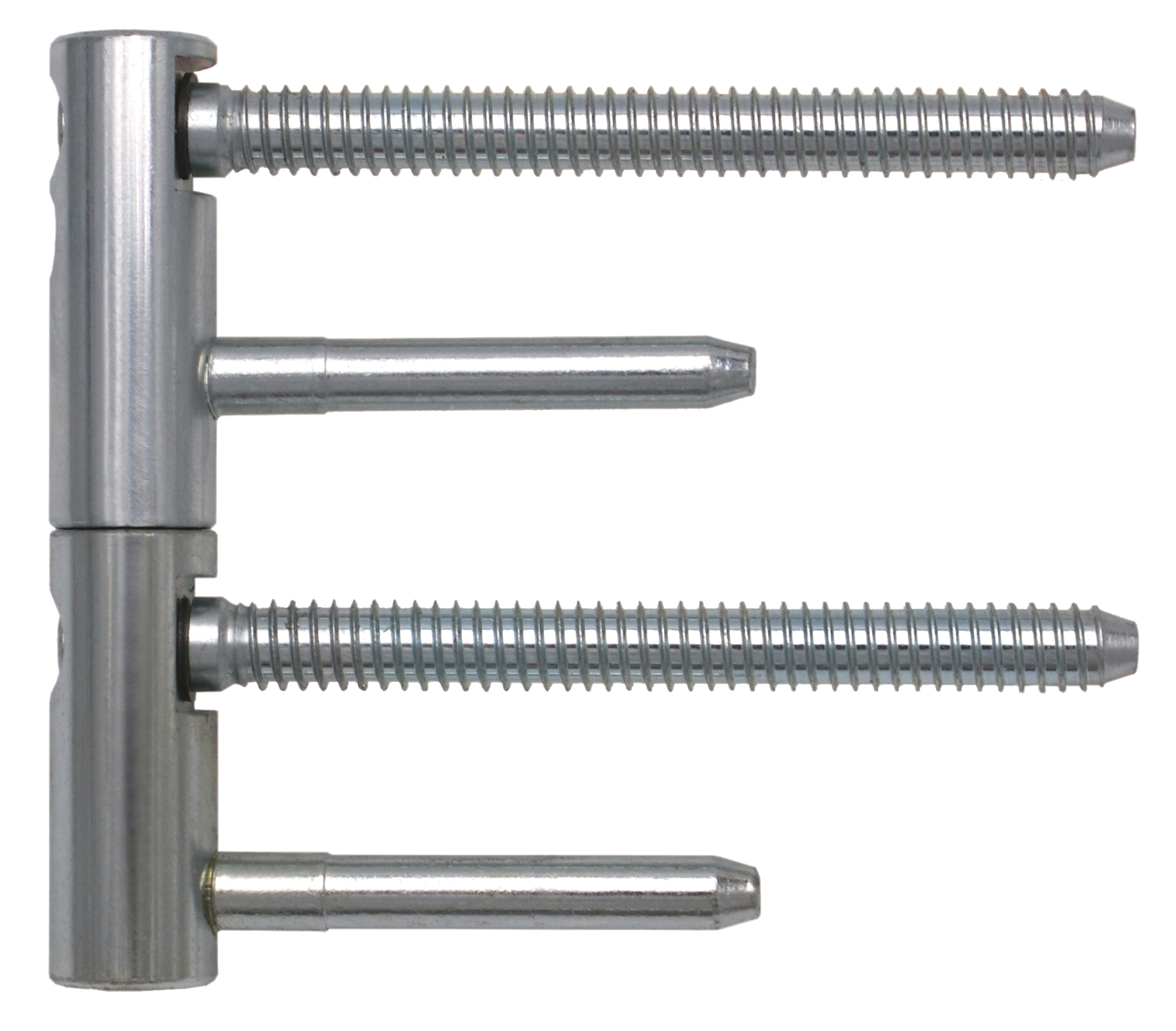

    Door hinge TRIO 15 PYRO 3 TR EI 60 DZ PH Blue zinc

    Catalog number 54490530
    Load 40.00
    Type of hinge Complete hinge
    Door Interior
    Orientation of door or window For right and left door (frame)
    According to material of door leaf Wood
    According to door execution Rebate
    According to doorframe Solid wood
    Ending Without decorative ending
    Main material Steel
    Fire resistance yes (appropriate for fire protection testing)
    Gripping Screw in
    Diameter of bolt rivet(s) Special screw-thread into wood ø 8
    Bolt(s) lenght 80,5 mm
    Plug high 19,5 mm
    Czech product Yes

    Door hinge TRIO 15 PYRO 3 TR EI 60 DZ PH Blue zinc

    Available variants

    cover Code type package size without VAT / MJ* incl. VAT / MJ* demand
    Code: 54490530 name: Blue zinc package size: 25 pcs without VAT / MJ*: 8.09 incl. VAT / MJ*: 9.79

    No item matches your selection.

    *Prices for MJ =for 1 piece (or 1 set)are indicative. When purchasing a smaller quantity than the package, a surcharge of up to 10% of the price of the goods may be charged.

    UPON REQUEST variants – when ordering less than 100 pcs – extra charge 10%.

    Complete hinge TRIO PYRO adjustable in three directions.

    The hinge is appropriate for fire protection testing. Warning: The fire-protection hinges have to be tested within the entire set, i.e., together with the door and the frame!

     There is a possibility to decorate hinge by caps.
