• Catalog sheet

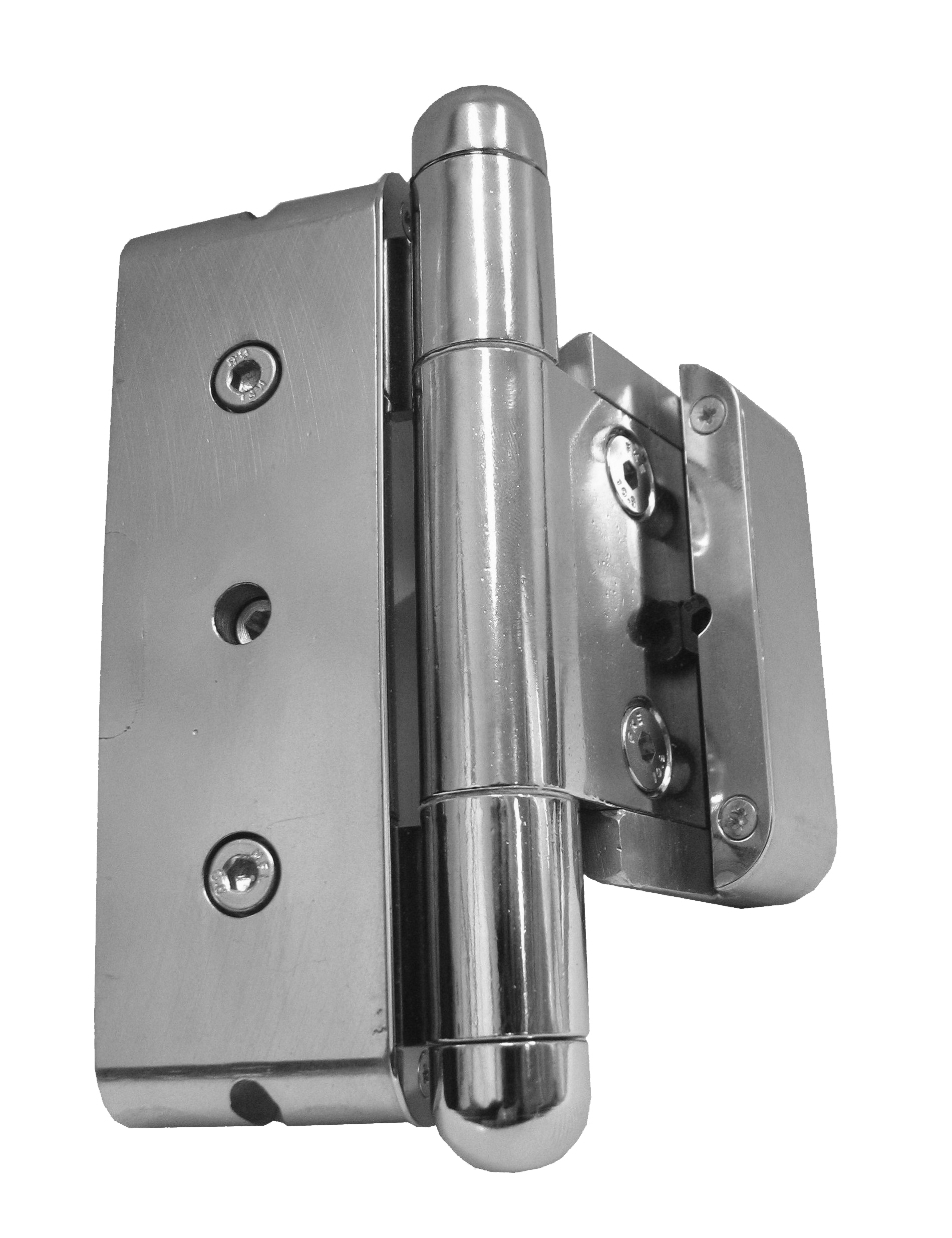

Door hinge GEMMA 55 - 20/18 UR61 S3

Catalog number 5572
Load 56.00
Type of hinge Complete hinge
Door Exterior
Orientation of door or window For right and left door (frame)
According to material of door leaf Wood
According to door execution Rebate
According to doorframe Solid wood
Ending Semiround ending UR25
Main material Alloy ZAMAK and steel
Fire resistance no
Gripping Special
Czech product Yes

5572

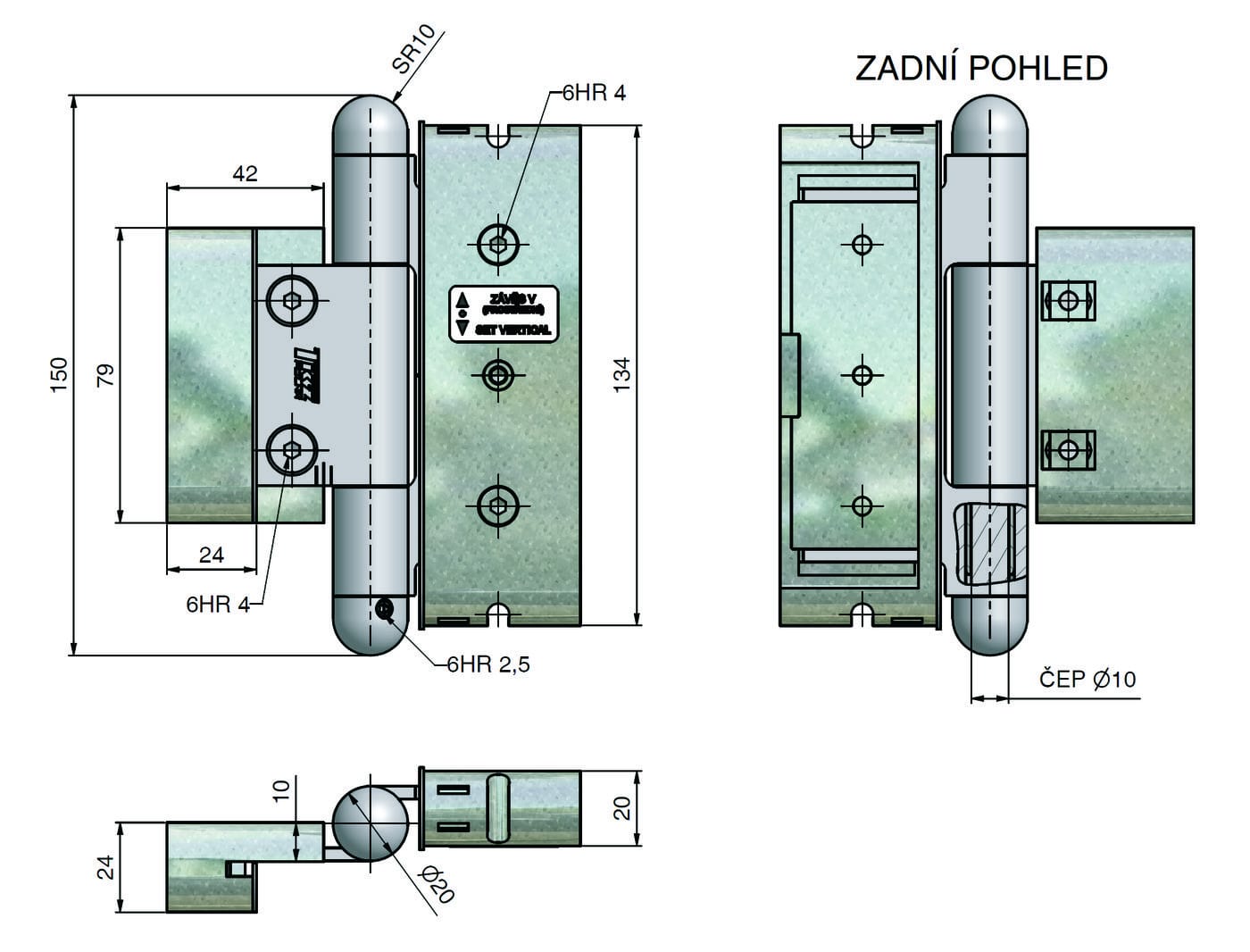

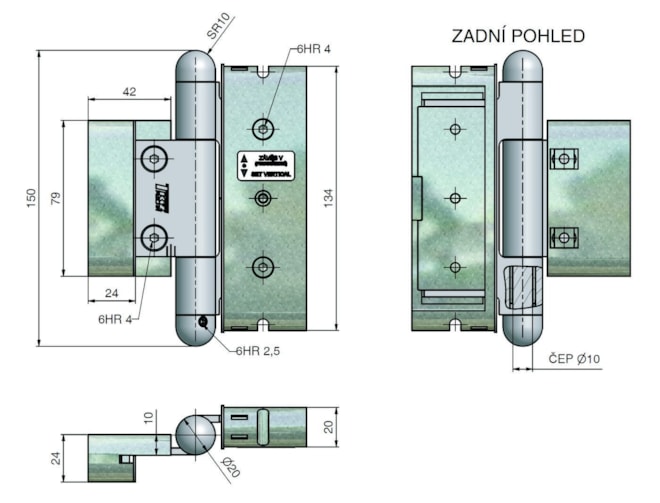

Drawing

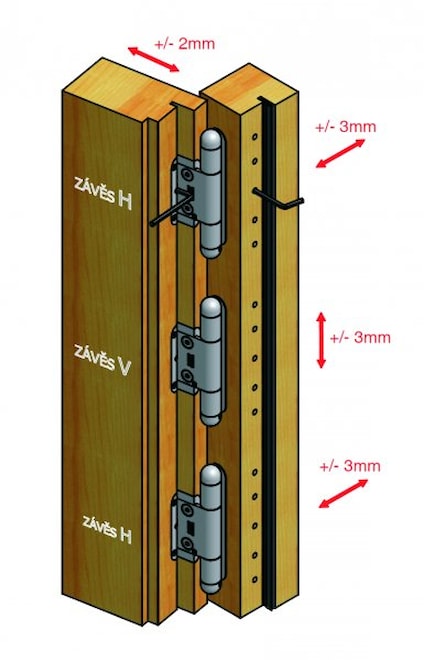

Hinge regulation

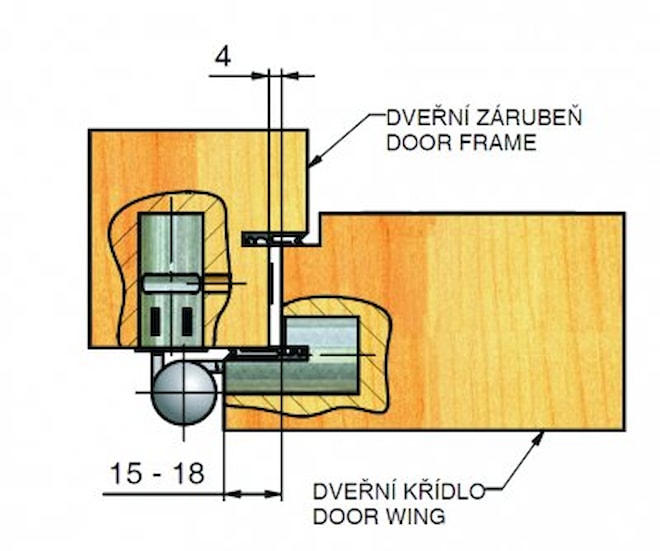

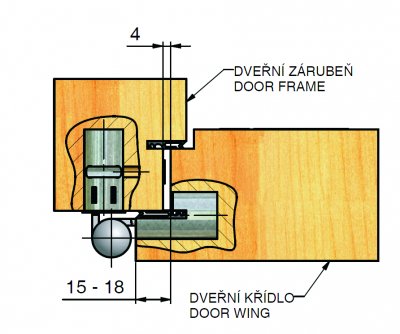

Hinge forging

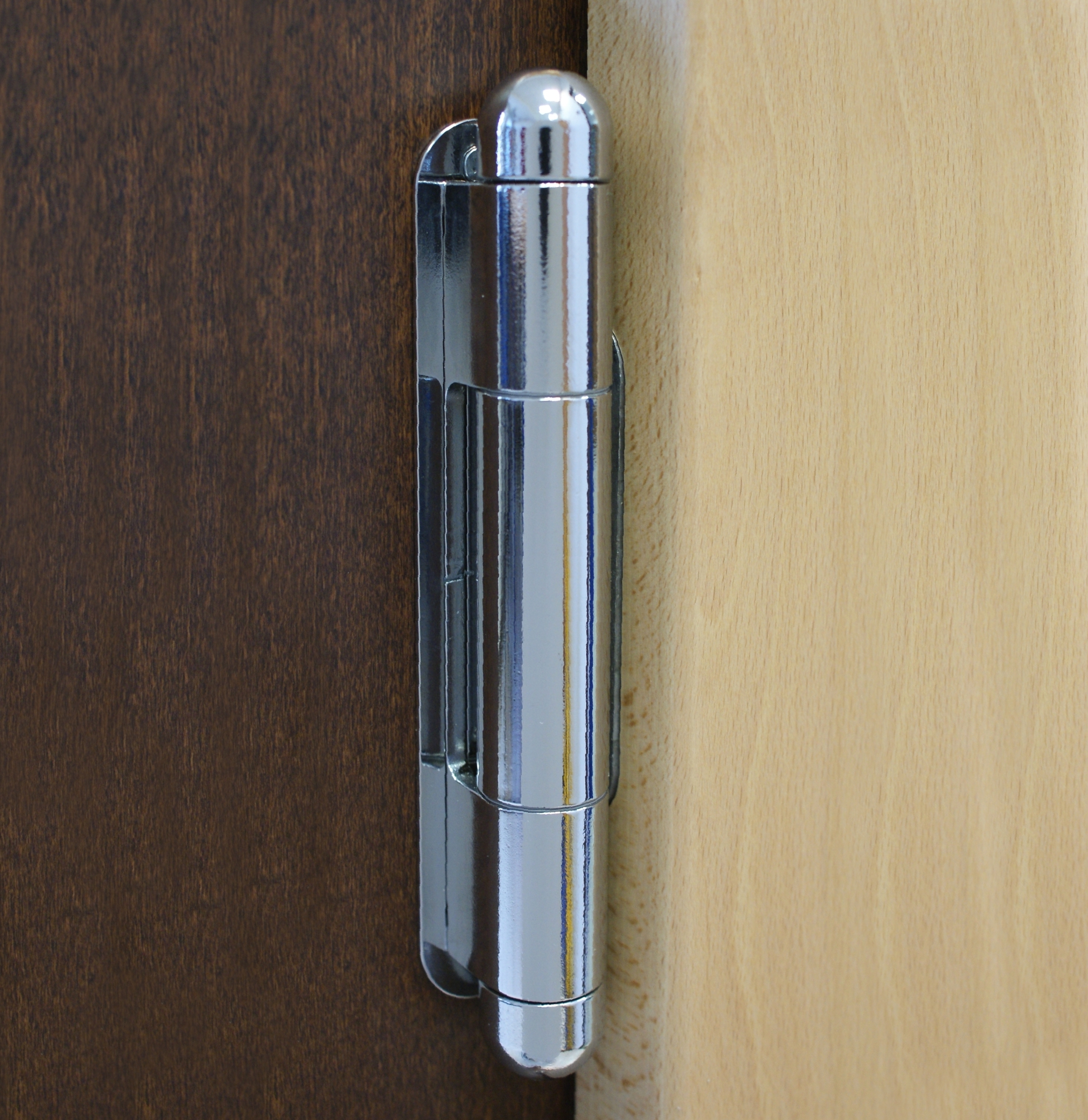

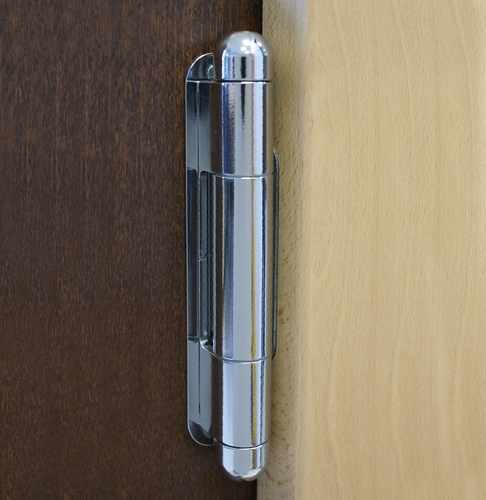

5-5572%20CR%20zakovan%C3%BD_b

Available variants

cover Code type package size without VAT / MJ* incl. VAT / MJ* demand
detail
Code: 55722890 name: Brass plated shiny Action package size: 1x set without VAT / MJ*: € 98.72 incl. VAT / MJ*: € 119.45
detail
Code: 55726G00 name: Bronze satin Action package size: 1x set without VAT / MJ*: € 98.72 incl. VAT / MJ*: € 119.45
detail
Code: 55726J40 name: Black lacquer RAL9005 Action package size: 1x set without VAT / MJ*: € 92.30 incl. VAT / MJ*: € 111.68
detail
Code: 55726JC0 name: White lacquer RAL9010 Action package size: 1x set without VAT / MJ*: € 92.30 incl. VAT / MJ*: € 111.68
detail
Code: 55728C00 name: Chrome shiny Action package size: 1x set without VAT / MJ*: € 92.30 incl. VAT / MJ*: € 111.68
detail
Code: 55728E00 name: Chrome satin Action package size: 1x set without VAT / MJ*: € 96.61 incl. VAT / MJ*: € 116.90
detail
Code: 55728K90 name: Old brass swept Action package size: 1x set without VAT / MJ*: € 98.72 incl. VAT / MJ*: € 119.45

No item matches your selection.

*Prices for MJ =for 1 piece (or 1 set)are indicative. When purchasing a smaller quantity than the package, a surcharge of up to 10% of the price of the goods may be charged.

UPON REQUEST variants – when ordering less than 100 pcs – extra charge 10%.

Elegant solution for your exterior doors with rabbet 15 - 18 mm, especially for profile EURO 68 (It is determined for door profile - montage with door template). The hinge is adjustable in three directions, high durability (it was tested for 1 million cycles). Plug is secured against slipping by security screw. Certified fire resistant hinges! Set contains 3 hinges (2x "H", 1x "V"). In case of doors higher than 2000 mm or wider than 1000 mm we recommend adding 4th hinge ("V") which is available separately.
