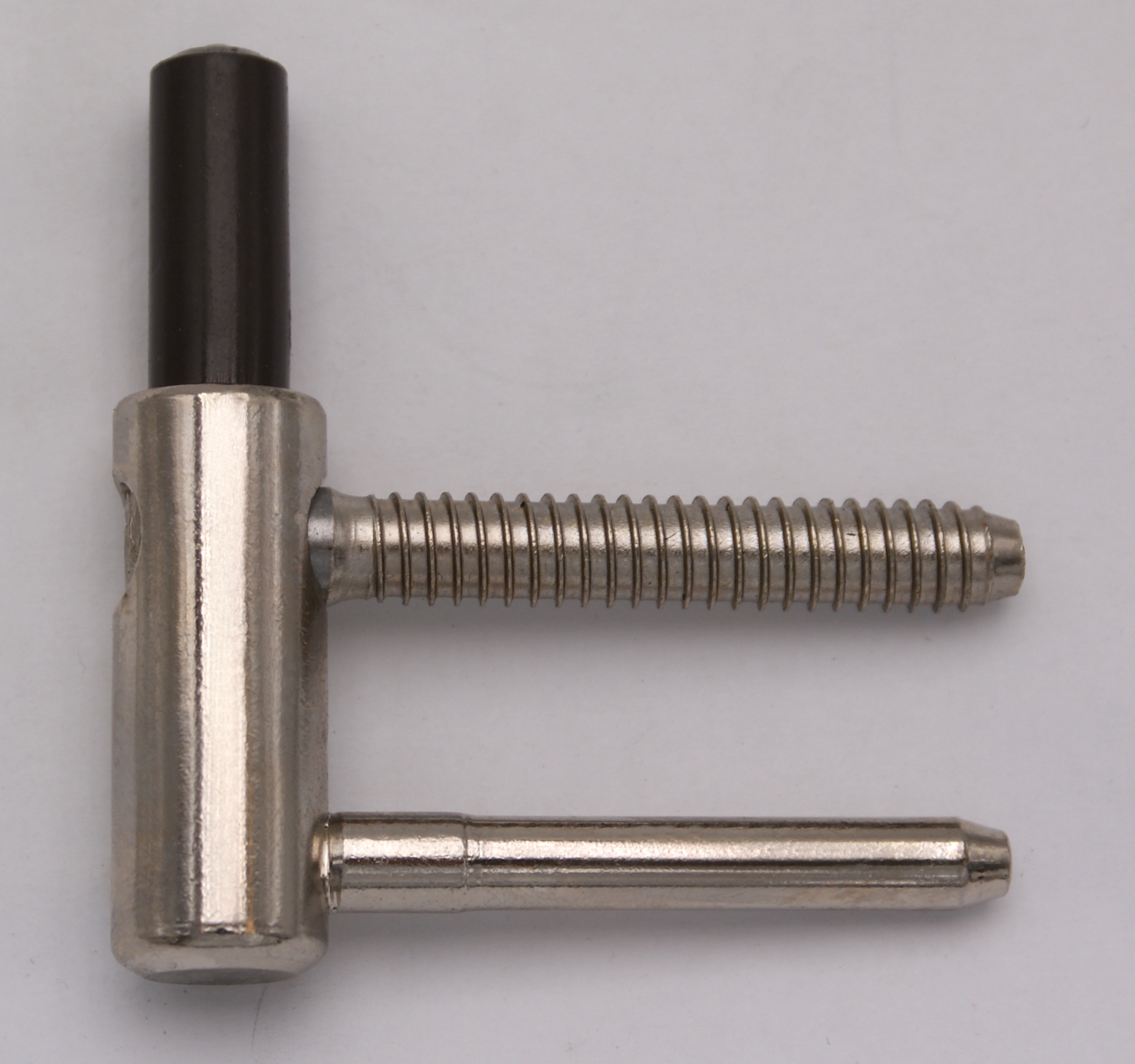

Door hinge 80/10 SD 8x50 TR PH Nickel shiny

cat. no.: 54508700

Load: 20.00
Type of hinge: Lower part
Door: Interior
Orientation of door or window: For right and left door (frame)
According to door execution: Rebate
According to doorframe: Solid wood
Ending: Without decorative ending
Main material: Steel
Fire resistance: no
Gripping lowwer part: Screw in
Diameter of bolt rivet(s): Special screw-thread into wood ø 8
Bolt(s) lenght: 49 mm
Plug high: 25,8 mm
Czech product: Yes

Use

To screw the hinge into wooden frame. (upper part can be only 80/10 VD)

Door hinge 80/10 SD 8x50 TR PH Nickel shiny

Available variants

code type package size without VAT / MJ* incl. VAT / MJ* demand
code: 54505510 name: Yellow zinc package size: 50 pcs without VAT / MJ*: €2.79 incl. VAT / MJ*: €3.38
code: 54505530 name: Blue zinc package size: 50 pcs without VAT / MJ*: €2.79 incl. VAT / MJ*: €3.38
code: 54508700 name: Nickel shiny package size: 50 pcs without VAT / MJ*: €3.30 incl. VAT / MJ*: €3.99
code: 54508D00 name: Nickel satin package size: 50 pcs without VAT / MJ*: €3.55 incl. VAT / MJ*: €4.29

*Prices for MJ = for 1 piece (or 1 set)are indicative. When purchasing a smaller quantity than the package, a surcharge of up to 10% of the price of the goods may be charged.
