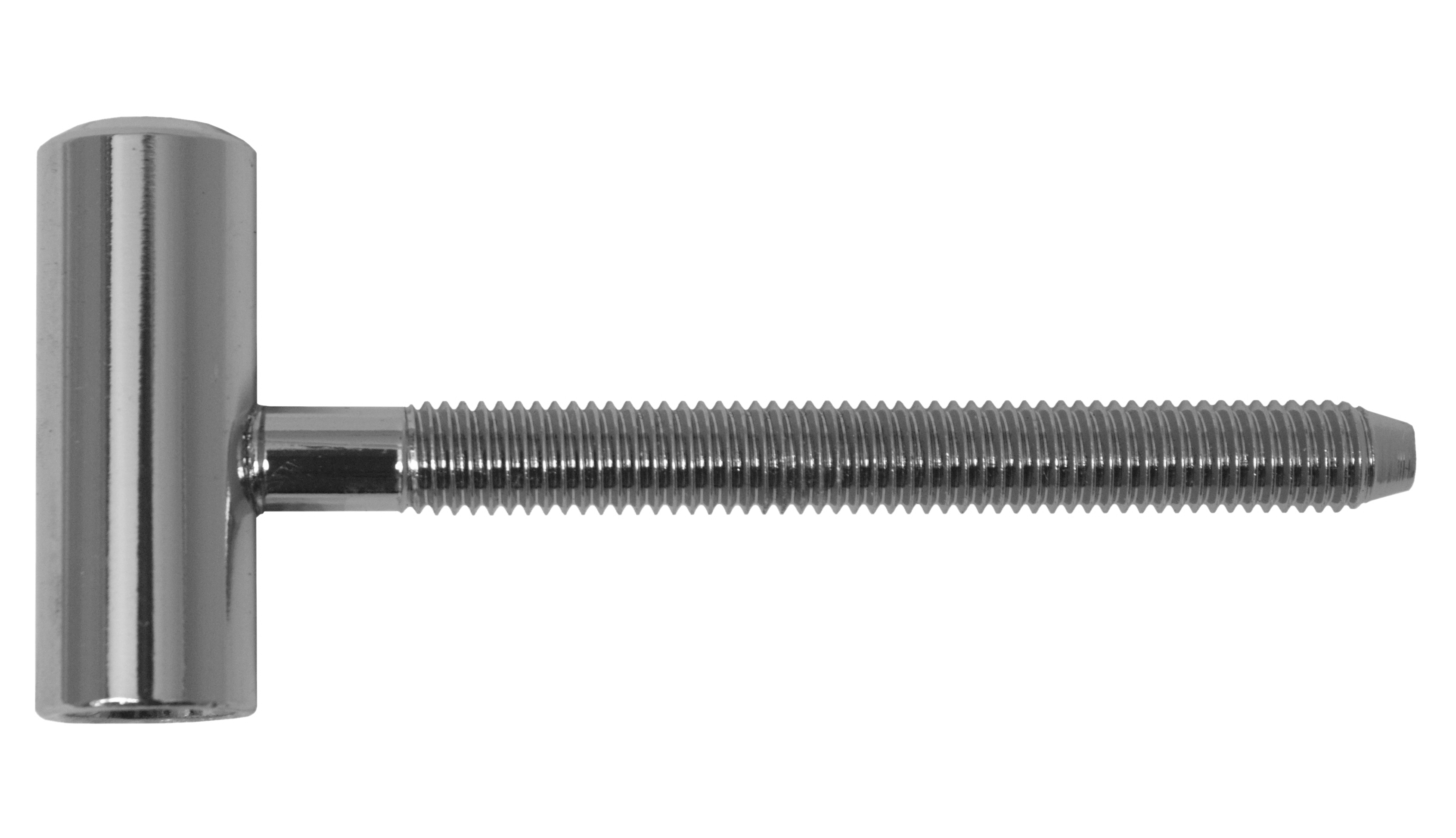

Door hinge 80/10 VD M8x80
nr kat.: 9654
Load: 20.00
Type of hinge: Upper part
Door: Interior
Orientation of door or window: For right and left door (frame)
According to material of door leaf: Wood
According to door execution: Rebate
Ending: Without decorative ending
Main material: Steel
Fire resistance: yes (appropriate for fire protection testing)
Gripping: Screw in
Diameter of bolt rivet(s): M8
Bolt(s) lenght: 80 mm
Czech product: Yes
Użycie
Upper part of hinge - into rebated wooden wing.
The hinge is appropriate for fire protection testing. Warning: The fire-protection hinges have to be tested within the entire set, i.e., together with the door and the frame!
