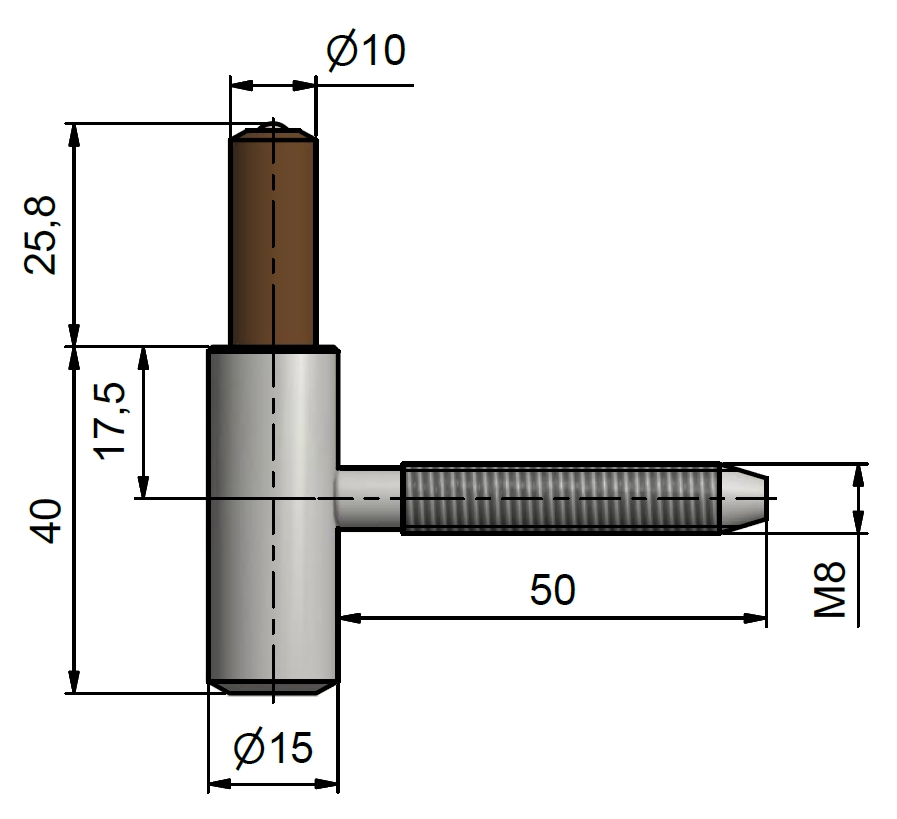

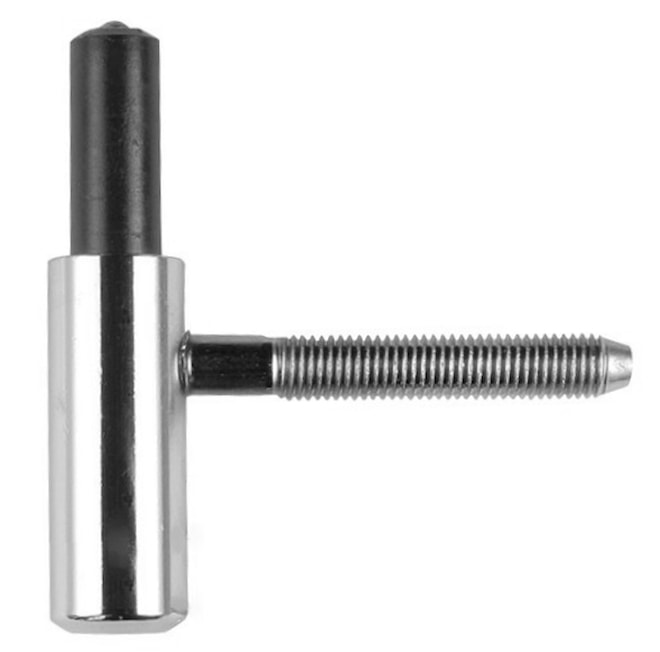

Door hinge 80/10 SD M8x50-17,5 PH
nr kat.: 5899
Load: 20.00
Type of hinge: Lower part
Door: Interior
Orientation of door or window: For right and left door (frame)
According to door execution: Rebate
According to doorframe: Solid wood
Ending: Without decorative ending
Main material: Steel
Fire resistance: no
Gripping: Screw in
Diameter of bolt rivet(s): M8
Bolt(s) lenght: 50 mm
Plug high: 25,8 mm
Czech product: Yes
Użycie
Lower part of hinge is into wooden frame. Together with upper part for turning connection of door and frame.
