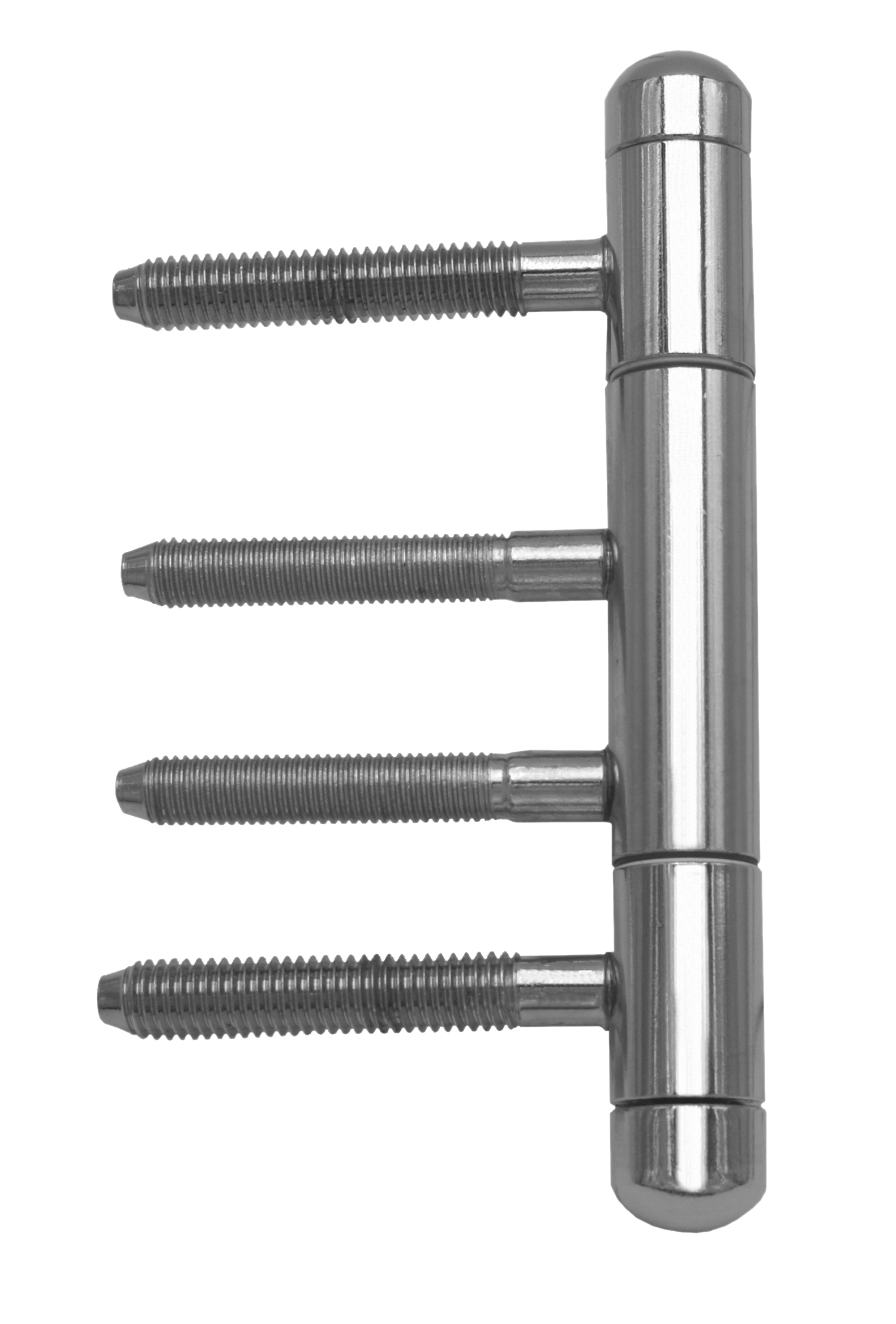

Hinge of three parts 15x90 M8 22/M7 MELODY

Numer katalogowy	9774
Load	30.00
Type of hinge	Complete hinge
Door	Interior
Orientation of door or window	For right and left door (frame)
According to material of door leaf	Wood
According to door execution	Rebate
According to doorframe	Wooden casing
Ending	Semiround (hinger) ending UR61
Fire resistance	no
Gripping upper part	Screw in
Gripping middle part	Into fixing element
Gripping lowwer part	Screw in
Diameter of bolt rivet(s)	M7 a M8
Czech product	Yes

Numer katalogowy	9774
Load	30.00
Type of hinge	Complete hinge
Door	Interior
Orientation of door or window	For right and left door (frame)
According to material of door leaf	Wood
According to door execution	Rebate
According to doorframe	Wooden casing
Ending	Semiround (hinger) ending UR61
Fire resistance	no
Gripping upper part	Screw in
Gripping middle part	Into fixing element
Gripping lowwer part	Screw in
Diameter of bolt rivet(s)	M7 a M8
Czech product	Yes

Do pobrania:

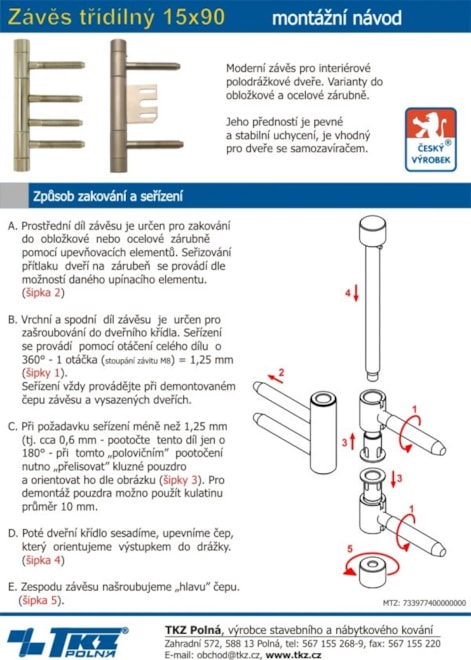

Sampler of surface finishes and symbols used in the catalogue

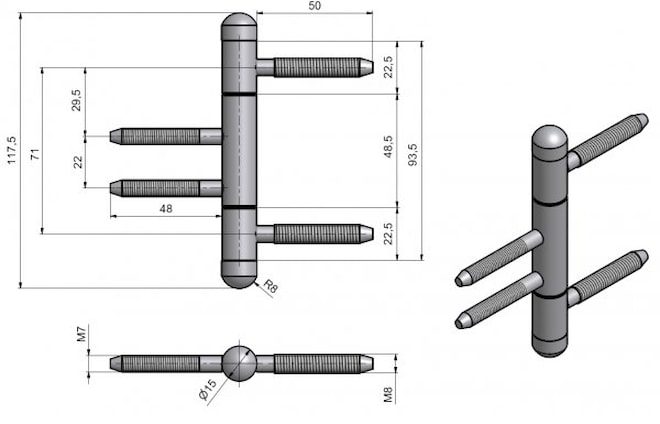

2-00002188

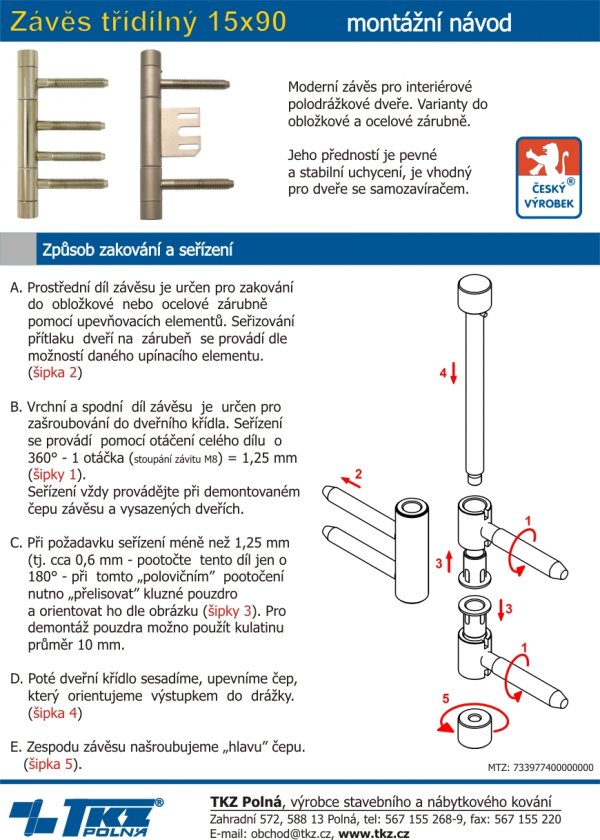

3-00003372

Dostępne warianty

id	cover	kod	typ	wielkość paczki	bez VAT / MJ*	z VAT / MJ*	zapytać
Szczegół		kod: 97742530	nazwa: Blue zinc Sale	wielkość paczki: 50 pcs	bez VAT / MJ*: 4,95 €	z VAT / MJ*: 5,99 €

Nie ma elementu pasującego do wyboru.

*Ceny za MJ = za 1 szt. (lub 1 kpl.) są orientacyjne. Przy zakupie mniejszej ilości niż opakowanie może zostać naliczona dopłata w wysokości do 10% ceny produktu.

UPON REQUEST variants – when ordering less than 100 pcs – extra charge 10%.

Hinge of three parts is for wooden doors and casing. Its perfection is in solid and stable gripping. Hinges are suitable for doors with self-closing equipment.
