Door hinge TRIO 20 BP DZ PH R
nr kat.: 9658
Load: 45.00
Type of hinge: Complete hinge
Door: Exterior

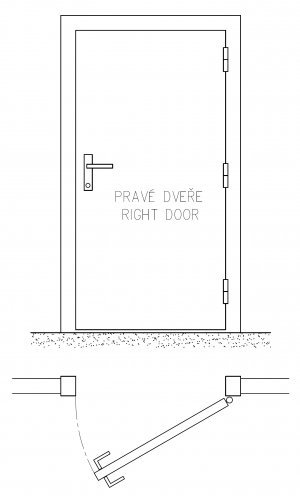

Orientation of door or window: For right door (frame)
According to material of door leaf: Wood
According to door execution: Non rebated
According to doorframe: Solid wood
Ending: Without decorative ending
Fire resistance: yes (appropriate for fire protection testing)
Gripping upper part: Screw on
Gripping lowwer part: Screw in
Diameter of bolt rivet(s): Special screw-thread into wood ø 9.6
Bolt(s) lenght: 57 mm
Plug high: 25,7 mm
We recommend used: Screws of ø 5 mm minimum length 50 mm
Czech product: Yes
Użycie

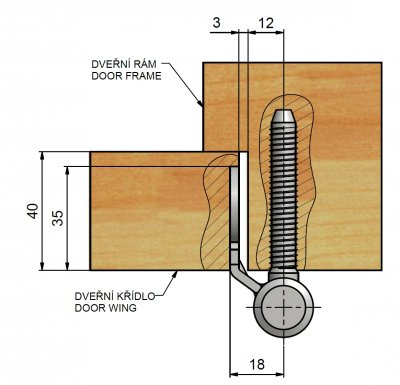

Complete hinge TRIO adjustable in three directions. Lower part of hinge is screwed on o a wooden frame. Upper part is for non-rebated doors and is screwed on a door wing by spin. Upper part can be underlayed by pad if necessary.
The hinge is appropriate for fire protection testing. Warning: The fire-protection hinges have to be tested within the entire set, i.e., together with the door and the frame!
There is a possibility to use ABS and metal caps on hinges.
