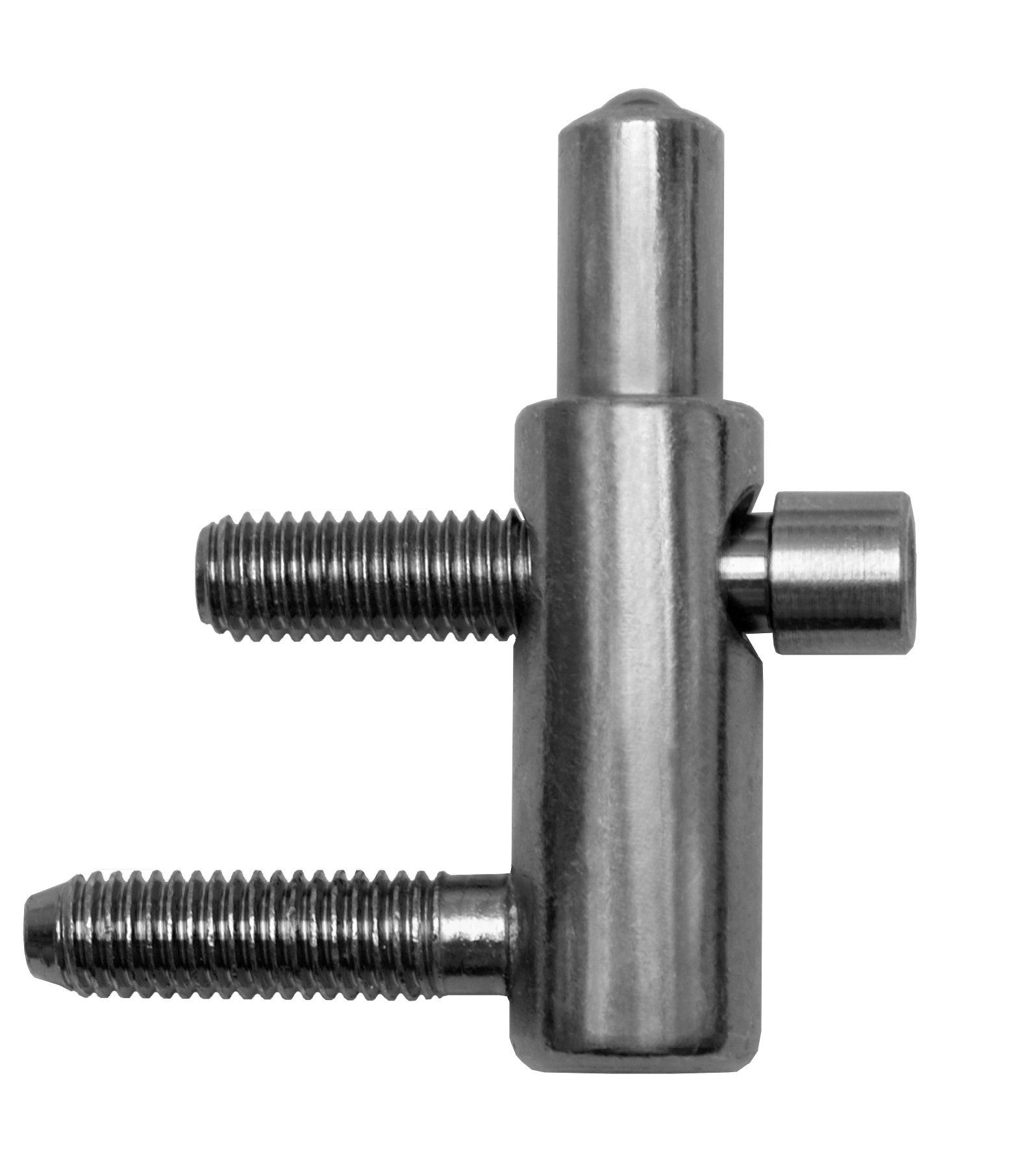

Door hinge TRIO 15 SD Z
nr kat.: 6975
Load: 40.00
Type of hinge: Lower part
Door: Interior
Orientation of door or window: For right and left door (frame)
According to door execution: Rebate
According to doorframe: Metal
Ending: Without decorative ending
Main material: Steel
Fire resistance: no
Gripping lowwer part: Screw in
Diameter of bolt rivet(s): M8
Bolt(s) lenght: 30 mm
Plug high: 19,5 mm
Czech product: Yes
Użycie
Hinge is suitable for gripping into metric thread. Mounting is done by screwing up of lower part and then by fastening of bolt.
