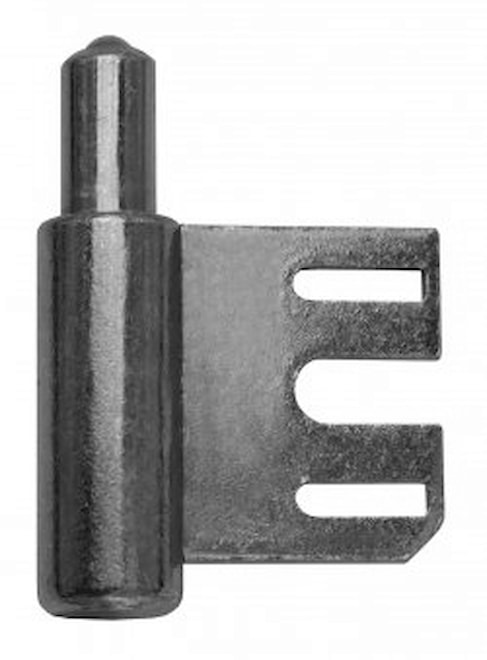

Door hinge TRIO 15 SD 34 OZ
Numer katalogowy | 5402 |
Load | 30.00 |
Type of hinge | Lower part |
Door | Interior |
Orientation of door or window | For right and left door (frame) |
According to door execution | Rebate |
According to doorframe | Metal |
Ending | Without decorative ending |
Main material | Steel |
Fire resistance | no |
Gripping | Into fixing element |
Plug high | 19,5 mm |
Czech product | Yes |
Numer katalogowy | 5402 |
Load | 30.00 |
Type of hinge | Lower part |
Door | Interior |
Orientation of door or window | For right and left door (frame) |
According to door execution | Rebate |
According to doorframe | Metal |
Ending | Without decorative ending |
Main material | Steel |
Fire resistance | no |
Gripping | Into fixing element |
Plug high | 19,5 mm |
Czech product | Yes |
5402
2-00001029
Dostępne warianty

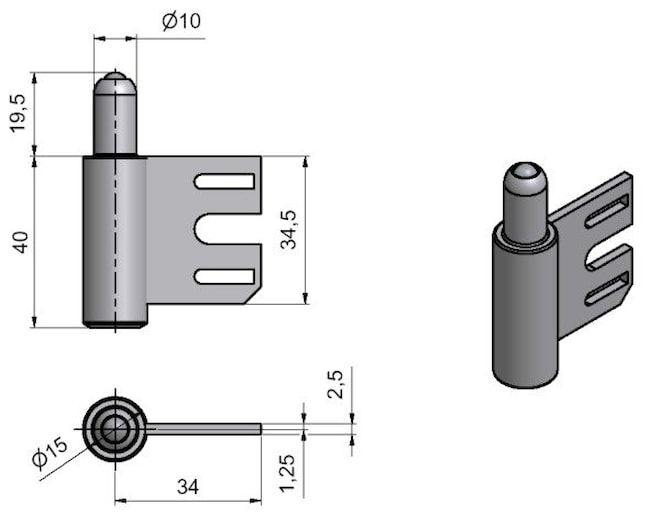

Lower part of TRIO 15 is suitable for steel frame, which is provided with hinge holder 34 OZ or 34 OZ PH. Complete hinge (with VD TRIO) is adjustable in three directions.
