• Karta katalogowa

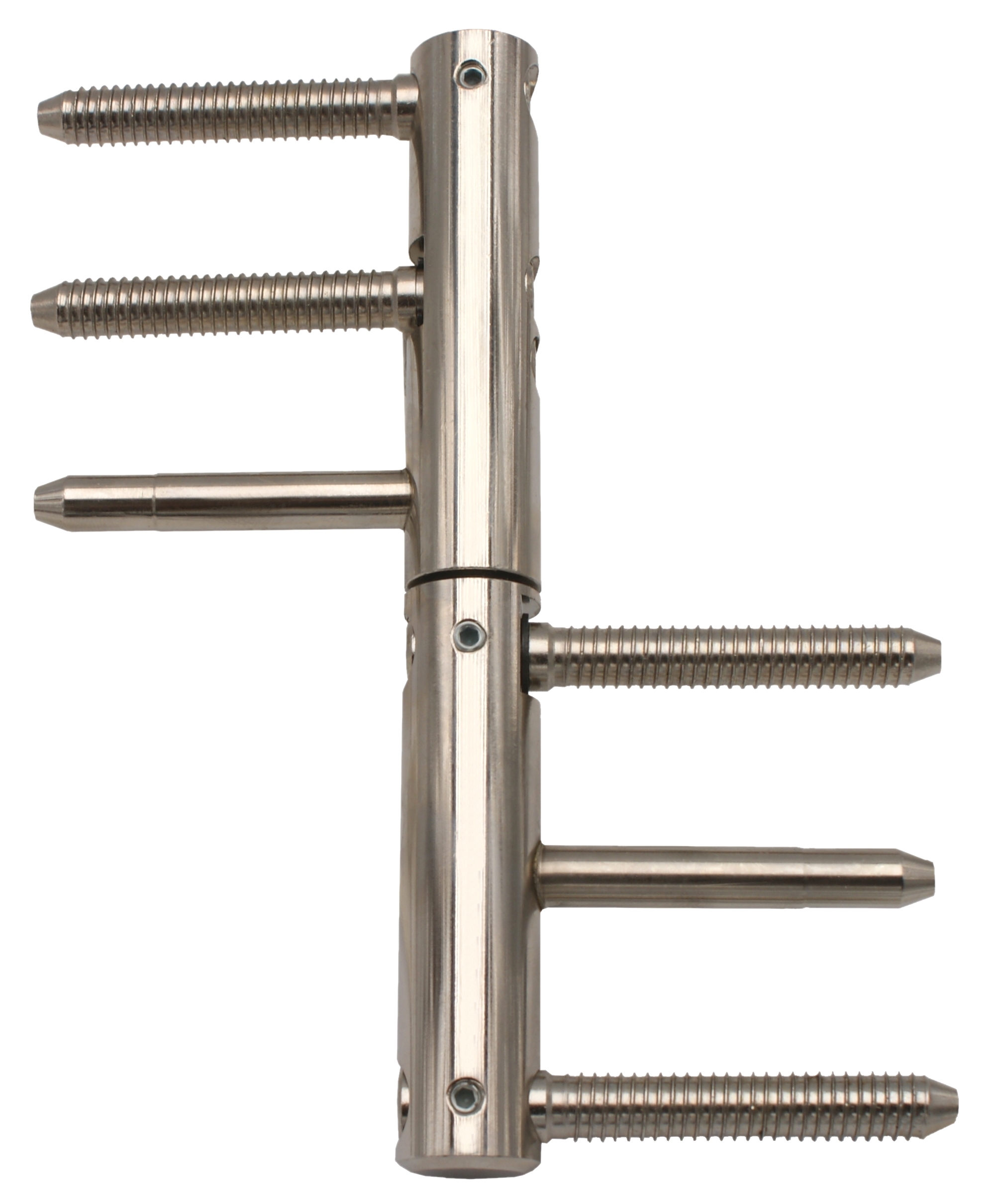

    Hinge TRIO MAX 20 BZ PH TR Nickel shiny

    Numer katalogowy 55202700
    Load 60.00
    Type of hinge Complete hinge
    Door Exterior
    Orientation of door or window For right and left door (frame)
    According to material of door leaf Wood
    According to door execution Rebate
    According to doorframe Solid wood
    Ending Without decorative ending
    Main material Steel
    Fire resistance yes (appropriate for fire protection testing)
    Gripping Screw in
    Diameter of bolt rivet(s) Special screw-thread into wood ø 9.6
    Bolt(s) lenght 56,5 mm
    Plug high 25,6 mm
    Czech product Yes

    Hinge TRIO MAX 20 BZ PH TR Nickel shiny

    Dostępne warianty

    cover kod typ wielkość paczki bez VAT / MJ* z VAT / MJ* zapytać
    kod: 55200510 nazwa: Yelllow zinc wielkość paczki: 20 pcs bez VAT / MJ*: 10,42 z VAT / MJ*: 12,61
    kod: 55200530 nazwa: Blue zinc wielkość paczki: 20 pcs bez VAT / MJ*: 10,42 z VAT / MJ*: 12,61
    kod: 55202700 nazwa: Nickel shiny wielkość paczki: 20 pcs bez VAT / MJ*: 11,72 z VAT / MJ*: 14,18
    kod: 55202D00 nazwa: Nickel satin wielkość paczki: 20 pcs bez VAT / MJ*: 12,64 z VAT / MJ*: 15,29

    Nie ma elementu pasującego do wyboru.

    *Ceny za MJ = za 1 szt. (lub 1 kpl.) są orientacyjne. Przy zakupie mniejszej ilości niż opakowanie może zostać naliczona dopłata w wysokości do 10% ceny produktu.

    UPON REQUEST variants – when ordering less than 100 pcs – extra charge 10%.

    Door hinge is for rebated doors. Adjustable in 3 directions. Load for 3 hinges - 160 kg.

    Hinges are suitable for doors with self-clossing equipment: Self-closing equipment without the end stop requires hinges rated for a door 20% heavier than its actual weight.
    This effect is even higher for self-closing equipment with the end stop, for which the door‘s effi cient weight is to be increased by 75%.

    The hinge is appropriate for fire protection testing. Warning: The fire-protection hinges have to be tested within the entire set, i.e., together with the door and the frame!
