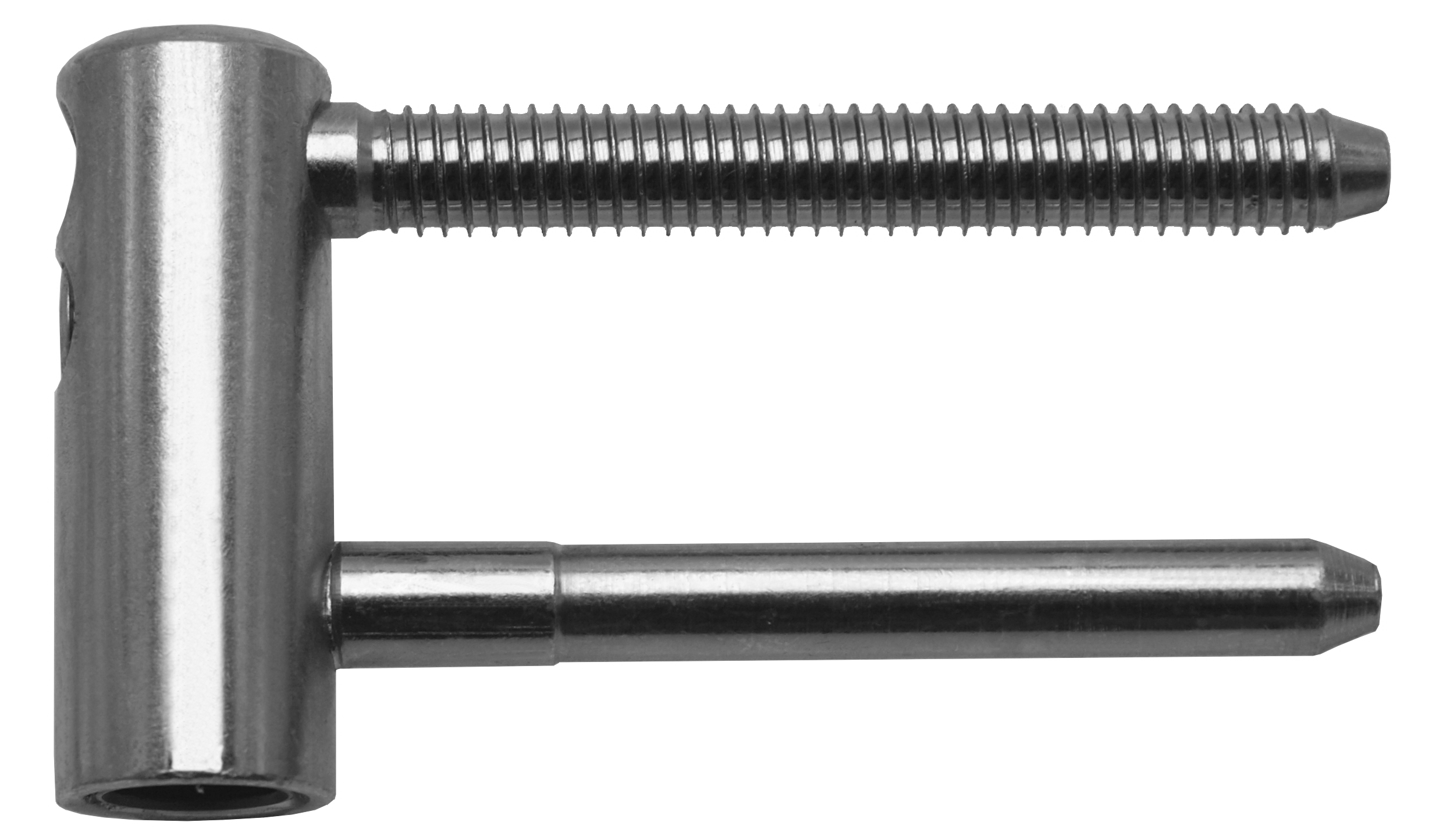

Door hinge TRIO 20 VD H PH
nr kat.: 6934
Load: 50.00
Type of hinge: Upper part
Door: Exterior
Orientation of door or window: For right and left door (frame)
According to material of door leaf: Wood
According to door execution: Rebate
Ending: Without decorative ending
Fire resistance: yes (appropriate for fire protection testing)
Gripping upper part: Screw in

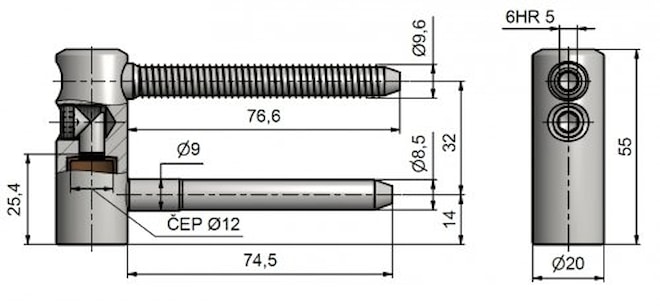

Diameter of bolt rivet(s): Special screw-thread into wood ø 9.6
Bolt(s) lenght: 76,6 mm
Czech product: Yes
Użycie
Upper part of hinge TRIO for wooden frame. Complete hinge (with TRIO SD) is adjustable in three directions.
The hinge is appropriate for fire protection testing. Warning: The fire-protection hinges have to be tested within the entire set, i.e., together with the door and the frame!
There is a possibility to use ABS and metal caps on hinges.
