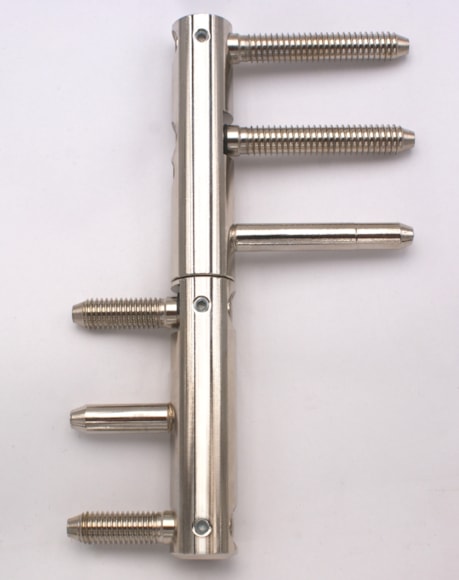

Door hinge TRIO 20 MAX BZ TR M10x29 PH Nickel shiny
nr kat.: 55222700
Type of hinge: Complete hinge
Orientation of door or window: For right and left door (frame)
According to material of door leaf: Wood
According to door execution: Rebate
According to doorframe: Metal
Ending: Without decorative ending
Main material: Steel
Fire resistance: yes (appropriate for fire protection testing)
Gripping: Screw in
Plug high: 25,6 mm
Czech product: Yes
Door hinge is for rebated doors. Adjustable in 3 directions. Load for 3 hinges - 160 kg.
Hinges are suitable for doors with self-clossing equipment: Self-closing equipment without the end stop requires hinges rated for a door 20% heavier than its actual weight.
This effect is even higher for self-closing equipment with the end stop, for which the door‘s effi cient weight is to be increased by 75%.
The hinge is appropriate for fire protection testing. Warning: The fire-protection hinges have to be tested within the entire set, i.e., together with the door and the frame!
