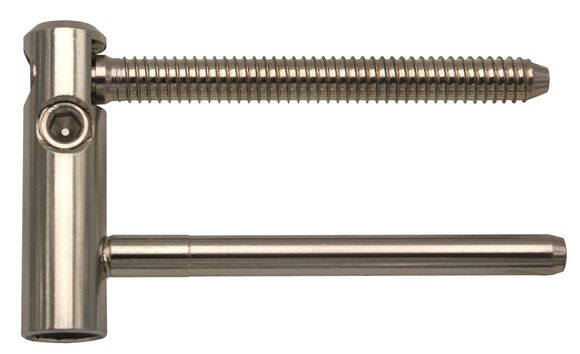

Door hinge TRIO 15 PP PH VD Nickel shiny
nr kat.: 54010700
Type of hinge: Upper part
Orientation of door or window: For right and left door (frame)
According to material of door leaf: Wood
According to door execution: Rebate
Ending: Without decorative ending
Main material: Steel
Fire resistance: yes (appropriate for fire protection testing)
Gripping upper part: Screw in
Diameter of bolt rivet(s): Special screw-thread into wood ø 8
Bolt(s) lenght: 80,5 mm
Czech product: Yes
Upper part of hinge is suitable for door wing. Complete hinge ( with SD TRIO 5410) is adjustable in three directions.
The hinge is appropriate for fire protection testing. Warning: The fire-protection hinges have to be tested within the entire set, i.e., together with the door and the frame!
There is a possibility to use ABS and metal caps on hinge.
