6929
2-00003697
Dostępne warianty

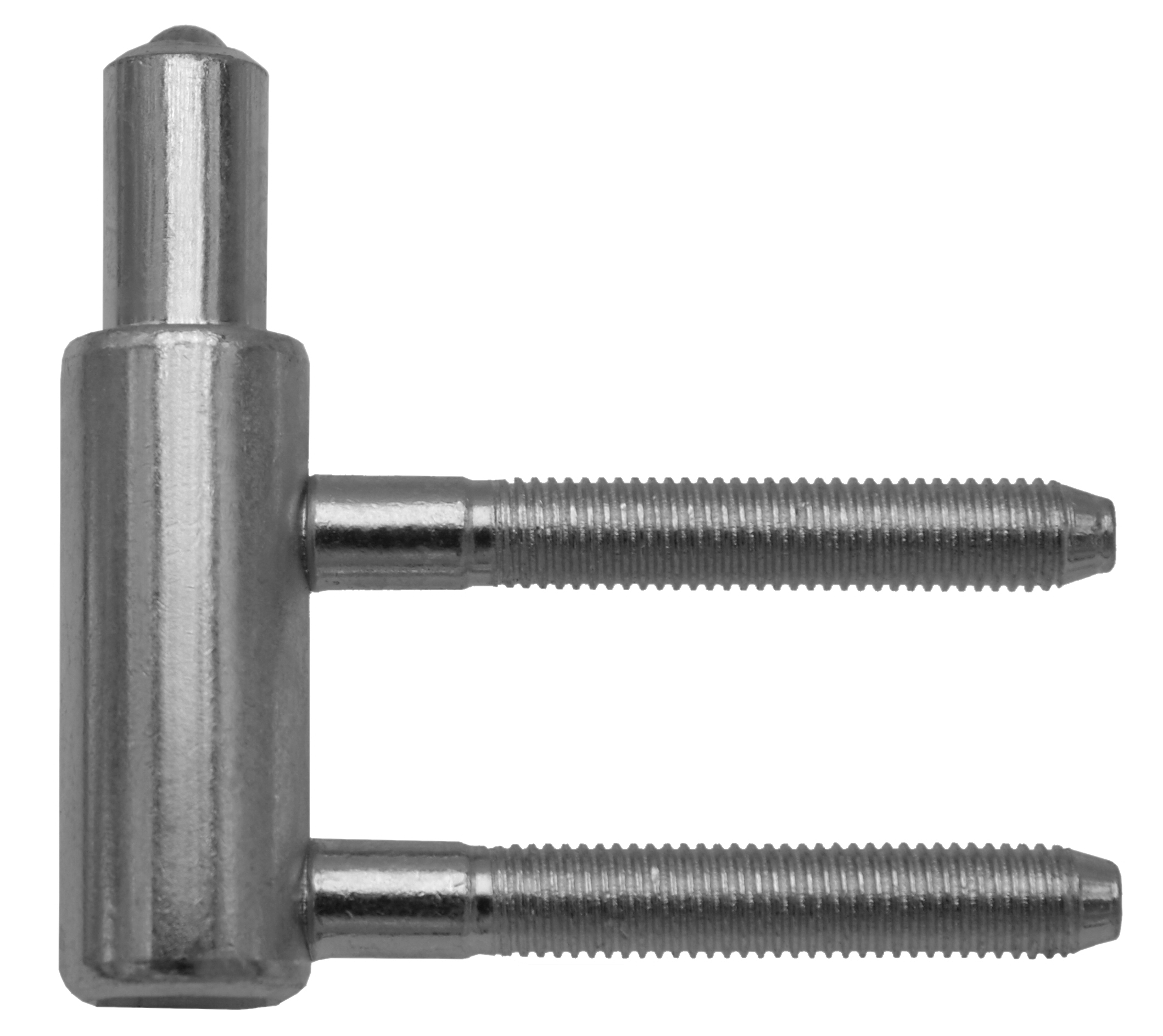

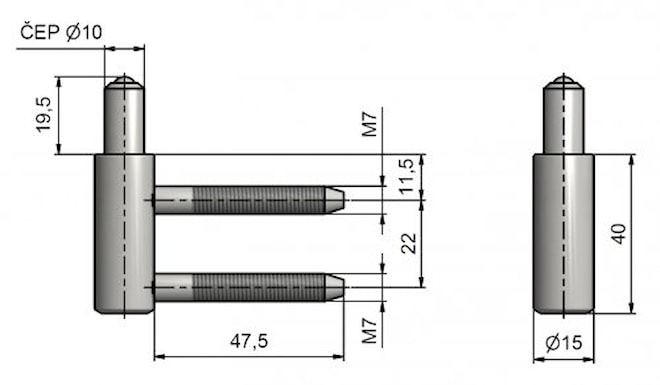

Lower part of hinge TRIO for wooden casing. Hinge is suitable into hinge liner 22/7. Complete hinge is adjustable in three directions. There is a possibility to use decorative caps on hinges.
Numer katalogowy | 6929 |
Load | 40.00 |
Type of hinge | Lower part |
Door | Interior |
Orientation of door or window | For right and left door (frame) |
According to door execution | Rebate |
According to doorframe | Wooden casing |
Ending | Without decorative ending |
Fire resistance | no |
Gripping lowwer part | Into fixing element |
Diameter of bolt rivet(s) | M7 |
Bolt(s) lenght | 47,5 mm |
Plug high | 19,5 mm |
Czech product | Yes |
Numer katalogowy | 6929 |
Load | 40.00 |
Type of hinge | Lower part |
Door | Interior |
Orientation of door or window | For right and left door (frame) |
According to door execution | Rebate |
According to doorframe | Wooden casing |
Ending | Without decorative ending |
Fire resistance | no |
Gripping lowwer part | Into fixing element |
Diameter of bolt rivet(s) | M7 |
Bolt(s) lenght | 47,5 mm |
Plug high | 19,5 mm |
Czech product | Yes |
6929
2-00003697
Lower part of hinge TRIO for wooden casing. Hinge is suitable into hinge liner 22/7. Complete hinge is adjustable in three directions. There is a possibility to use decorative caps on hinges.
