9327
2-00002228
3-00003995
Dostępne warianty

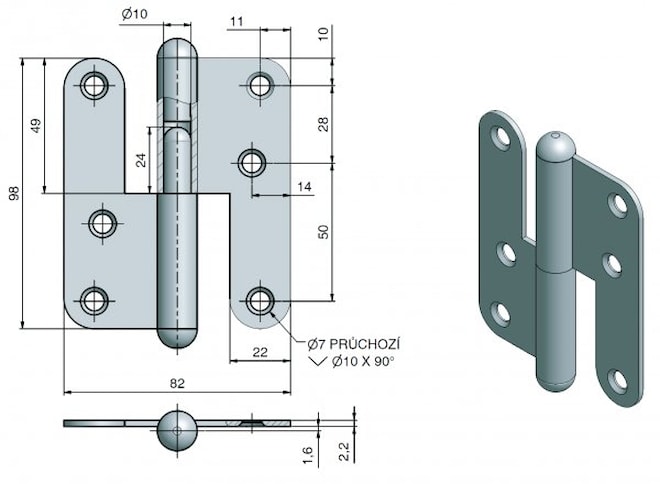

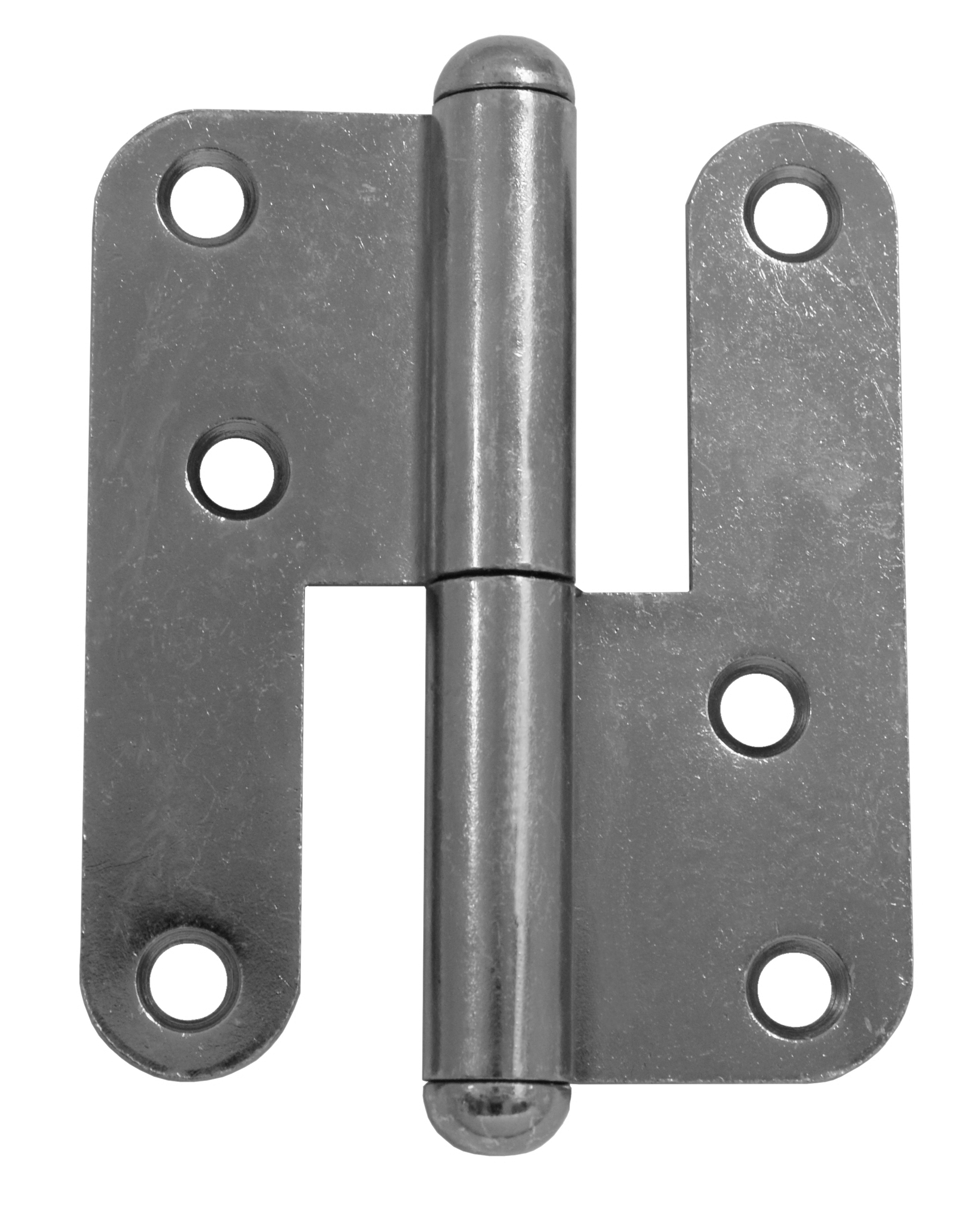

For turning connection of non-rebated door with frame. There is a grease gap in the upper part of hinge.
Numer katalogowy | 9327 |
Load | 25.00 |
Type of hinge | Complete hinge |
Door | Interior |

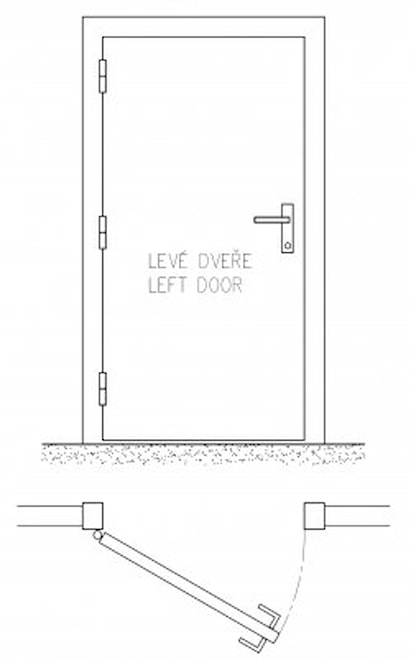

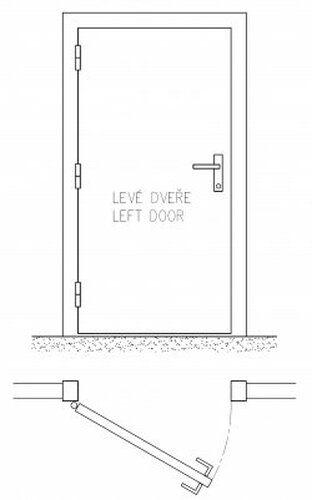

Orientation of door or window | For left door (frame) |
According to material of door leaf | Wood |
According to door execution | Non rebated |
According to doorframe | Solid wood |
Ending | Semiround ending UR25 |
Main material | Steel |
Fire resistance | no |
Gripping | Screw on |
Plug high | 24 mm |
We recommend used | Screws of ø 4,5 mm minimum length 40 mm |
Czech product | Yes |
Numer katalogowy | 9327 |
Load | 25.00 |
Type of hinge | Complete hinge |
Door | Interior |
Orientation of door or window | For left door (frame) |
According to material of door leaf | Wood |
According to door execution | Non rebated |
According to doorframe | Solid wood |
Ending | Semiround ending UR25 |
Main material | Steel |
Fire resistance | no |
Gripping | Screw on |
Plug high | 24 mm |
We recommend used | Screws of ø 4,5 mm minimum length 40 mm |
Czech product | Yes |
9327
2-00002228
3-00003995
For turning connection of non-rebated door with frame. There is a grease gap in the upper part of hinge.
