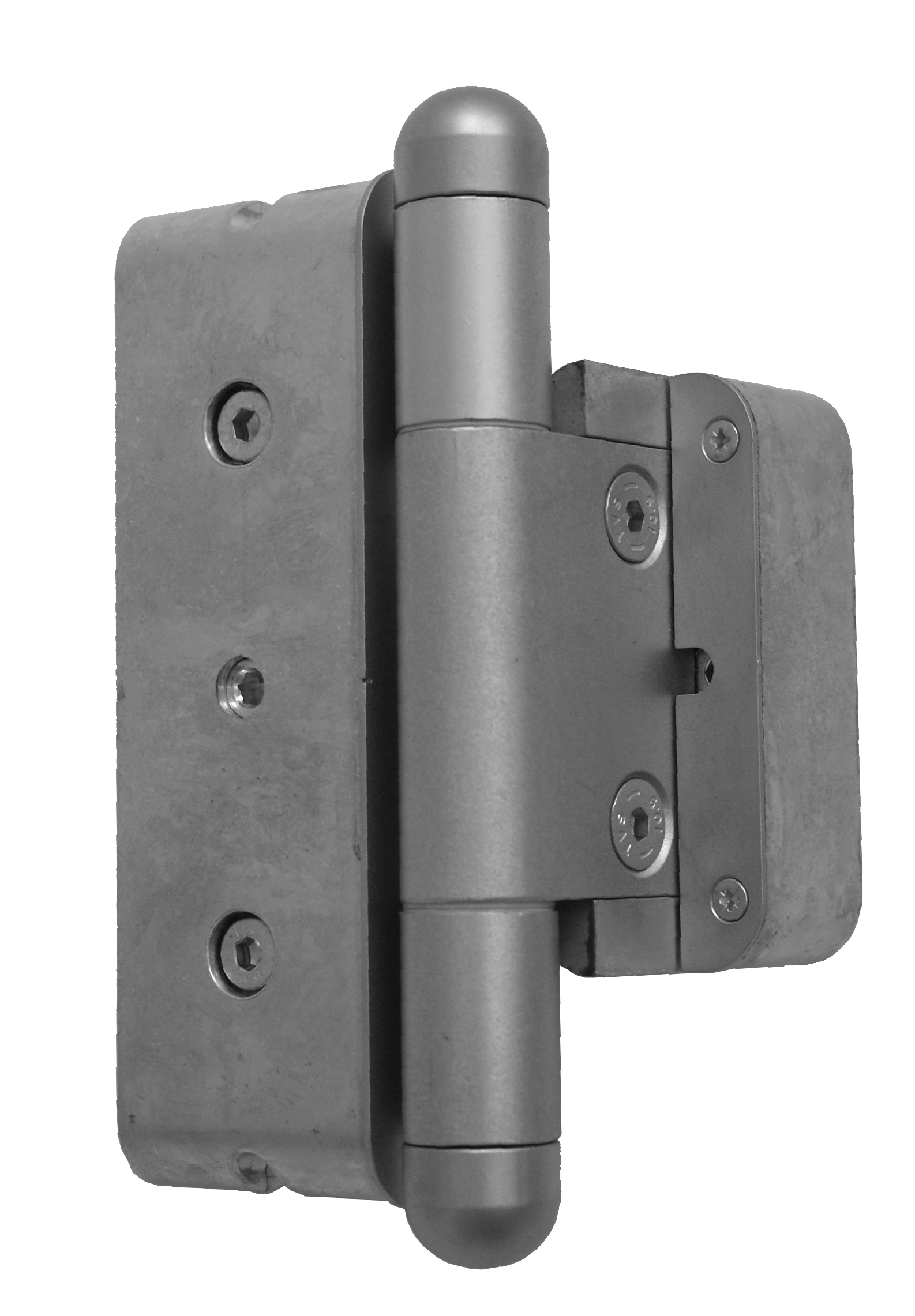

Door hinge GEMMA 55 - 20/18 cranked UR61 S3
Action
nr kat.: 5582
Load: 56.00
Type of hinge: Complete hinge
Door: Exterior
Orientation of door or window: For right and left door (frame)
According to material of door leaf: Wood
According to door execution: Rebate
According to doorframe: Solid wood
Ending: Semiround ending UR25
Main material: Alloy ZAMAK and steel
Fire resistance: no
Czech product: Yes
Użycie

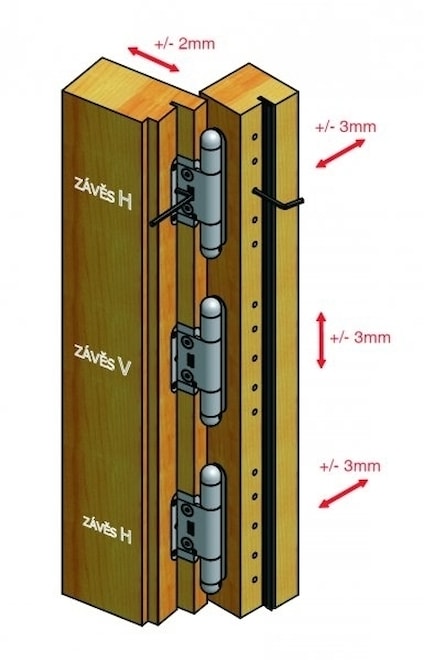

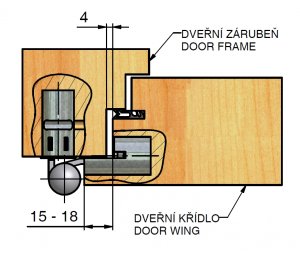

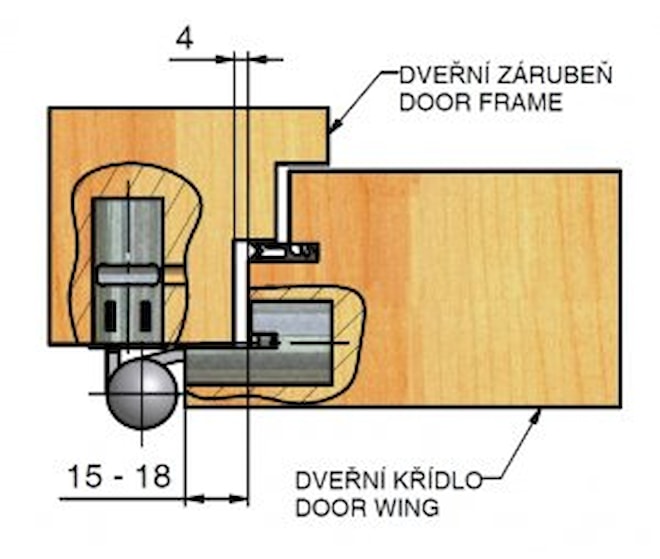

Elegant solution for your exterior doors with rabbet 15 - 18 mm, especially for profile EURO 68 (It is determined for window profile - montage with window template). The hinge is adjustable in three directions, high durability (it was tested for 1 million cycles). Plug is secured against slipping by security screw. Set contains 3 hinges. In case of doors higher than 2000 mm or wider than 1000 mm we recommend adding 4th hinge (V) which is available separately.
