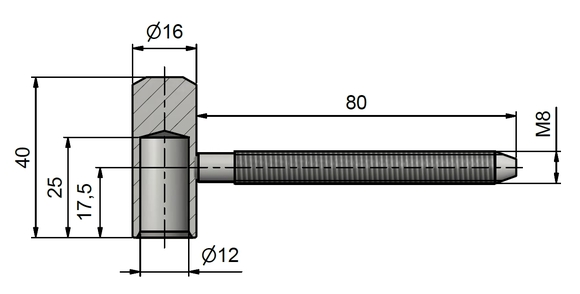

Door hinge 80/12 VD M8x80
nr kat.: 9673
Load: 20.00
Type of hinge: Upper part
Door: Interior
Orientation of door or window: For right and left door (frame)
According to material of door leaf: Wood
According to door execution: Rebate
Ending: Without decorative ending
Main material: Steel
Fire resistance: yes (appropriate for fire protection testing)
Gripping: Screw in
Diameter of bolt rivet(s): M8
Bolt(s) lenght: 80 mm
Czech product: Yes
Użycie
Upper part of hinge for forging to door wing. (Used mainly for completion old lower part with pin diamater 12 mm.)
The hinge is appropriate for fire protection testing. Warning: The fire-protection hinges have to be tested within the entire set, i.e., together with the door and the frame!
