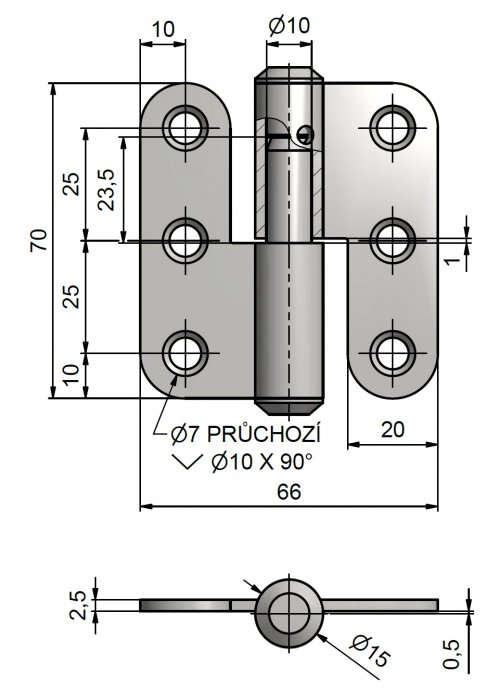

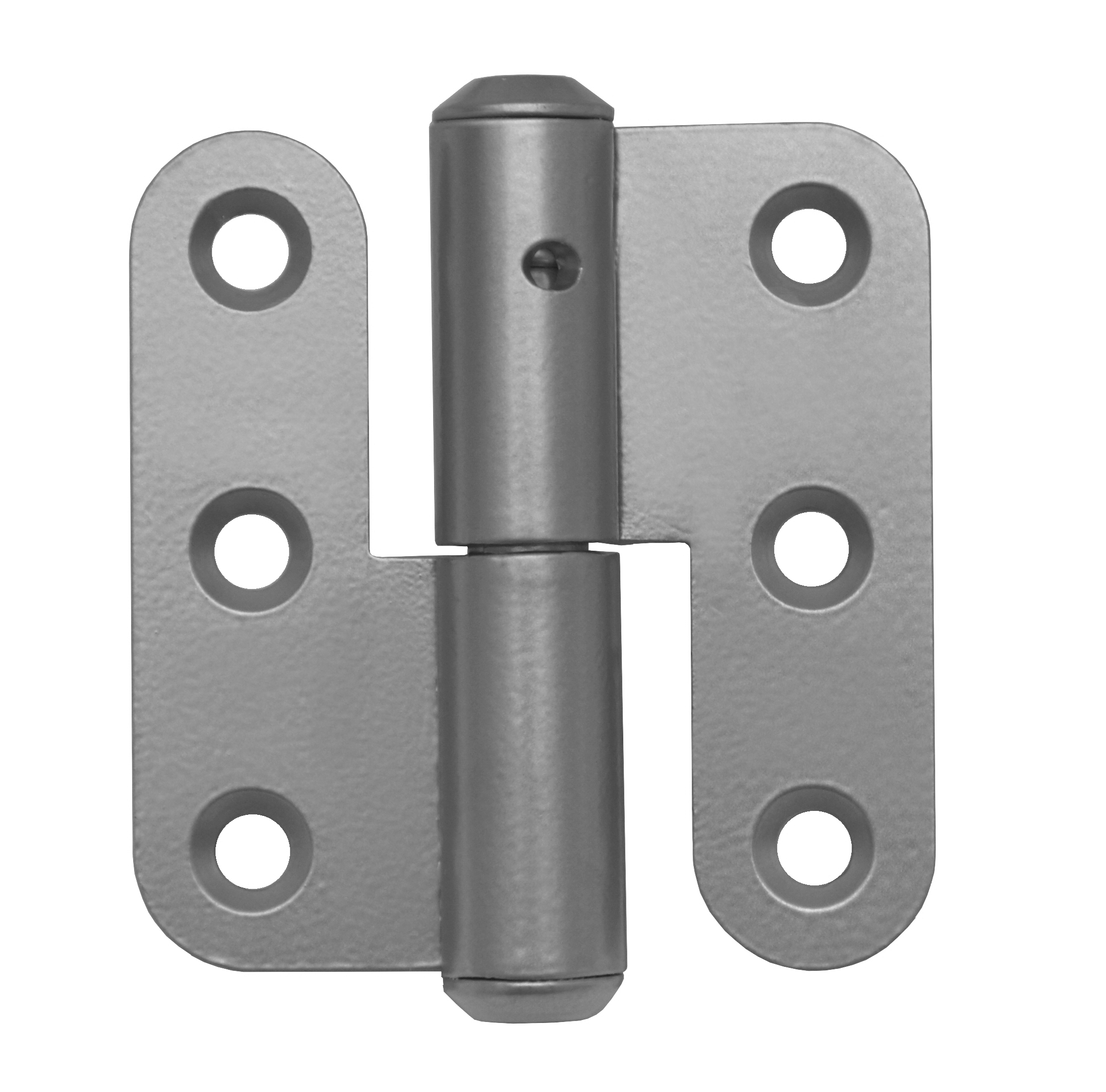

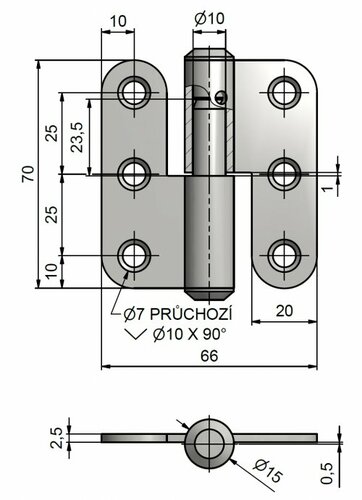

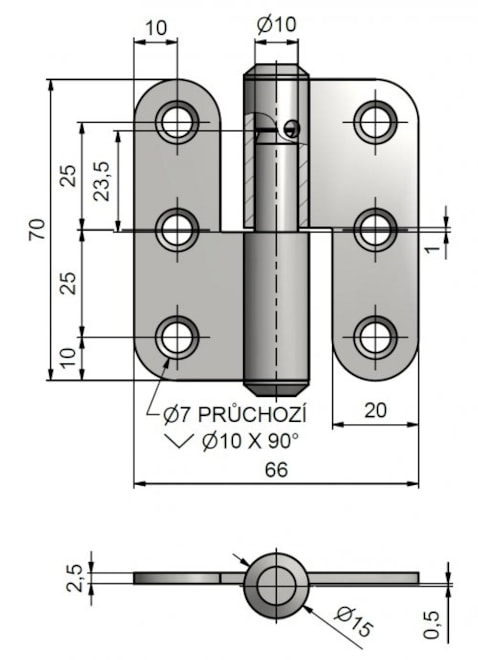

Door hinge 70x66 R
nr kat.: 9366
Load: 25.00
Type of hinge: Complete hinge
Door: Interior, Sanitary partition

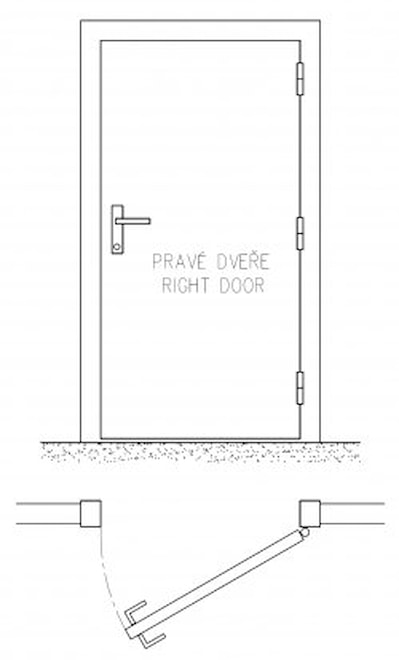

Orientation of door or window: For right door (frame)
According to material of door leaf: Wood
According to door execution: Non rebated
According to doorframe: Solid wood
Ending: Without decorative ending
Main material: Steel
Fire resistance: no
Gripping: Screw on
Plug high: 23,5 mm
We recommend used: Screws of ø 4,5 mm minimum length 40 mm
Czech product: Yes
Użycie
For turning connection of non-rebated door with frame. There is a grease gap in the upper part of hinge.
