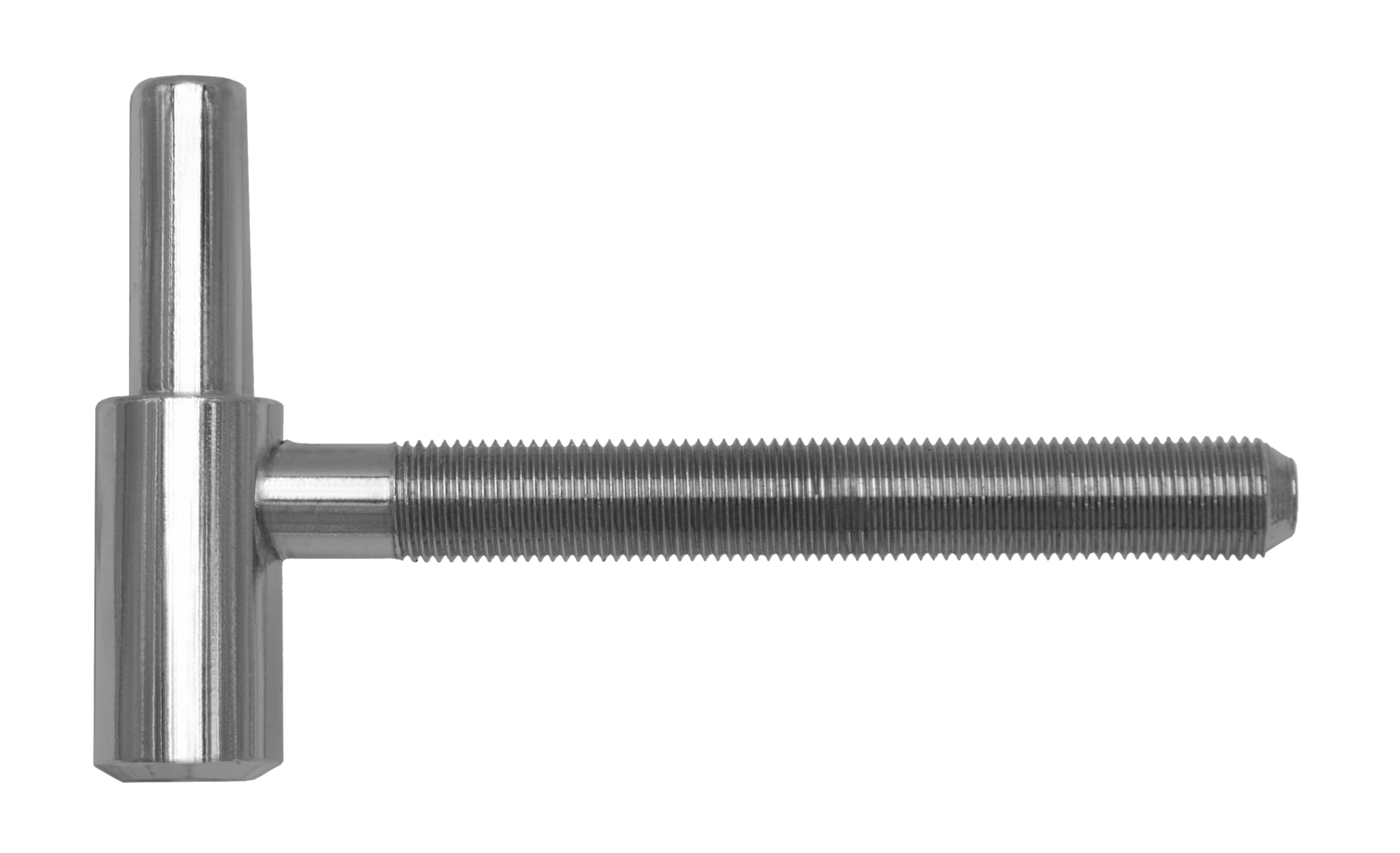

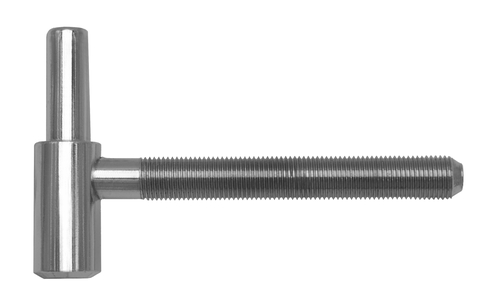

Door hinge 60/10 SD M10x1/80
nr kat.: 9684
Load: 20.00
Type of hinge: Lower part
Orientation of door or window: For right and left door (frame)
According to door execution: Rebate
According to doorframe: Solid wood
Ending: Without decorative ending
Main material: Steel
Fire resistance: yes (appropriate for fire protection testing)
Gripping: Screw in

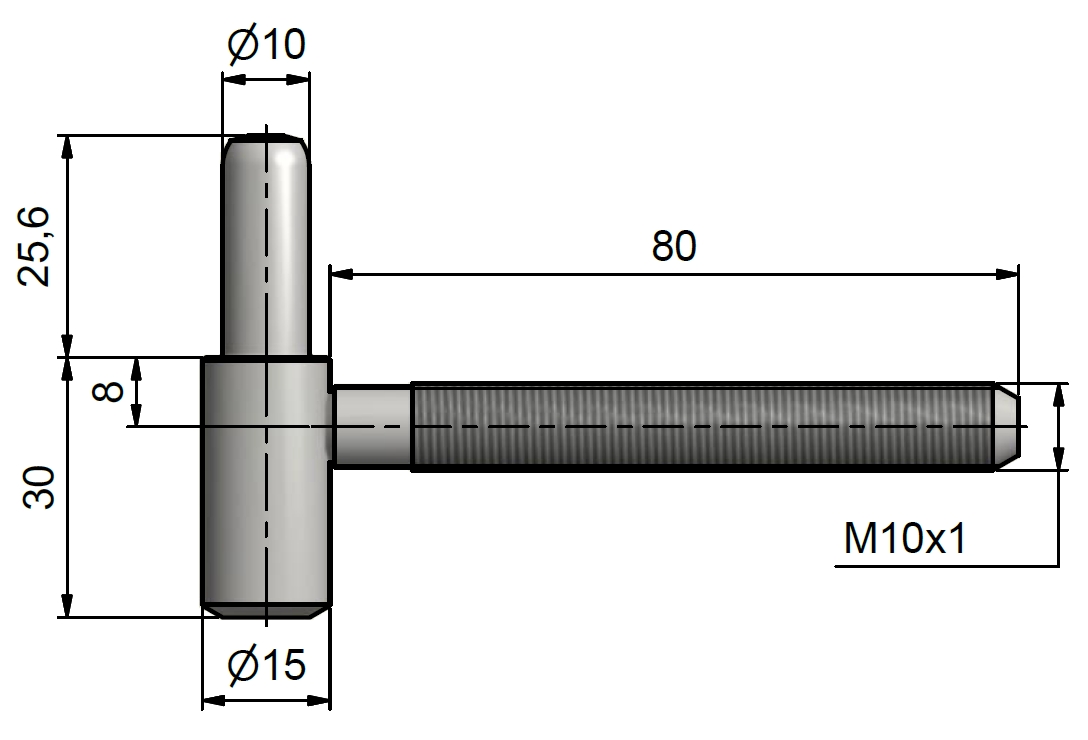

Diameter of bolt rivet(s): M10x1
Bolt(s) lenght: 80 mm
Plug high: 25,6 mm
Czech product: Yes
Użycie
Lower part of hinge - into wooden frame.
The hinge is appropriate for fire protection testing. Warning: The fire-protection hinges have to be tested within the entire set, i.e., together with the door and the frame!
