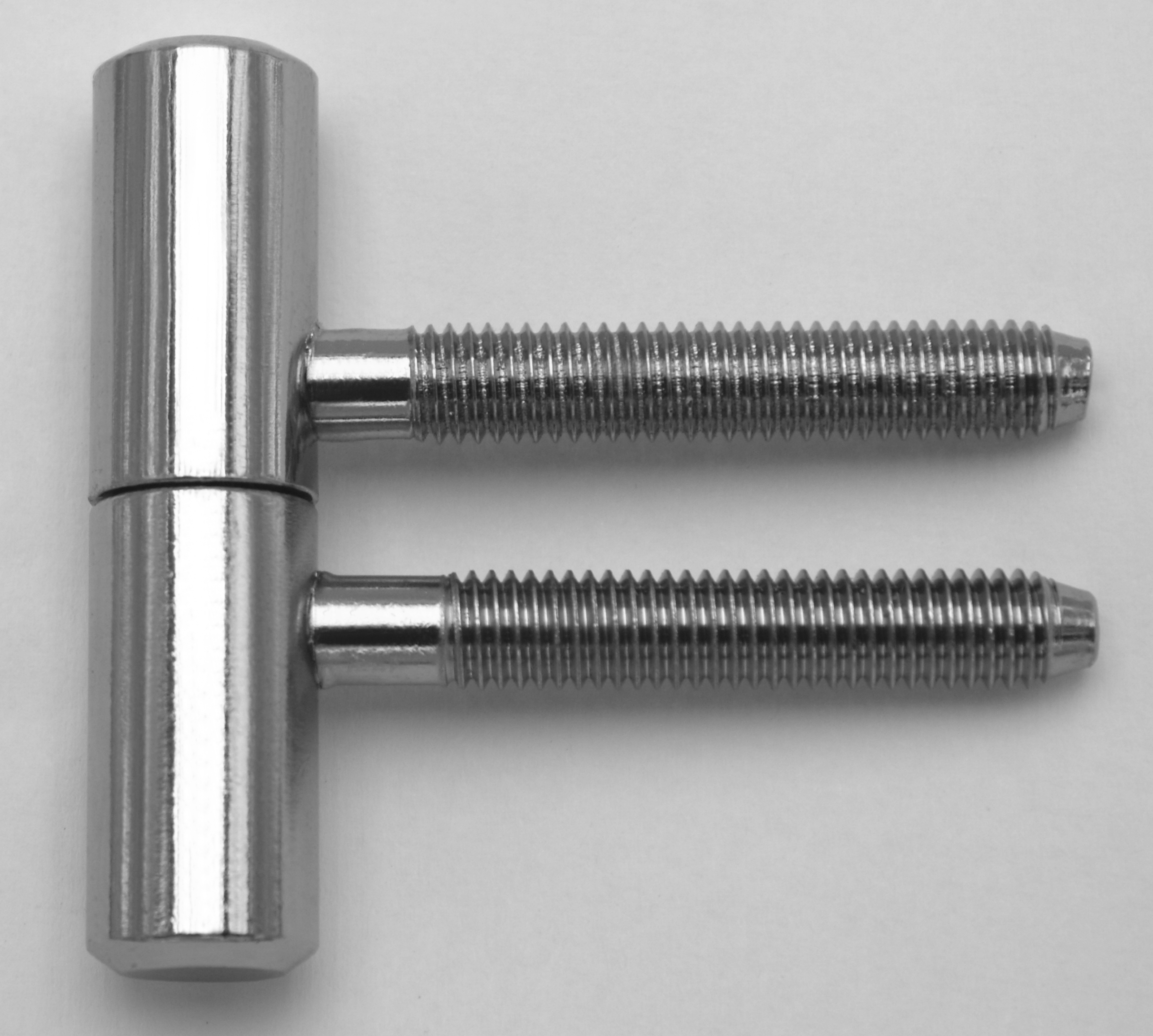

Door hinge 60/10 M8/50 M8/50
nr kat.: 9696
Load: 20.00
Type of hinge: Complete hinge
Door: Interior
Orientation of door or window: For right and left door (frame)
According to material of door leaf: Wood
According to door execution: Rebate
According to doorframe: Solid wood
Ending: Without decorative ending
Main material: Steel
Fire resistance: no
Gripping: Screw in

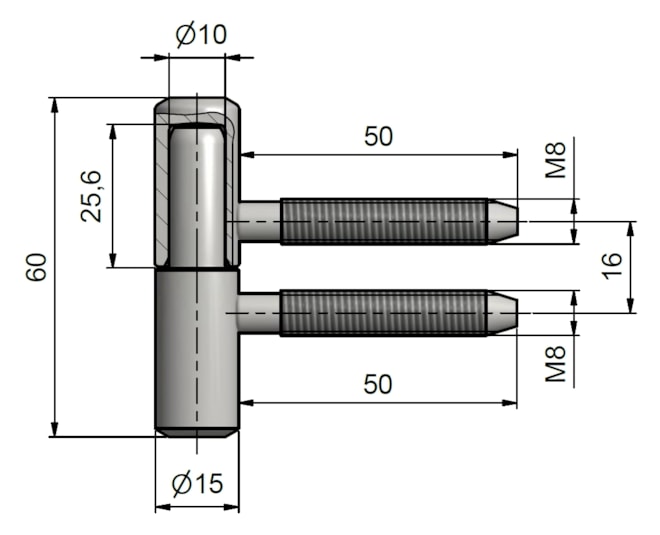

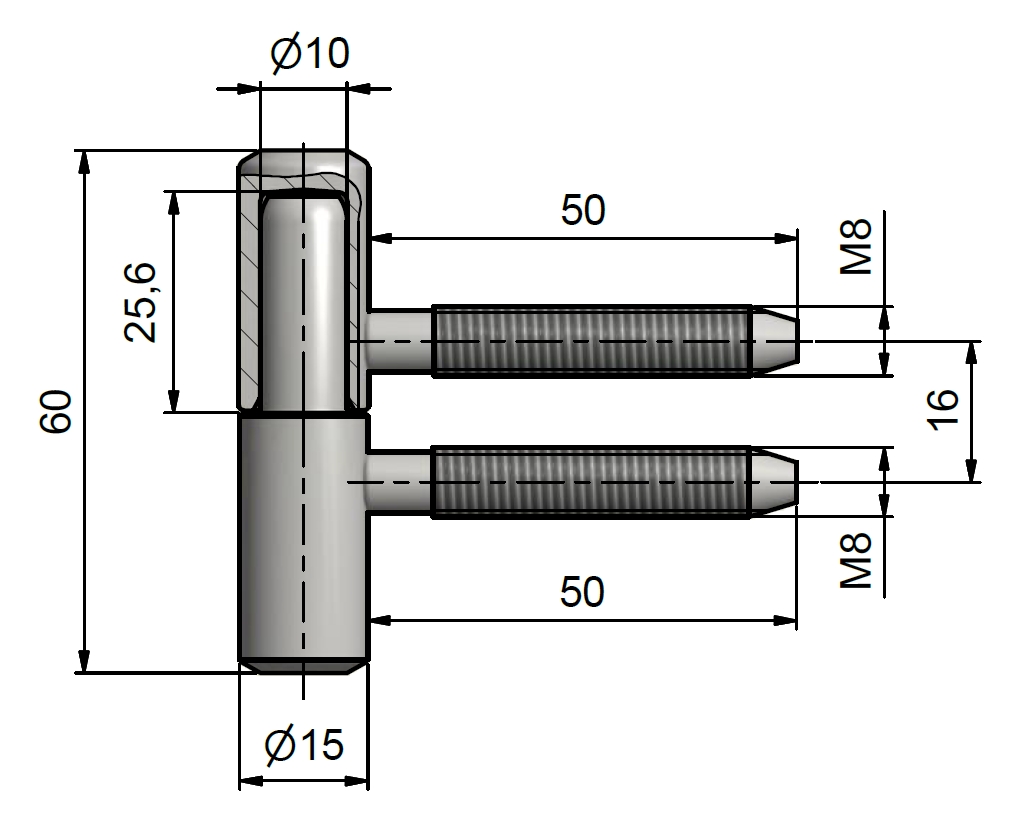

Diameter of bolt rivet(s): M8
Bolt(s) lenght: 50 mm
Plug high: 25,6 mm
Czech product: Yes
Użycie
For turning connection of rebated door with wooden frame. There is a possibility to use caps on hinges. (upon request)
