Concealed hinge DX-38 N

Numer katalogowy	Z11.41084.
Load	30.00
Door	Interior
Orientation of door or window	For right and left door (frame)
According to material of door leaf	Wood
According to door execution	Non rebated
According to doorframe	Solid wood, Wooden casing, Metal
Main material	Aluminium alloy with steel components
Fire resistance	no
Gripping	Screw on
The product includes	4 bolts M5x14, 8 chipboard screws 4,5x50

Numer katalogowy	Z11.41084.
Load	30.00
Door	Interior
Orientation of door or window	For right and left door (frame)
According to material of door leaf	Wood
According to door execution	Non rebated
According to doorframe	Solid wood, Wooden casing, Metal
Main material	Aluminium alloy with steel components
Fire resistance	no
Gripping	Screw on
The product includes	4 bolts M5x14, 8 chipboard screws 4,5x50

Do pobrania:

Sampler of surface finishes and symbols used in the catalogue,

Z11.41084.

2-41084_v

3-DX38N

Dostępne warianty

id	cover	kod	typ	wielkość paczki	bez VAT / MJ*	z VAT / MJ*	zapytać
Szczegół		kod: Z11.41084	nazwa: Nickel satin	wielkość paczki: 2 pcs	bez VAT / MJ*: 35,56 €	z VAT / MJ*: 43,03 €

Nie ma elementu pasującego do wyboru.

*Ceny za MJ = za 1 szt. (lub 1 kpl.) są orientacyjne. Przy zakupie mniejszej ilości niż opakowanie może zostać naliczona dopłata w wysokości do 10% ceny produktu.

UPON REQUEST variants – when ordering less than 100 pcs – extra charge 10%.

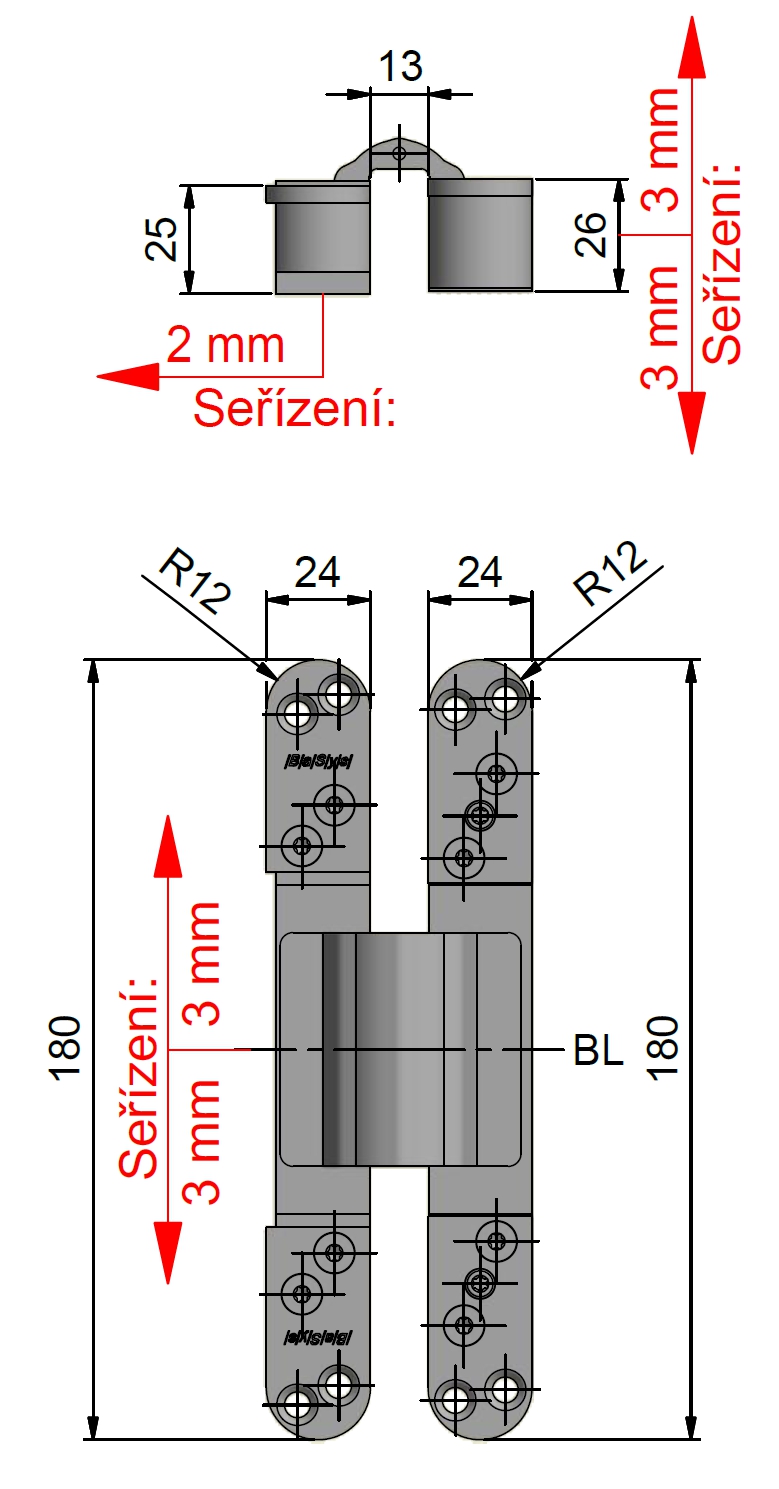

This hinge you cannot see when the doors are closed. (for non-rebated door) Adjustable in three directions. Use metal plate to strengthen the casing. If you have metal frame use holder for welding. (see similar goods)
