• Catalog sheet

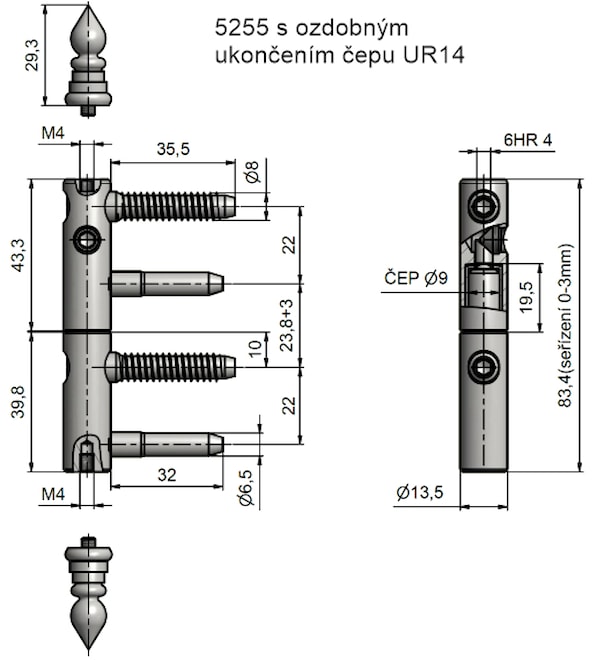

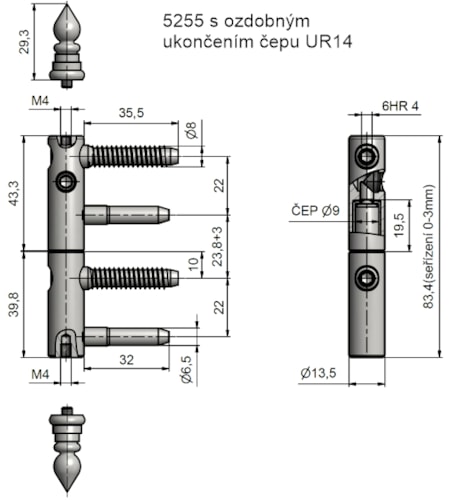

    Window hinge EXPERT 13,5 DZ PH UR14 L Lacquer RAL

    Catalog number 5255UR14.LAK
    Load 17.50
    Type of hinge Complete hinge
    Orientation of door or window For right window (frame)
    Ending Semiround ending UR25, Decorative ending UR01, Decorative ending UR14, Decorative ending UR21, Decorative ending UR50
    Main material Steel
    Gripping Screw in
    Diameter of bolt rivet(s) Special screw-thread into wood ø 8
    Czech product Yes

    Window hinge EXPERT 13,5 DZ PH UR14 L Lacquer RAL

    Available variants

    cover Code type package size without VAT / MJ* incl. VAT / MJ* demand
    Code: 5255UR01.LAK name: UR01 Lacquer RAL package size: 1 pc without VAT / MJ*: 7.59 incl. VAT / MJ*: 9.18
    Code: 5255UR01.ZNM name: UR01 Blue zinc package size: 1 pc without VAT / MJ*: 6.68 incl. VAT / MJ*: 8.08
    Code: 5255UR01.ZNZ name: UR01 Yelow zinc package size: 1 pc without VAT / MJ*: 6.68 incl. VAT / MJ*: 8.08
    Code: 5255UR14.LAK name: UR14 Lacquer RAL package size: 1 pc without VAT / MJ*: 7.09 incl. VAT / MJ*: 8.58
    Code: 5255UR14.ZNM name: UR14 Blue zinc package size: 1 pc without VAT / MJ*: 6.39 incl. VAT / MJ*: 7.73
    Code: 5255UR14.ZNZ name: UR14 Yelow zinc package size: 1 pc without VAT / MJ*: 6.55 incl. VAT / MJ*: 7.92
    Code: 5255UR21.LAK name: UR21 Lacquer RAL package size: 1 pc without VAT / MJ*: 7.09 incl. VAT / MJ*: 8.58
    Code: 5255UR21.ZNM name: UR21 Blue zinc package size: 1 pc without VAT / MJ*: 6.55 incl. VAT / MJ*: 7.92
    Code: 5255UR21.ZNZ name: UR21 Yelow zinc package size: 1 pc without VAT / MJ*: 6.39 incl. VAT / MJ*: 7.73
    Code: 5255UR25.LAK name: UR25 Lacquer RAL package size: 1 pc without VAT / MJ*: 6.83 incl. VAT / MJ*: 8.27
    Code: 5255UR25.ZNM name: UR25 Blue zinc package size: 1 pc without VAT / MJ*: 6.36 incl. VAT / MJ*: 7.69
    Code: 5255UR25.ZNZ name: UR25 Yelow zinc package size: 1 pc without VAT / MJ*: 6.36 incl. VAT / MJ*: 7.69
    Code: 5255UR50.LAK name: UR50 Lacquer RAL package size: 1 pc without VAT / MJ*: 6.85 incl. VAT / MJ*: 8.29
    Code: 5255UR50.ZNM name: UR50 Blue zinc package size: 1 pc without VAT / MJ*: 6.55 incl. VAT / MJ*: 7.92
    Code: 5255UR50.ZNZ name: UR50 Yelow zinc package size: 1 pc without VAT / MJ*: 6.39 incl. VAT / MJ*: 7.73

    No item matches your selection.

    *Prices for MJ =for 1 piece (or 1 set)are indicative. When purchasing a smaller quantity than the package, a surcharge of up to 10% of the price of the goods may be charged.

    UPON REQUEST variants – when ordering less than 100 pcs – extra charge 10%.

    Window hinge EXPERT with decorative ending – we will customize it according to your needs (hinges are delivered assembled).

    You can choose possible variants of decorative finish and surfaces – see below. When ordering lacquered hinges, please state which RAL finish do you request. We will inform you as soon as possible about price and possible delivery. Minimum amount 100 pcs.

    The hinge is great option for stylish interiors, where is requested particular look (for instance historical decorative finish). It also meets the requirement for modern hinge – the adjustment is in 3 directions.

    You can set the interior doors with the same type of hinge as well and for heavier door we are offering – see below.
