• Catalog sheet
    9162

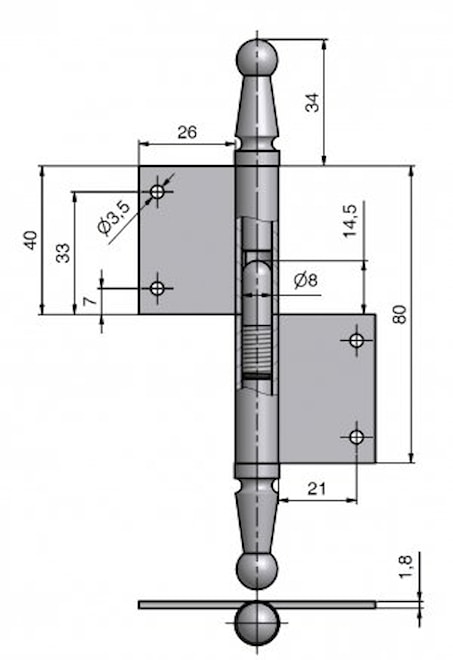

    Drawing

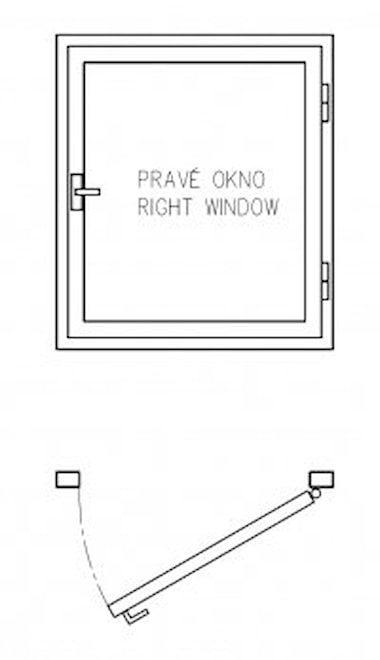

    right window

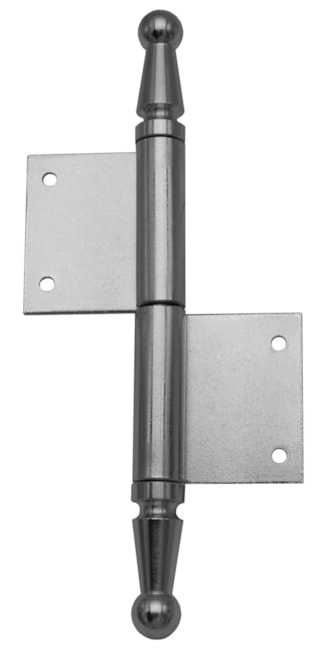

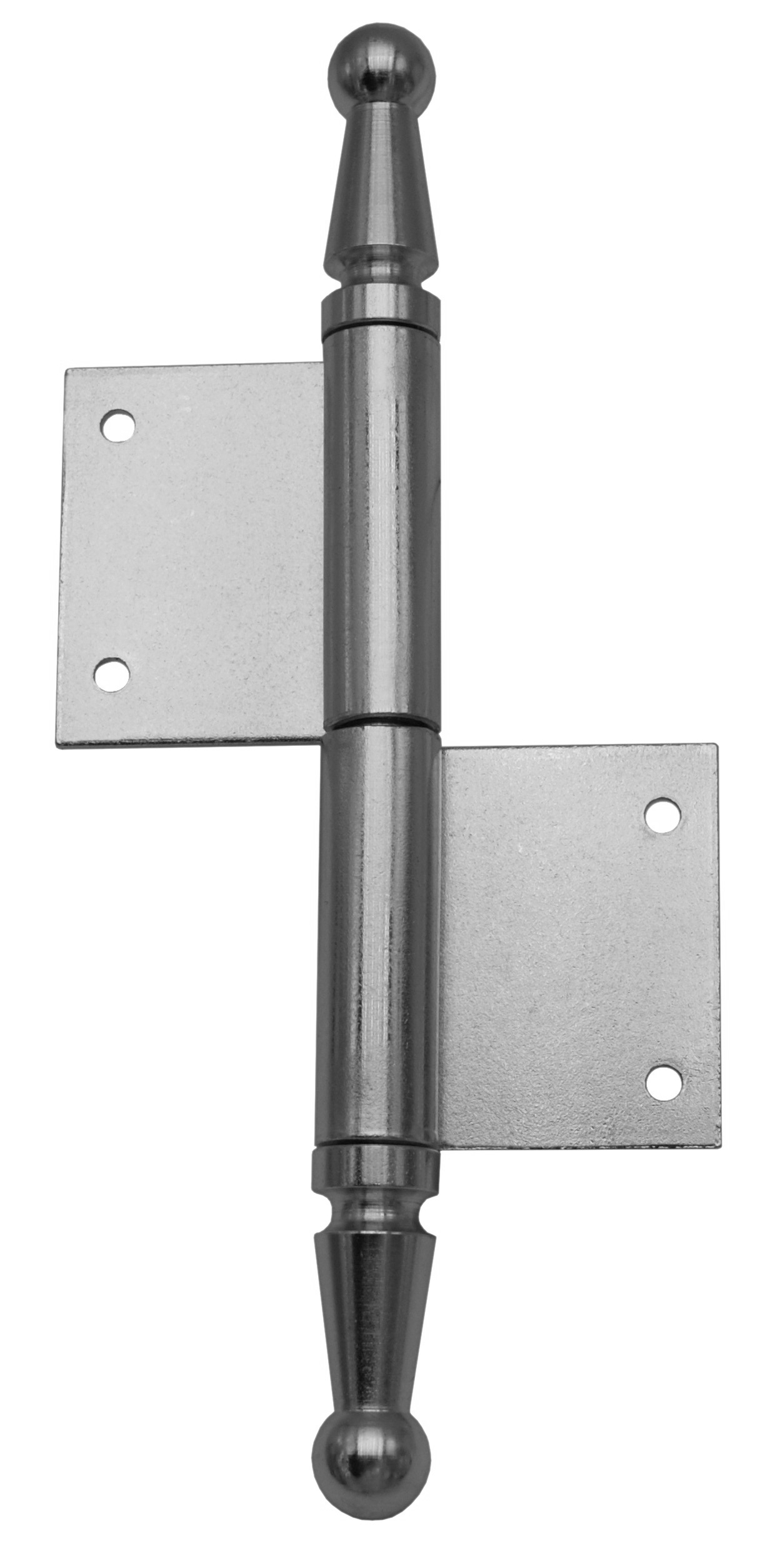

    Window hinge 80 UR01 R

    Catalog number 9162
    Load 15.00
    Type of hinge Complete hinge
    Orientation of door or window For right window (frame)
    Ending Decorative ending UR01
    Main material Steel
    Gripping Mortising
    Czech product Yes

    9162

    Drawing

    right window

    Available variants

    cover Code type package size without VAT / MJ* incl. VAT / MJ* demand
    Code: 91620000 name: Without surface finish package size: 50 pcs without VAT / MJ*: 3.71 incl. VAT / MJ*: 4.49
    Code: 91620240 name: Black lacquered RAL9005 package size: 30 pcs without VAT / MJ*: 4.63 incl. VAT / MJ*: 5.60
    Code: 91620890 name: Brass plated shiny package size: 30 pcs without VAT / MJ*: 5.46 incl. VAT / MJ*: 6.61

    No item matches your selection.

    *Prices for MJ =for 1 piece (or 1 set)are indicative. When purchasing a smaller quantity than the package, a surcharge of up to 10% of the price of the goods may be charged.

    UPON REQUEST variants – when ordering less than 100 pcs – extra charge 10%.

    Hinge with decorative ending. It is used for turning connection of window wing and frame.
