• Catalog sheet
    9080

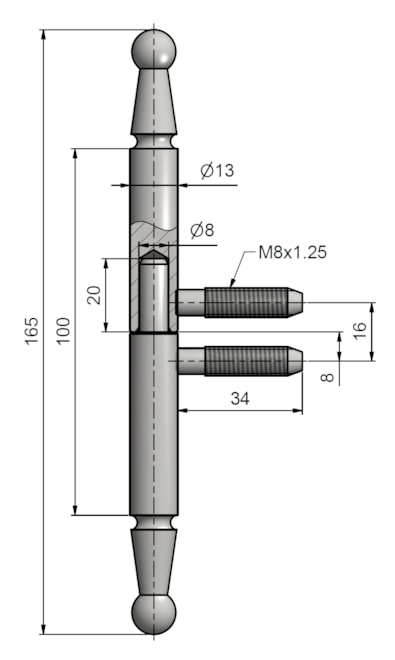

    Drawing

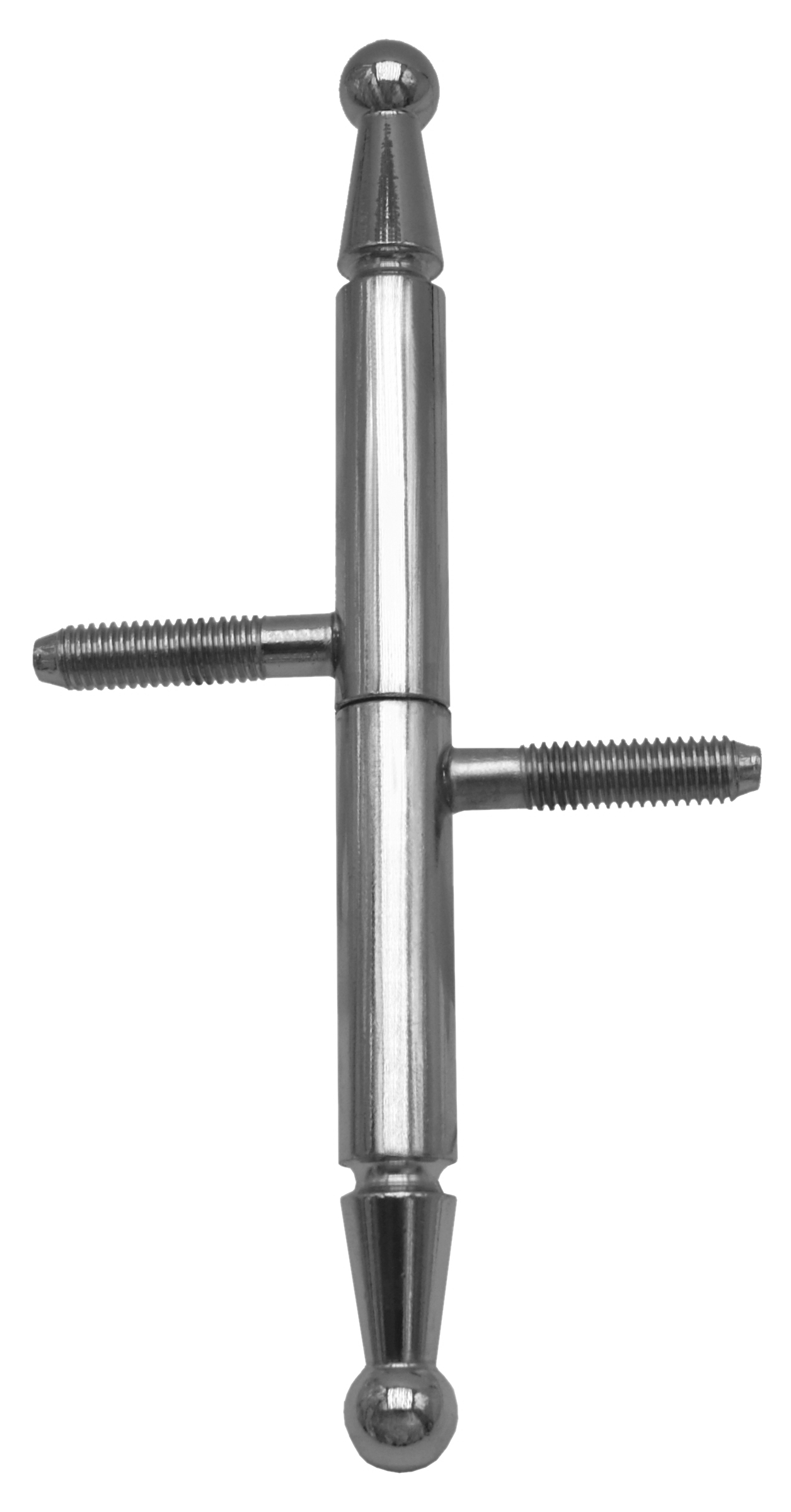

    Window hinge 13x100 UR01

    Catalog number 9080
    Load 15.00
    Type of hinge Complete hinge
    Orientation of door or window For right and left window (frame)
    Ending Decorative ending UR01
    Main material Steel
    Gripping Screw in
    Diameter of bolt rivet(s) M8
    Czech product Yes

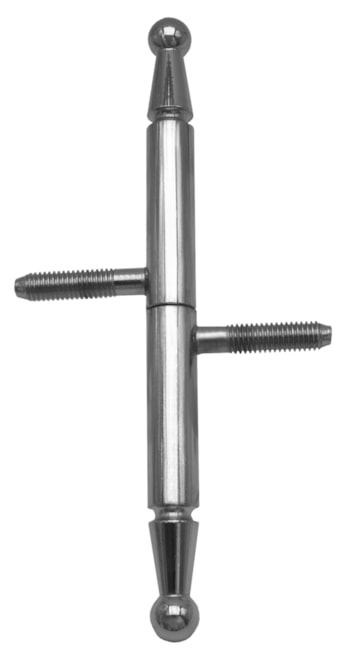

    9080

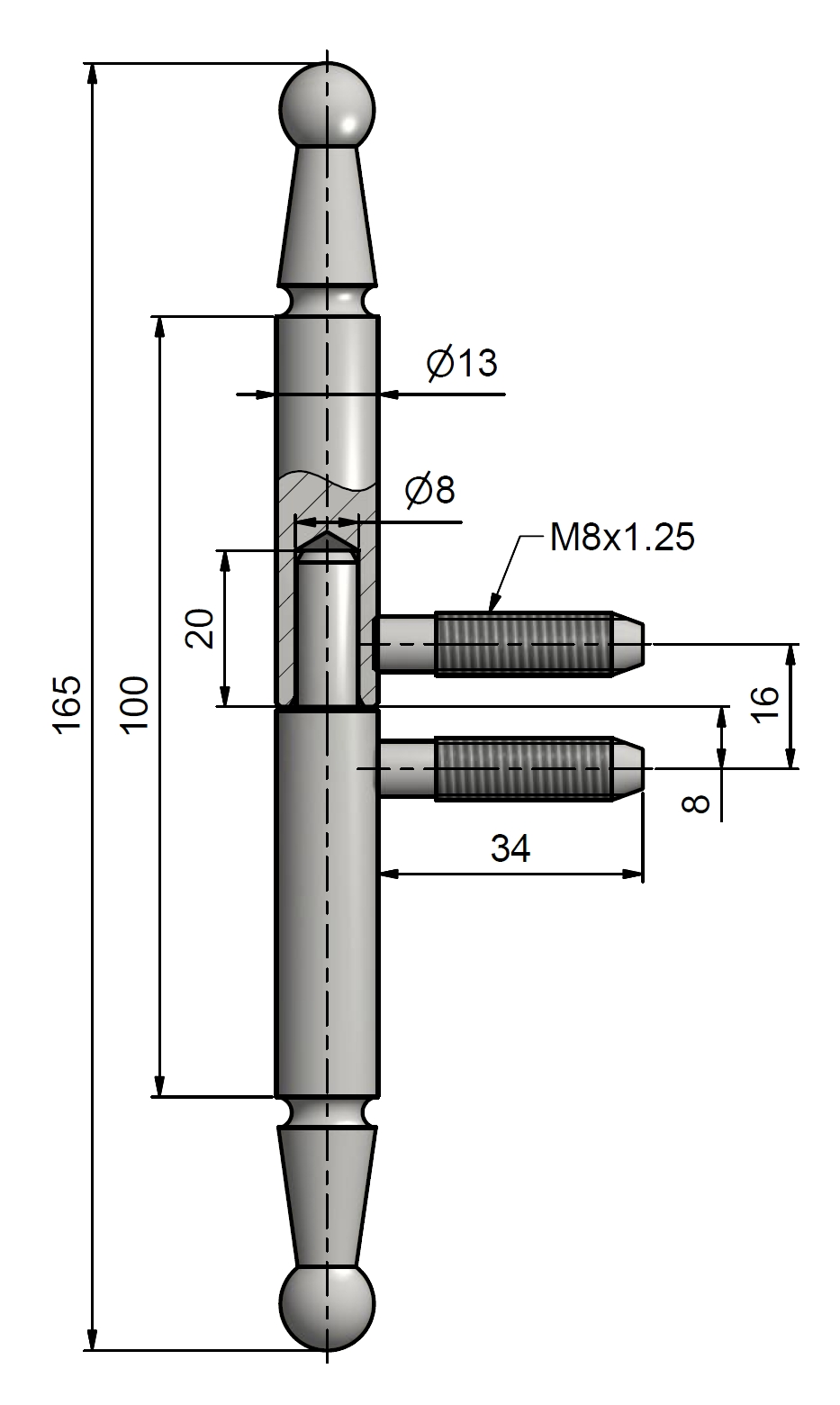

    Drawing

    Available variants

    cover Code type package size without VAT / MJ* incl. VAT / MJ* demand
    Code: 90800530 name: Blue zinc package size: 50 pcs without VAT / MJ*: 3.75 incl. VAT / MJ*: 4.54
    Code: 90802000 name: Without surface finish package size: 50 pcs without VAT / MJ*: 3.63 incl. VAT / MJ*: 4.39
    Code: 90802700 name: Nickel shiny package size: 50 pcs without VAT / MJ*: 4.04 incl. VAT / MJ*: 4.89
    Code: 90802800 name: Brass plated shiny package size: 50 pcs without VAT / MJ*: 4.30 incl. VAT / MJ*: 5.20
    Code: 90802B90 name: Old brass package size: 50 pcs without VAT / MJ*: 4.30 incl. VAT / MJ*: 5.20
    Code: 90803340 name: Black laquer RAL9005 package size: 50 pcs without VAT / MJ*: 3.92 incl. VAT / MJ*: 4.74
    Code: 908033B0 name: White laquer RAL1013 package size: 50 pcs without VAT / MJ*: 3.92 incl. VAT / MJ*: 4.74
    Code: 908033C0 name: White lacquer RAL9010 package size: 50 pcs without VAT / MJ*: 3.92 incl. VAT / MJ*: 4.74
    Code: 90808D00 name: Nickel satin package size: 50 pcs without VAT / MJ*: 4.67 incl. VAT / MJ*: 5.65

    No item matches your selection.

    *Prices for MJ =for 1 piece (or 1 set)are indicative. When purchasing a smaller quantity than the package, a surcharge of up to 10% of the price of the goods may be charged.

    UPON REQUEST variants – when ordering less than 100 pcs – extra charge 10%.

    Hinge with decorative ending. It is used for turning connection of window wing and frame.
