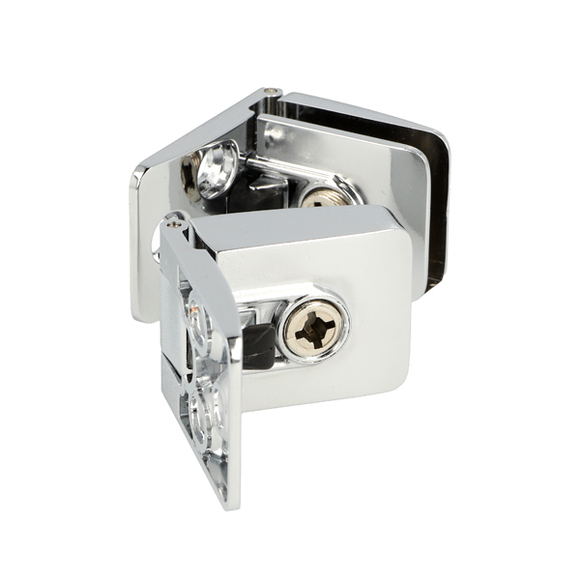

SQUARE II glass door hinge-top+bottom

Name: SQUARE II glass door hinge-top+bottom
SKU: Z10.15.06.211
Price: 12.56 EUR
Availability: InStock

cat. no.: Z10.15.06.211

Load: 0 (=not determined)

Main material: Alloy ZAMAK

print cat. sheet

Use

Two parts (1 set) of hinge for glass door to put it on the top and bottom. Maximal dimension of door 1000x400 mm. Glass thickness 4-6 mm.

Z10.15.06.211

Drawing

3-15_06_211-5a

4-15_06_211-5b

The visual difference the old SQUARE and the new SQUARE II

Width of gaps

Available variants

	code	type	package size	without VAT / MJ*	incl. VAT / MJ*	demand
	code: Z10.15.06.211-5	name: Nickel satin	package size: 10 sets	without VAT / MJ*: €10.38	incl. VAT / MJ*: €12.56

*Prices for MJ = for 1 piece (or 1 set)are indicative. When purchasing a smaller quantity than the package, a surcharge of up to 10% of the price of the goods may be charged.

Available variants

	code	name	package size	without VAT / MJ*	incl. VAT / MJ*
	code: Z10.15.06.211-5	name: Nickel satin	package size: 10 sets	without VAT / MJ*: €10.38	incl. VAT / MJ*: €12.56

*Prices for MJ = for 1 piece (or 1 set)are indicative. When purchasing a smaller quantity than the package, a surcharge of up to 10% of the price of the goods may be charged.
