Piano hinge stainless steel 25x0,6x3480/60

Piano hinge stainless steel 25x0,6x3480/60
Piano hinge stainless steel 25x0,6x3480/60
Piano hinge stainless steel 25x0,6x3480/60
Piano hinge stainless steel 25x0,6x3480/60

cat. no.: 1180

Main material: Stainless steel
We recommend used: screws of ø 2,5 mm minimum length 16 mm
Czech product: Yes
Open width of hinges A (mm): 25
Length of hinges E (mm): 3480
Thickness B (mm): 0,6
Distance between holes F (mm): 60
Diameter of pin G (mm): 2
Distance of hole D (mm): 4,25
Lenght of joint C (mm): 15

Use

Lenght can be adjusted by slitting. Suitable for furniture, chest,..

1180

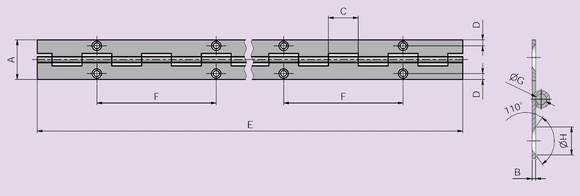

Drawing

Available variants

code type package size without VAT / MJ* incl. VAT / MJ* demand
code: 11800004 name: Without surface finish package size: 100 pcs without VAT / MJ*: €19.76 incl. VAT / MJ*: €23.91

*Prices for MJ = for 1 piece (or 1 set)are indicative. When purchasing a smaller quantity than the package, a surcharge of up to 10% of the price of the goods may be charged.

Available variants

code name package size without VAT / MJ* incl. VAT / MJ*
code: 11800004 name: Without surface finish package size: 100 pcs without VAT / MJ*: €19.76 incl. VAT / MJ*: €23.91

*Prices for MJ = for 1 piece (or 1 set)are indicative. When purchasing a smaller quantity than the package, a surcharge of up to 10% of the price of the goods may be charged.
