Piano hinge PMS 40x0,6x910/70 with bend

Piano hinge PMS 40x0,6x910/70 with bend
Piano hinge PMS 40x0,6x910/70 with bend
Piano hinge PMS 40x0,6x910/70 with bend
Piano hinge PMS 40x0,6x910/70 with bend

cat. no.: 7207

Main material: Steel
We recommend used: screws of ø 2,5 mm minimum length 16 mm
Czech product: Yes
Open width of hinges A (mm): 40
Length of hinges E (mm): 910
Thickness B (mm): 0,6
Distance between holes F (mm): 70
Diameter of pin G (mm): 1,8
Distance of hole D (mm): 8
Lenght of joint C (mm): 17,5

Use

Lenght can be adjusted by slitting. Suitable for furniture, chest,...

7207

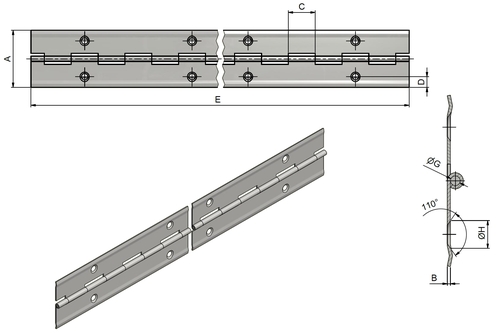

Drawing

Available variants

code type package size without VAT / MJ* incl. VAT / MJ* demand
code: 72073804 name: Brass plated shiny package size: 100 pcs without VAT / MJ*: €3.12 incl. VAT / MJ*: €3.78

*Prices for MJ = for 1 piece (or 1 set)are indicative. When purchasing a smaller quantity than the package, a surcharge of up to 10% of the price of the goods may be charged.

Available variants

code name package size without VAT / MJ* incl. VAT / MJ*
code: 72073804 name: Brass plated shiny package size: 100 pcs without VAT / MJ*: €3.12 incl. VAT / MJ*: €3.78

*Prices for MJ = for 1 piece (or 1 set)are indicative. When purchasing a smaller quantity than the package, a surcharge of up to 10% of the price of the goods may be charged.
