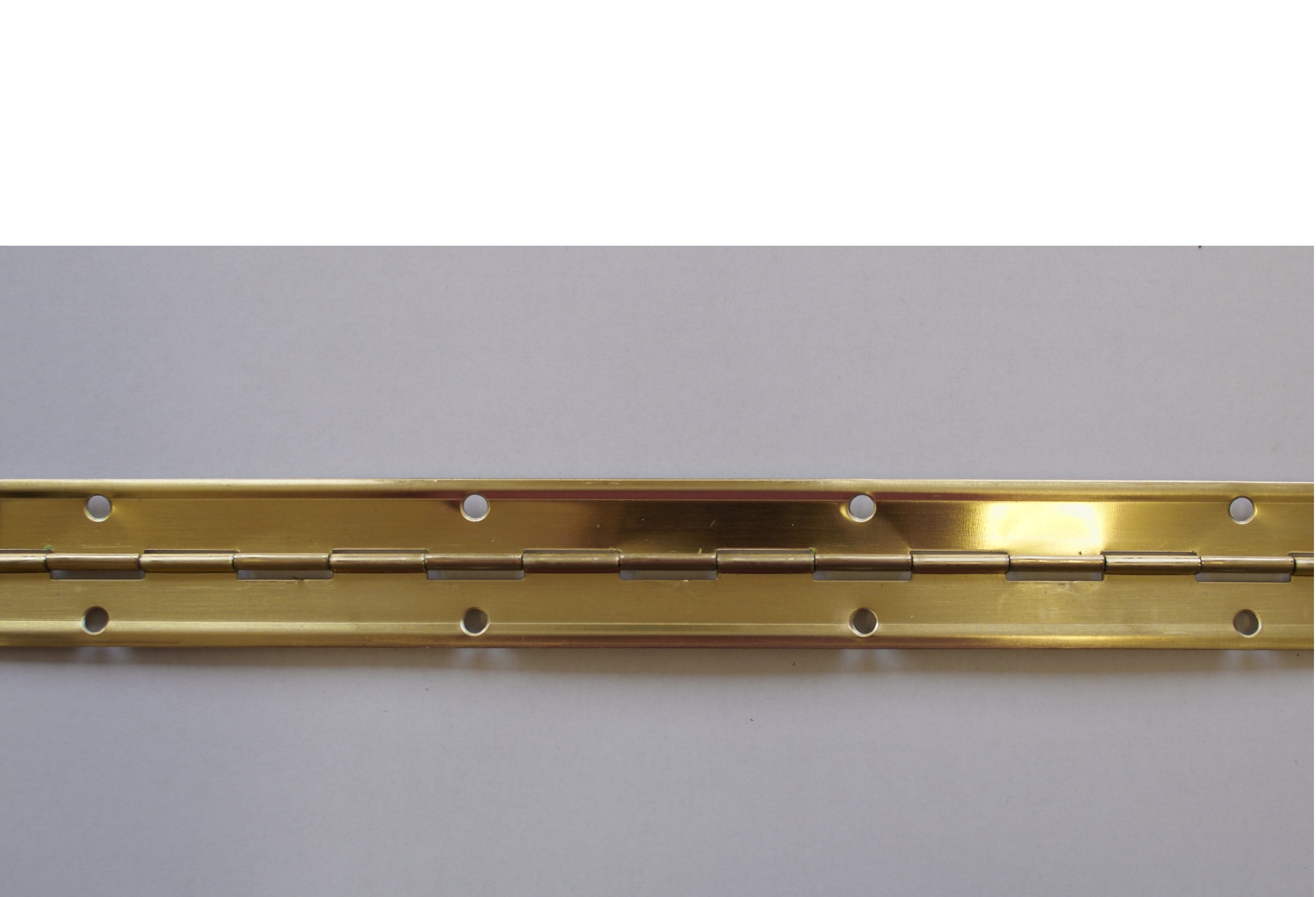

    Piano hinge 40x0,6x900/70 without bend Brass plated shiny

    Catalog number 72063804
    Main material Steel
    We recommend used screws of ø 2,5 mm minimum length 16 mm
    Czech product Yes
    Open width of hinges A (mm) 40
    Length of hinges E (mm) 900
    Thickness B (mm) 0,6
    Distance between holes F (mm) 70
    Diameter of pin G (mm) 1,8
    Distance of hole D (mm) 8
    Lenght of joint C (mm) 17,5

    Piano hinge 40x0,6x900/70 without bend Brass plated shiny

    Available variants

    cover Code type package size without VAT / MJ* incl. VAT / MJ* demand
    Code: 72063804 name: Brass plated shiny package size: 100 pcs without VAT / MJ*: 3.12 incl. VAT / MJ*: 3.78

    No item matches your selection.

    *Prices for MJ =for 1 piece (or 1 set)are indicative. When purchasing a smaller quantity than the package, a surcharge of up to 10% of the price of the goods may be charged.

    UPON REQUEST variants – when ordering less than 100 pcs – extra charge 10%.

    Lenght can be adjusted by slitting. Suitable for furniture, chest,...
