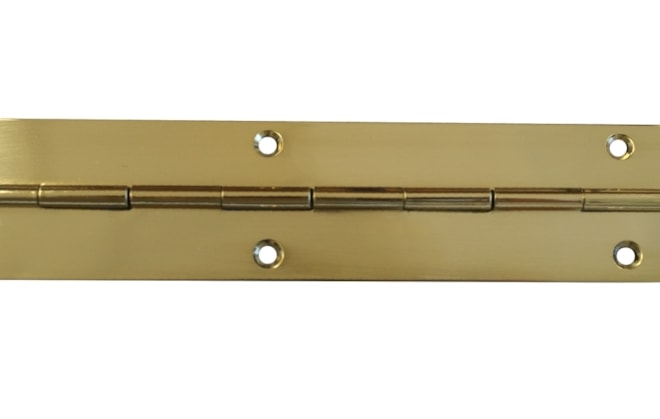

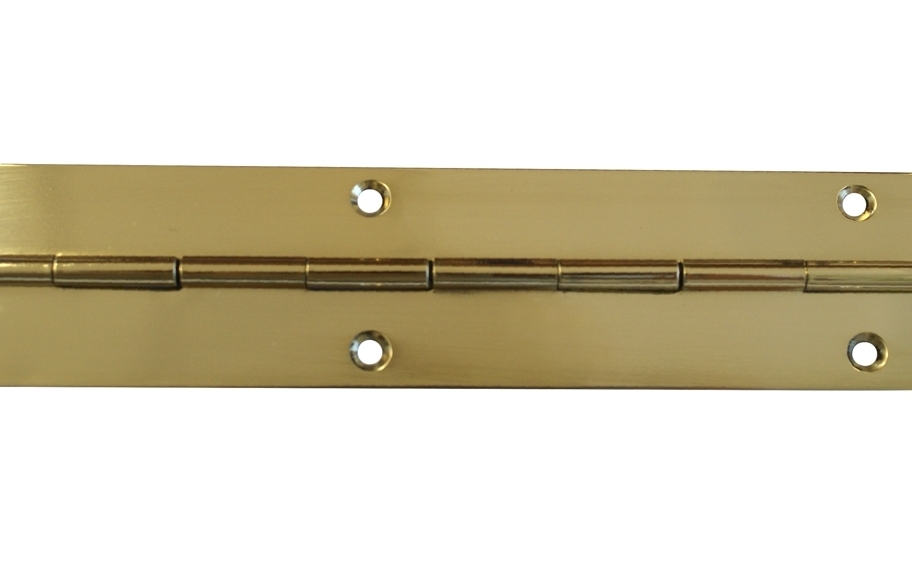

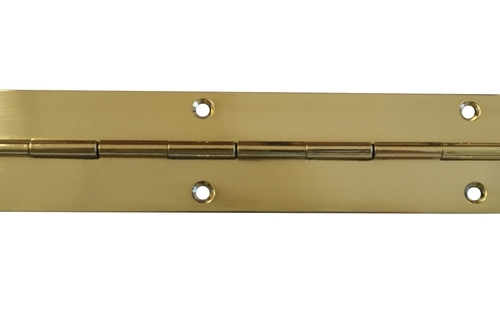

1202

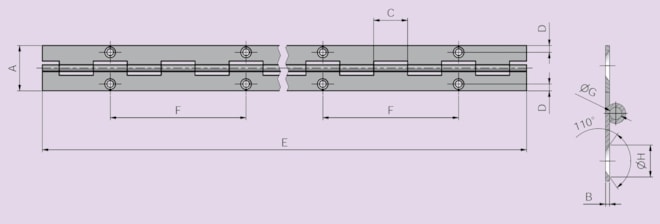

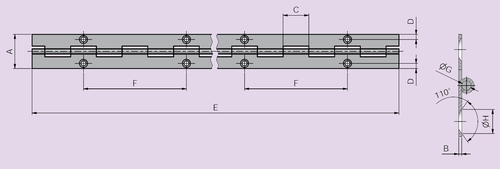

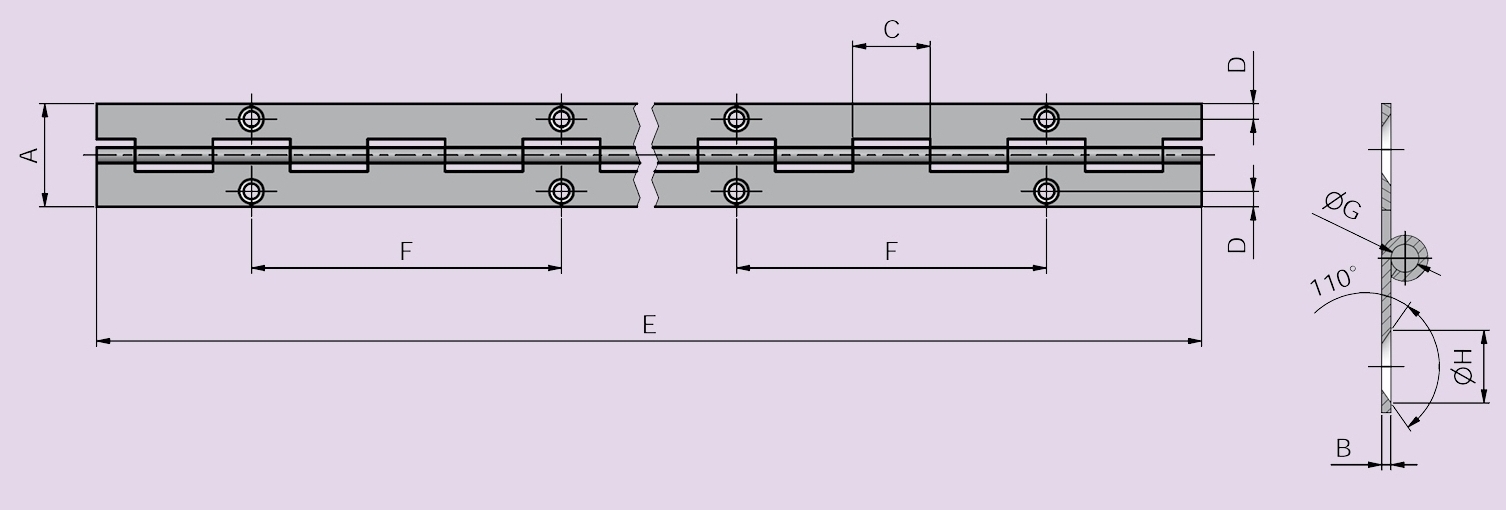

Drawing
Available variants
Lenght can be adjusted by slitting. Suitable for furniture, chest,..
Catalog number | 1202 |
Main material | Steel |
We recommend used | screws of ø 2,5 mm minimum length 16 mm |
Czech product | Yes |
Open width of hinges A (mm) | 32 |
Length of hinges E (mm) | 1980 |
Thickness B (mm) | 0,6 |
Distance between holes F (mm) | 60 |
Diameter of pin G (mm) | 1,8 |
Distance of hole D (mm) | 6 |
Lenght of joint C (mm) | 15 |
Catalog number | 1202 |
Main material | Steel |
We recommend used | screws of ø 2,5 mm minimum length 16 mm |
Czech product | Yes |
Open width of hinges A (mm) | 32 |
Length of hinges E (mm) | 1980 |
Thickness B (mm) | 0,6 |
Distance between holes F (mm) | 60 |
Diameter of pin G (mm) | 1,8 |
Distance of hole D (mm) | 6 |
Lenght of joint C (mm) | 15 |
1202
Drawing
Lenght can be adjusted by slitting. Suitable for furniture, chest,..
