Piano hinge PMS 25x0,6x1980/60

Name: Piano hinge PMS 25x0,6x1980/60
SKU: 1102
Price: 5.4 EUR
Availability: InStock

cat. no.: 1102

Main material: Steel

We recommend used: screws of ø 2,5 mm minimum length 16 mm

Czech product: Yes

Open width of hinges A (mm): 25

Length of hinges E (mm): 1980

Thickness B (mm): 0,6

Distance between holes F (mm): 60

Diameter of pin G (mm): 1,8

Distance of hole D (mm): 4,25

Lenght of joint C (mm): 15

print cat. sheet

Use

Lenght can be adjusted by slitting. Suitable for furniture, chest,..

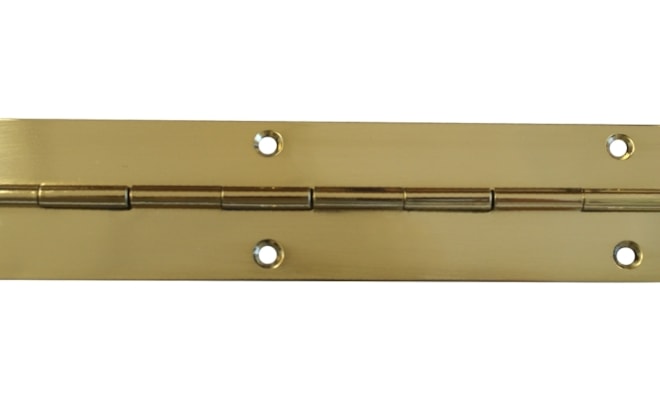

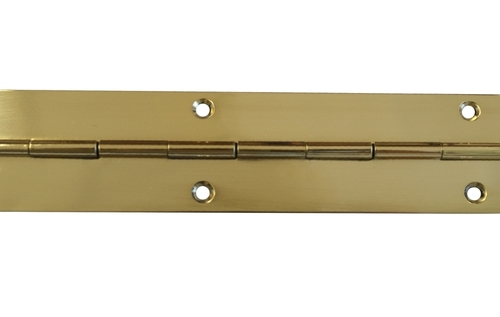

1102

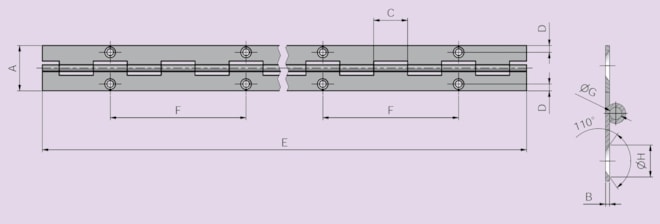

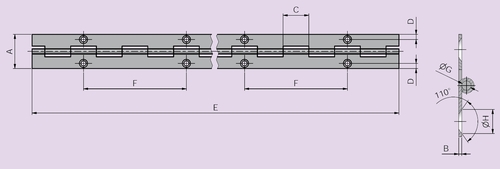

Drawing

Available variants

	code	type	package size	without VAT / MJ*	incl. VAT / MJ*	demand
	code: 11023804	name: Brass plated shiny	package size: 100 pcs	without VAT / MJ*: €4.46	incl. VAT / MJ*: €5.40

*Prices for MJ = for 1 piece (or 1 set)are indicative. When purchasing a smaller quantity than the package, a surcharge of up to 10% of the price of the goods may be charged.

Available variants

	code	name	package size	without VAT / MJ*	incl. VAT / MJ*
	code: 11023804	name: Brass plated shiny	package size: 100 pcs	without VAT / MJ*: €4.46	incl. VAT / MJ*: €5.40

*Prices for MJ = for 1 piece (or 1 set)are indicative. When purchasing a smaller quantity than the package, a surcharge of up to 10% of the price of the goods may be charged.
