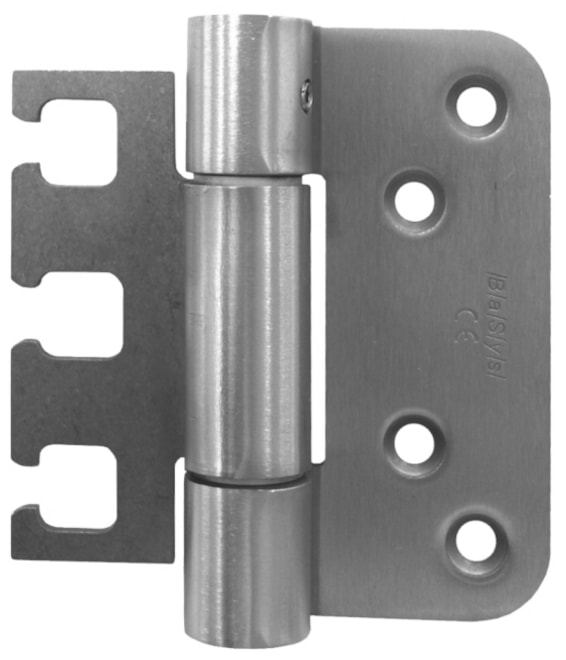

Z11.37725.

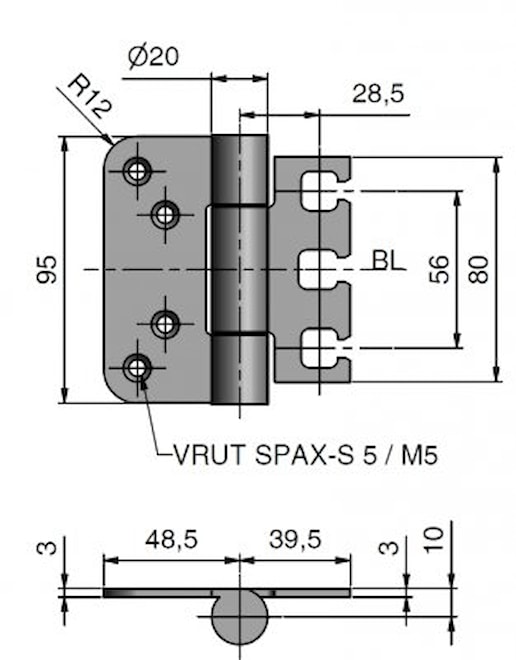

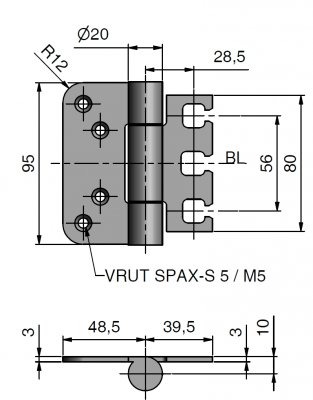

Drawing

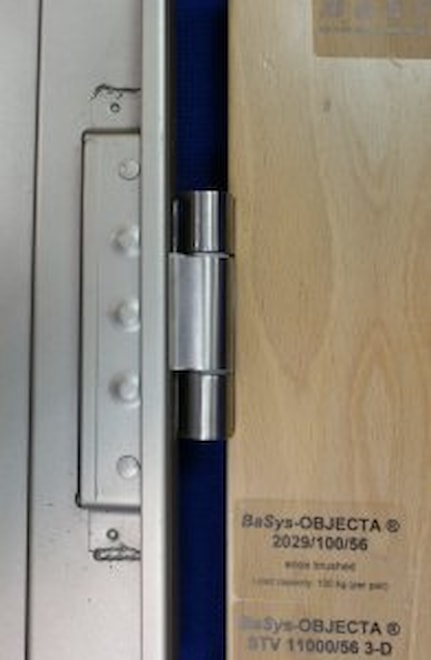

Hinge fording

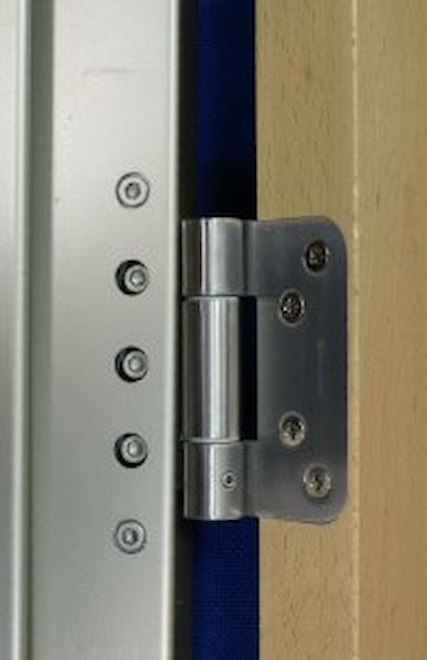

Hinge fording

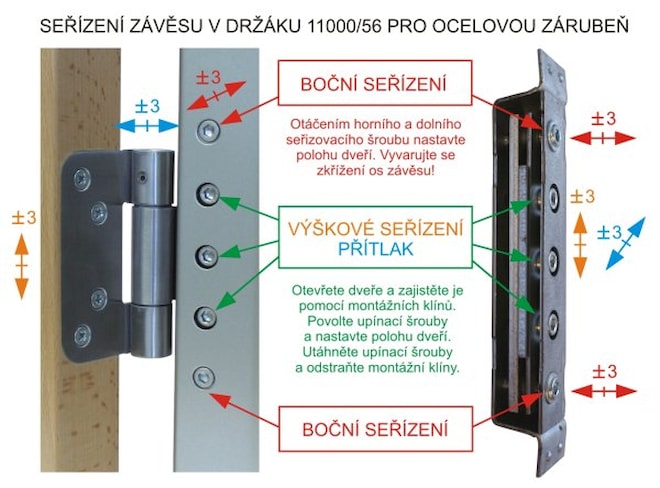

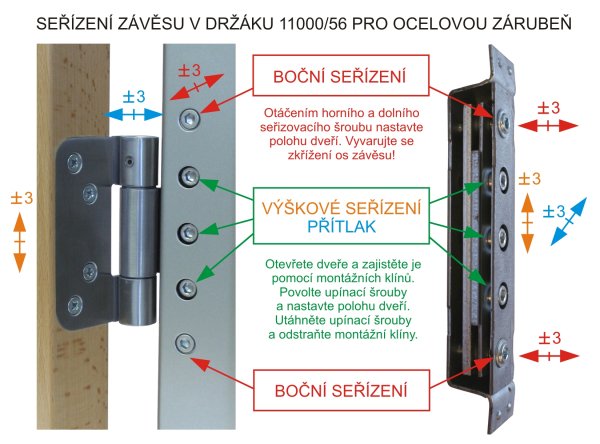

Regulation
Available variants

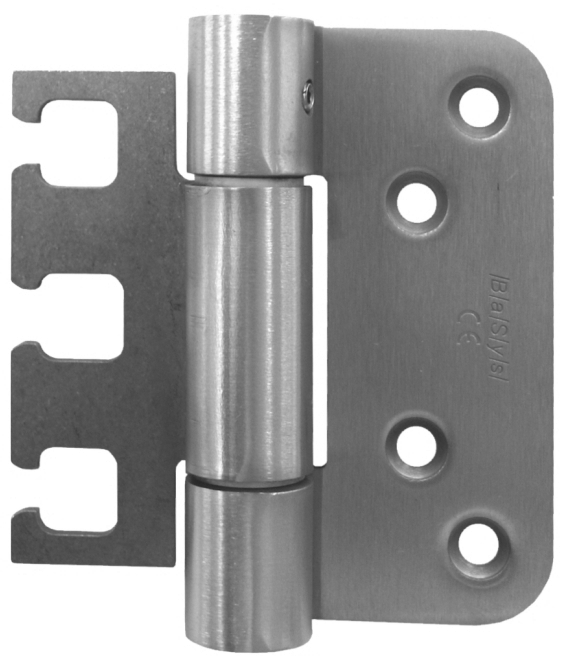

Door hinge in a modern stainless steel execution for non rebated doors. The hinge can be adjusted in three ways.
Catalog number | Z11.37725. |
Load | 40.00 |
Type of hinge | Complete hinge |
Door | Interior , Exterior , Object |
Orientation of door or window | For right and left door (frame) |
According to material of door leaf | Wood |
According to door execution | Non rebated |
According to doorframe | Metal |
Ending | Without decorative ending |
Main material | Stainless steel |
Fire resistance | no |
Gripping | Into fixing element |
We recommend used | Screws of ø 5 mm minimum length 50 mm |
Catalog number | Z11.37725. |
Load | 40.00 |
Type of hinge | Complete hinge |
Door | Interior , Exterior , Object |
Orientation of door or window | For right and left door (frame) |
According to material of door leaf | Wood |
According to door execution | Non rebated |
According to doorframe | Metal |
Ending | Without decorative ending |
Main material | Stainless steel |
Fire resistance | no |
Gripping | Into fixing element |
We recommend used | Screws of ø 5 mm minimum length 50 mm |
Z11.37725.
Drawing
Hinge fording
Hinge fording
Regulation
Door hinge in a modern stainless steel execution for non rebated doors. The hinge can be adjusted in three ways.
