• Catalog sheet

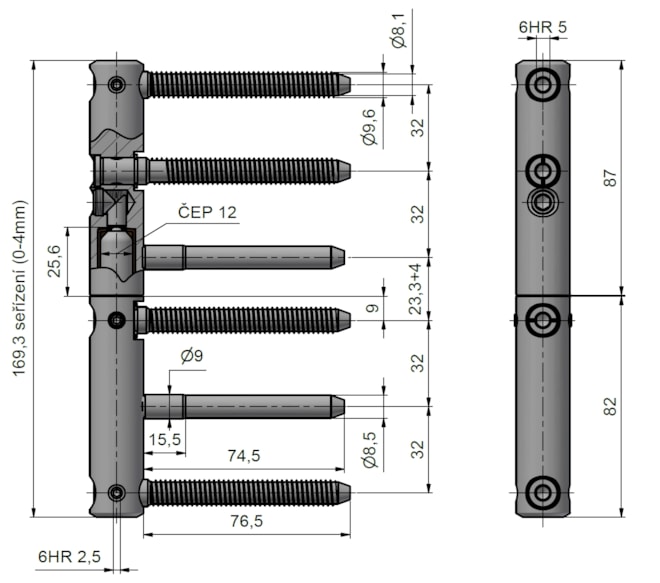

    Drawing

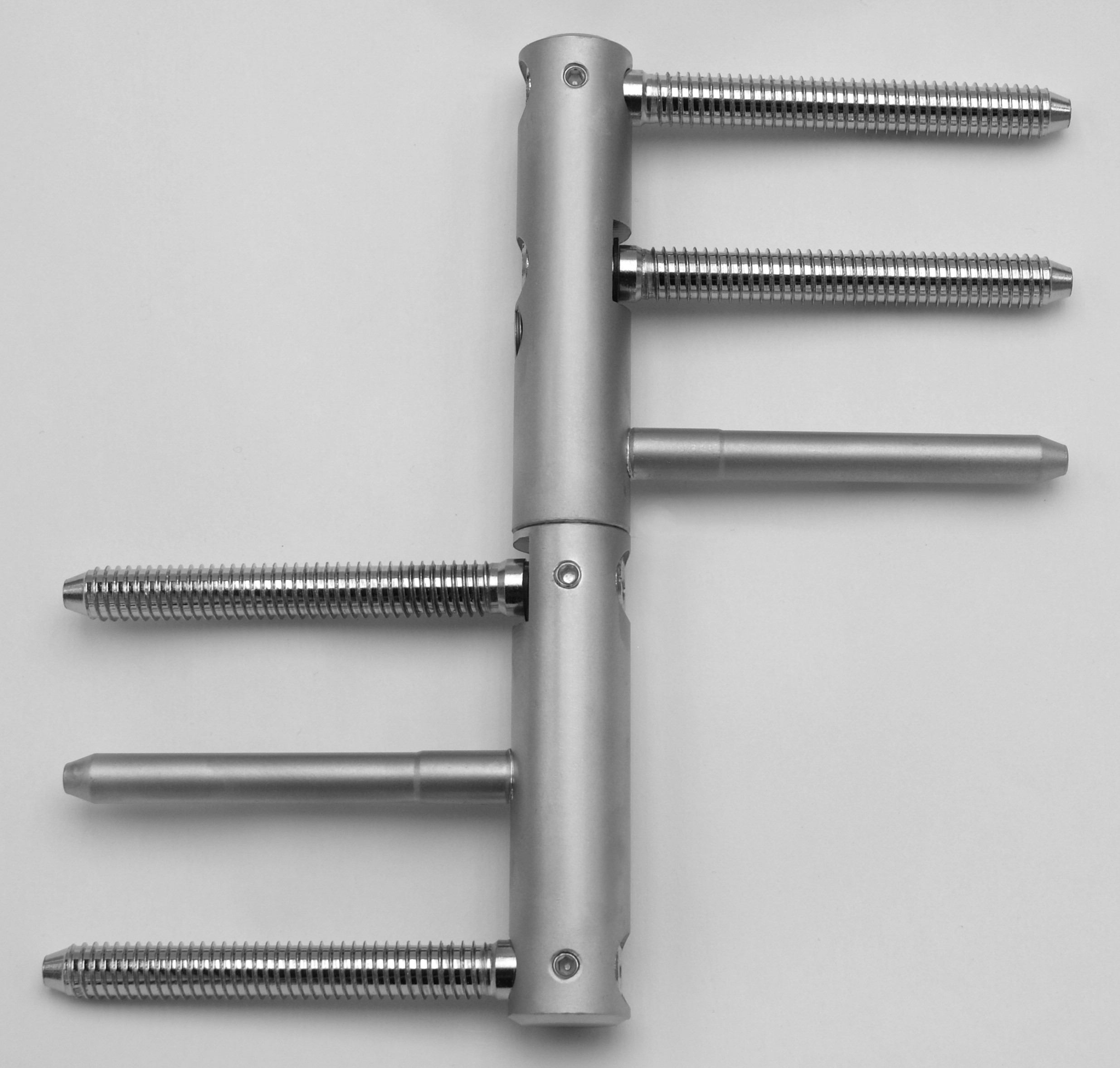

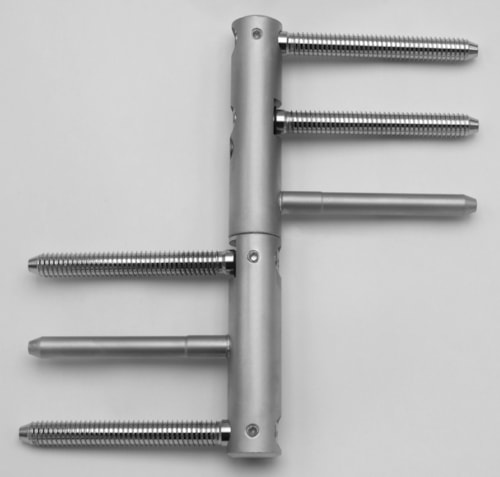

    Hinge TRIO 20 MAX BZ PH TR 76

    Catalog number 5523
    Load 60.00
    Type of hinge Complete hinge
    Door Exterior
    Orientation of door or window For right and left door (frame)
    According to material of door leaf Wood
    According to door execution Rebate
    According to doorframe Solid wood
    Ending Without decorative ending
    Main material Steel
    Fire resistance yes (appropriate for fire protection testing)
    Gripping Screw in
    Diameter of bolt rivet(s) Special screw-thread into wood ø 9.6
    Bolt(s) lenght 76,6 mm
    Plug high 25,6 mm
    Czech product Yes

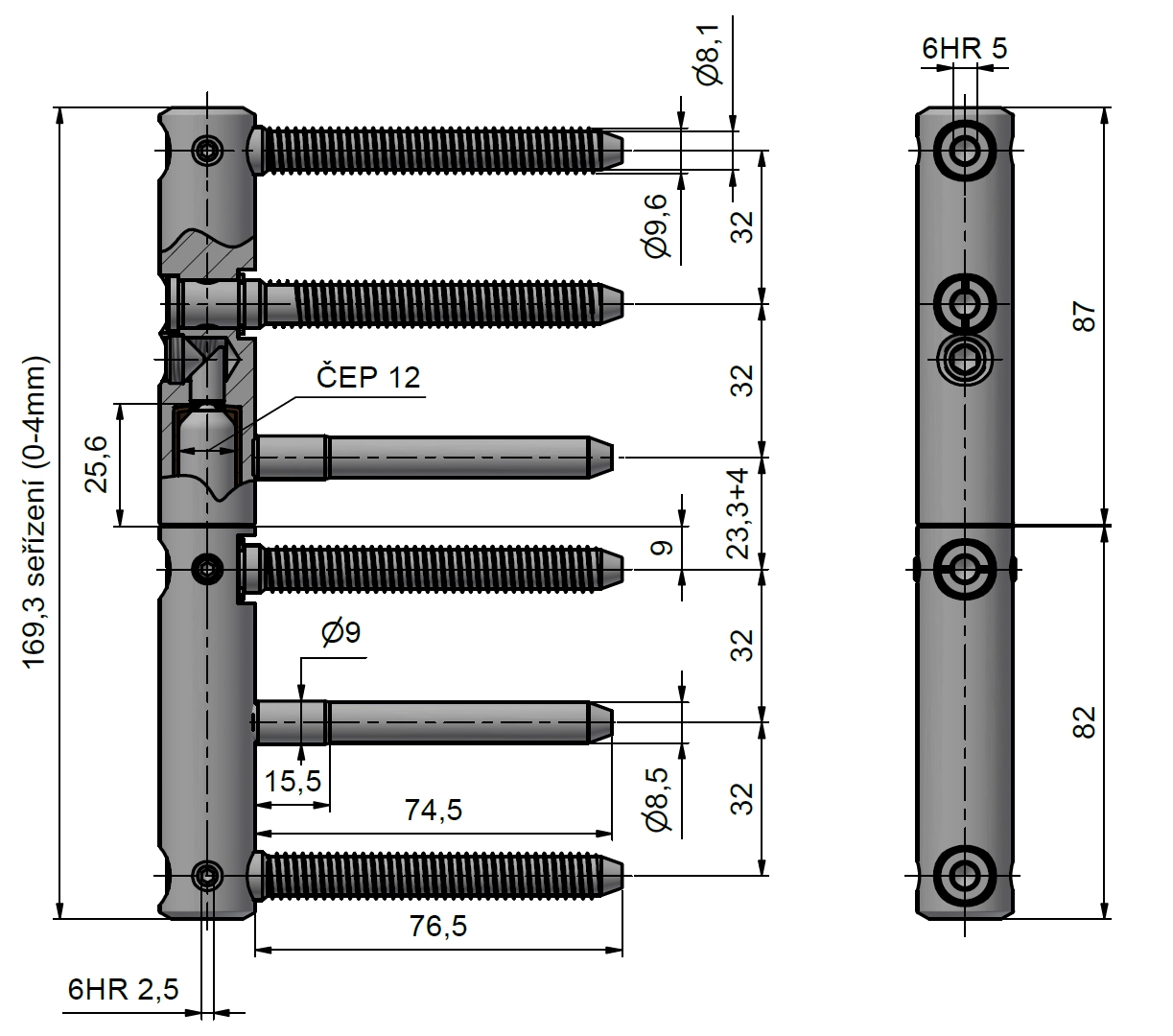

    Drawing


    Available variants

    cover Code type package size without VAT / MJ* incl. VAT / MJ* demand
    detail
    		Code: 55230530 name: Blue zinc New package size: 20 pcs without VAT / MJ*: € 11.44 incl. VAT / MJ*: € 13.84
    detail
    		Code: 55232D00 name: Nickel satin New package size: 20 pcs without VAT / MJ*: € 13.44 incl. VAT / MJ*: € 16.26

    No item matches your selection.

    *Prices for MJ =for 1 piece (or 1 set)are indicative. When purchasing a smaller quantity than the package, a surcharge of up to 10% of the price of the goods may be charged.

    UPON REQUEST variants – when ordering less than 100 pcs – extra charge 10%.

    3D adjustable door hinge with protection against getting unscrewed suitable for interior and lighter entrance doors with wood door frame. Load for 3 hinges - 160 kg.

    Hinges are suitable for doors with self-clossing equipment: Self-closing equipment without the end stop requires hinges rated for a door 20% heavier than its actual weight.
    This effect is even higher for self-closing equipment with the end stop, for which the door‘s effi cient weight is to be increased by 75%.

    The hinge is appropriate for fire protection testing. Warning: The fire-protection hinges have to be tested within the entire set, i.e., together with the door and the frame!
