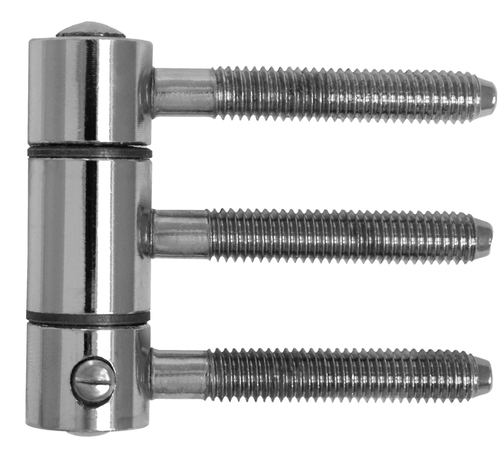

Hinge to screw of three parts 18x55CL 3xM8

Hinge to screw of three parts 18x55CL 3xM8
Hinge to screw of three parts 18x55CL 3xM8
Hinge to screw of three parts 18x55CL 3xM8
Hinge to screw of three parts 18x55CL 3xM8
Hinge to screw of three parts 18x55CL 3xM8
Hinge to screw of three parts 18x55CL 3xM8
Hinge to screw of three parts 18x55CL 3xM8
Hinge to screw of three parts 18x55CL 3xM8

cat. no.: 9765

Load: 30.00
Type of hinge: Complete hinge
Door: Interior
Orientation of door or window: For right and left door (frame)
According to material of door leaf: Wood
According to door execution: Rebate
According to doorframe: Solid wood
Ending: Without decorative ending
Main material: Steel
Fire resistance: no
Gripping: Screw in
Diameter of bolt rivet(s): M8
Bolt(s) lenght: 50 mm
Czech product: Yes

Use

Hinge for turning connection of door with wooden frame. Plug secures doors against slipping.

9765

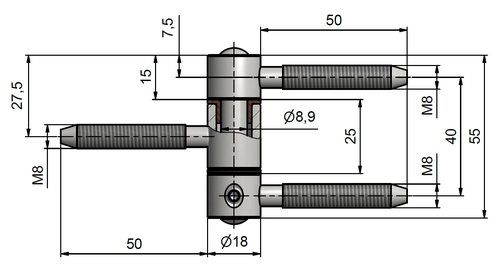

Drawing

hinge forging

4-9765

Available variants

code type package size without VAT / MJ* incl. VAT / MJ* demand
code: 97652510 name: Yellow zinc package size: 25 pcs without VAT / MJ*: €4.21 incl. VAT / MJ*: €5.10
code: 97652530 name: Blue zinc package size: 25 pcs without VAT / MJ*: €4.21 incl. VAT / MJ*: €5.10

*Prices for MJ = for 1 piece (or 1 set)are indicative. When purchasing a smaller quantity than the package, a surcharge of up to 10% of the price of the goods may be charged.

Available variants

code name package size without VAT / MJ* incl. VAT / MJ*
code: 97652510 name: Yellow zinc package size: 25 pcs without VAT / MJ*: €4.21 incl. VAT / MJ*: €5.10
code: 97652530 name: Blue zinc package size: 25 pcs without VAT / MJ*: €4.21 incl. VAT / MJ*: €5.10

*Prices for MJ = for 1 piece (or 1 set)are indicative. When purchasing a smaller quantity than the package, a surcharge of up to 10% of the price of the goods may be charged.
