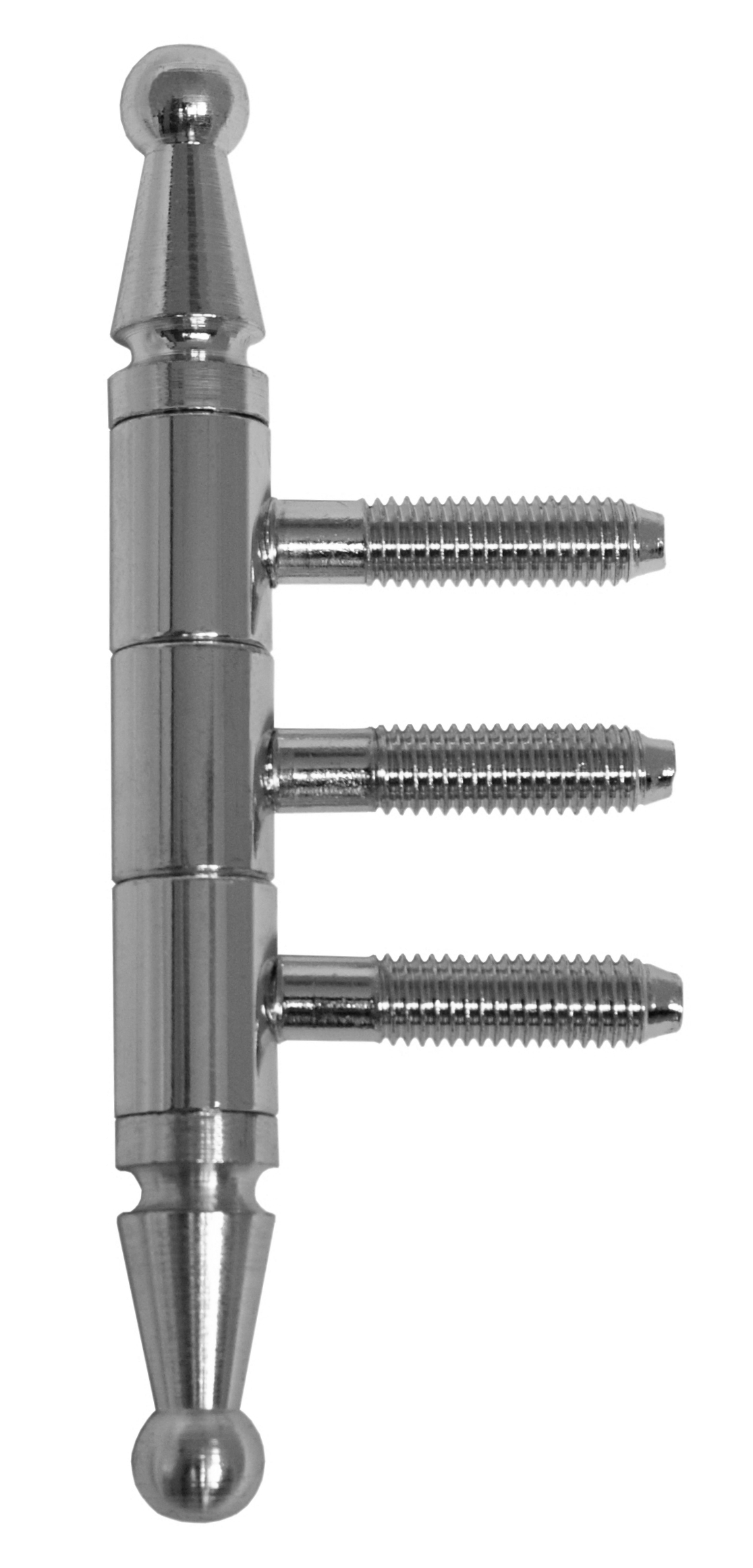

Hinge of three parts UR01 M8/34,5

cat. no.: 9756

Load: 15.00
Type of hinge: Complete hinge
Orientation of door or window: For right and left window (frame)
Ending: Decorative ending UR01
Main material: Steel
Gripping: Screw in
Diameter of bolt rivet(s): M8
Czech product: Yes

Use

Hinge is suitable for turning connection of window wing and window frame. Hinge with decorative ending.

Hinge of three parts UR01 M8/34,5

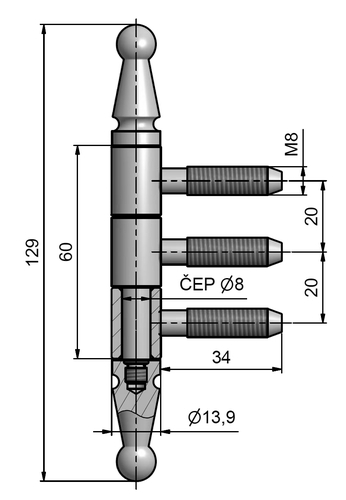

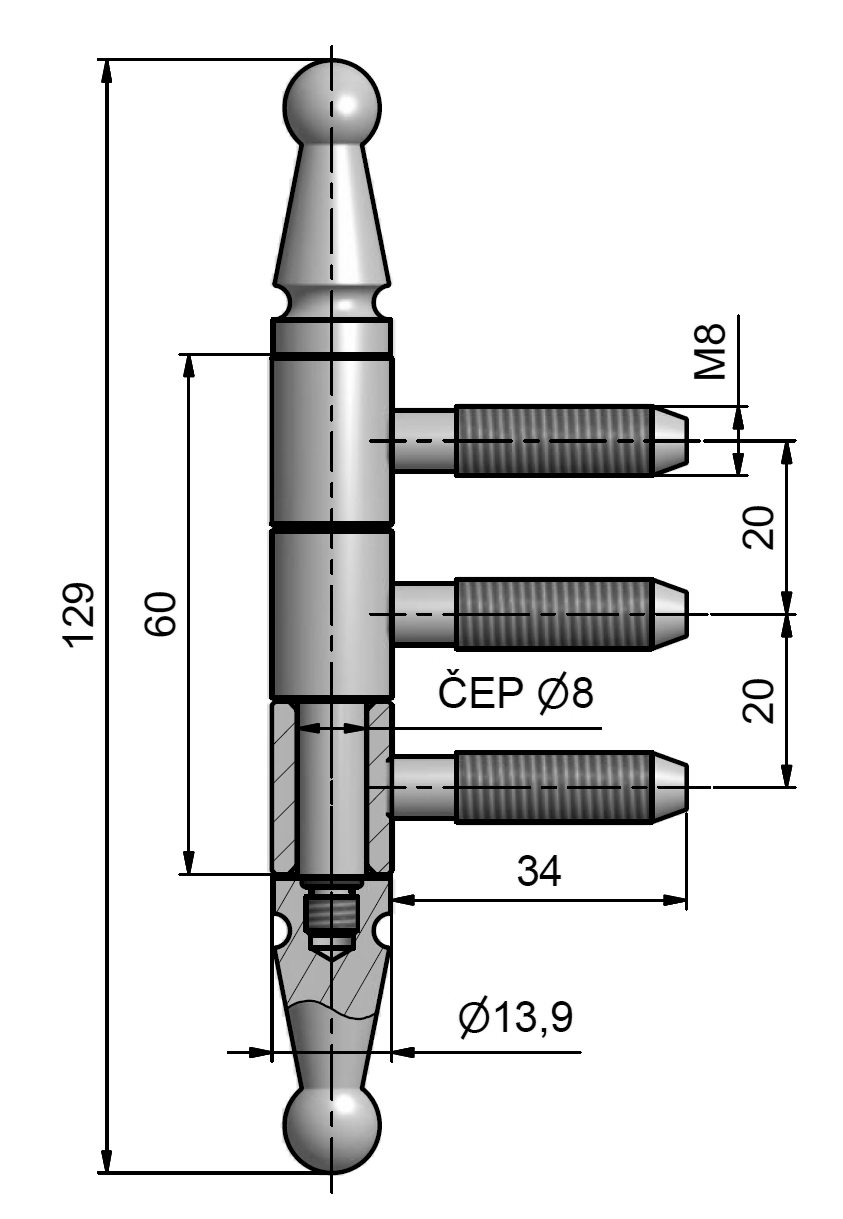

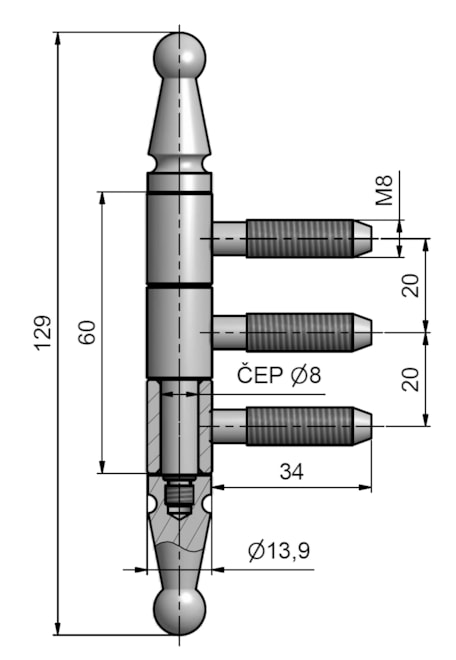

Drawing

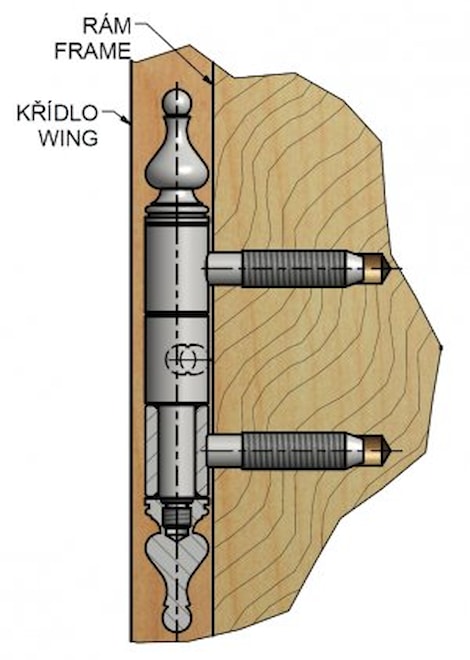

hinge forging

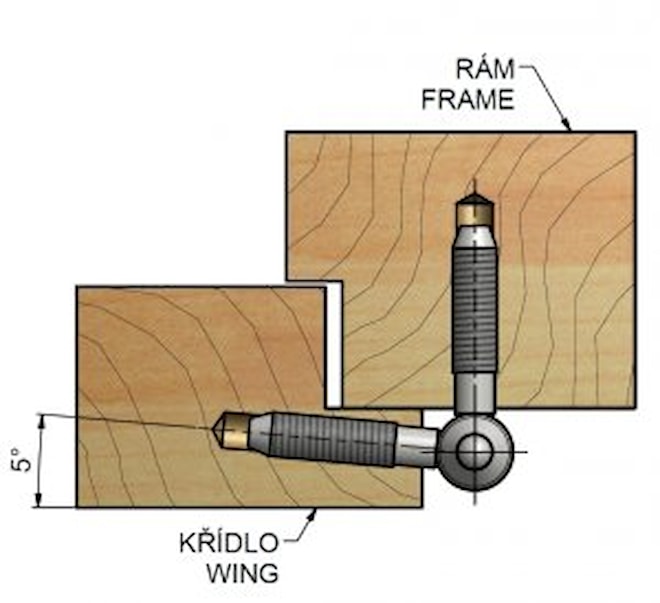

hinge forging

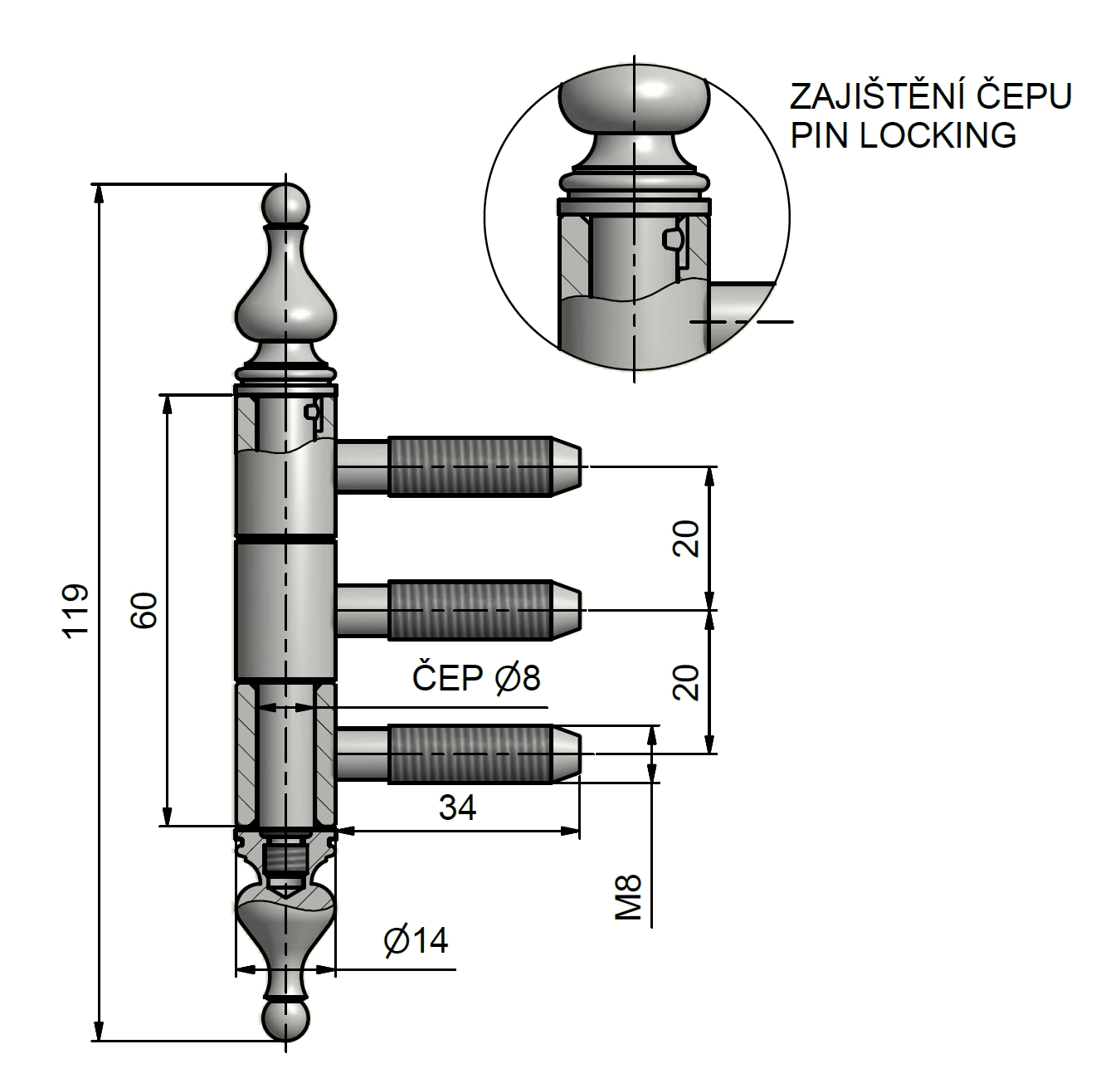

Pin locking

Available variants

code name package size without VAT / MJ* incl. VAT / MJ*
code: 97562800 name: Brass plated shiny package size: 25 pc without VAT / MJ*: €8.02 incl. VAT / MJ*: €9.71
code: 97562B90 name: Old brass package size: 25 pc without VAT / MJ*: €8.02 incl. VAT / MJ*: €9.71
code: 975633C0 name: White lacquer RAL9010 package size: 25 pc without VAT / MJ*: €5.74 incl. VAT / MJ*: €6.94
code: 97568D00 name: Nickel satin package size: 25 pc without VAT / MJ*: €7.90 incl. VAT / MJ*: €9.56

*Prices for MJ = for 1 piece (or 1 set)are indicative. When purchasing a smaller quantity than the package, a surcharge of up to 10% of the price of the goods may be charged.
