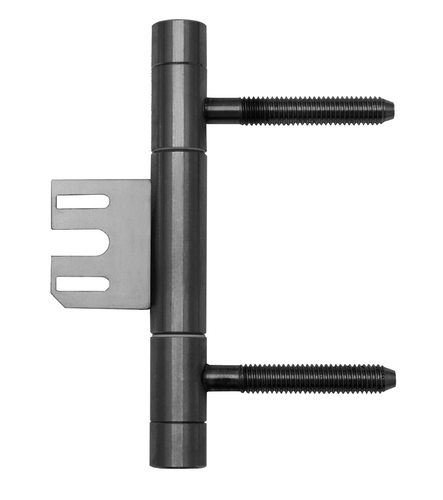

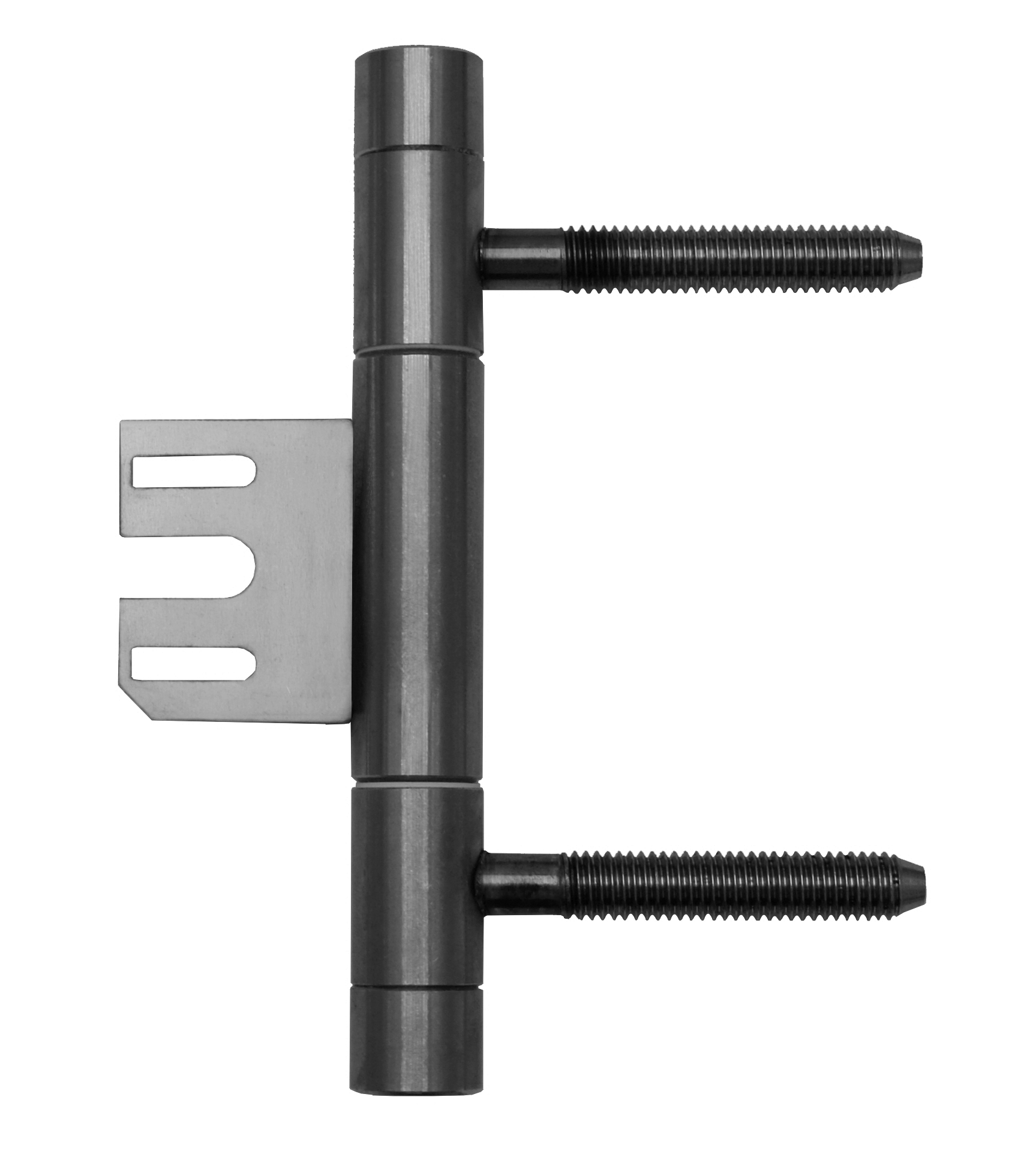

Hinge of three parts 15x90 M8 OZ34 TUKAN stainless steel

cat. no.: 9783

Load: 30.00
Type of hinge: Complete hinge
Door: Interior
Orientation of door or window: For right and left door (frame)
According to material of door leaf: Wood
According to door execution: Rebate
According to doorframe: Metal
Ending: Flat ending UR24
Main material: Stainless steel
Fire resistance: no
Gripping upper part: Screw in
Gripping middle part: Into fixing element
Gripping lowwer part: Screw in
Diameter of bolt rivet(s): M8
Bolt(s) lenght: 50 mm
Czech product: Yes

Use

Hinge of three parts for wooden door and metal frame with straight ending. Advantage is very strong and stable gripping, hight quality material - stainless steel. Suitable for doors with self-closing equipment.

9783

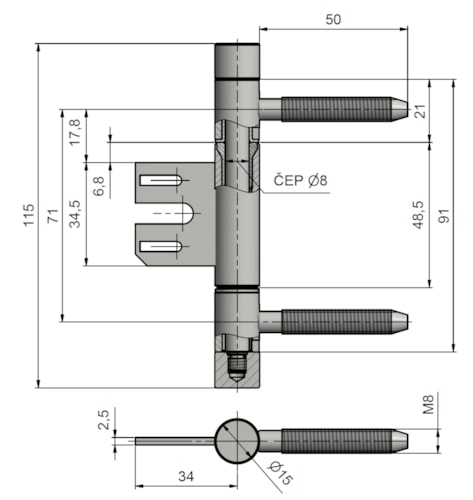

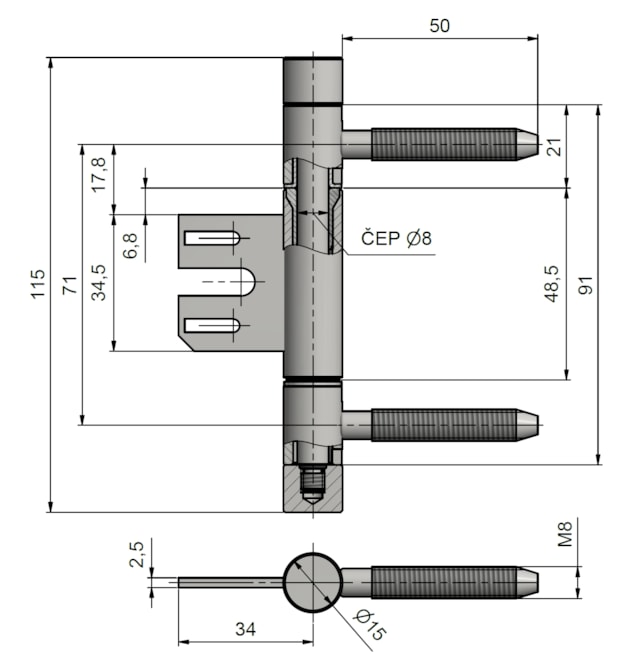

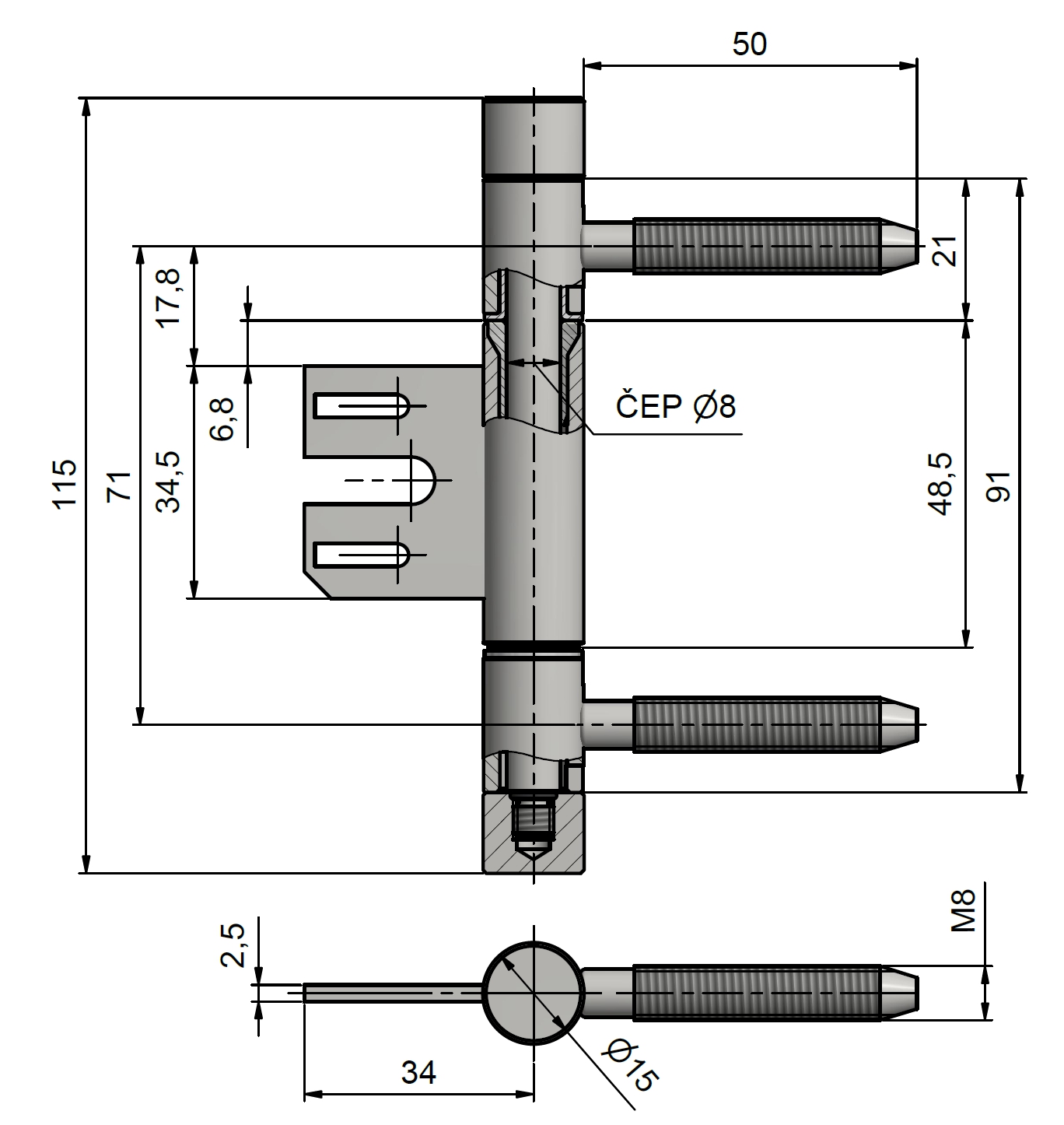

Drawing

2-00003381

Available variants

code type package size without VAT / MJ* incl. VAT / MJ* demand
code: 9783I000 name: Brushed package size: 50 pcs without VAT / MJ*: €14.01 incl. VAT / MJ*: €16.95

*Prices for MJ = for 1 piece (or 1 set)are indicative. When purchasing a smaller quantity than the package, a surcharge of up to 10% of the price of the goods may be charged.

Available variants

code name package size without VAT / MJ* incl. VAT / MJ*
code: 9783I000 name: Brushed package size: 50 pcs without VAT / MJ*: €14.01 incl. VAT / MJ*: €16.95

*Prices for MJ = for 1 piece (or 1 set)are indicative. When purchasing a smaller quantity than the package, a surcharge of up to 10% of the price of the goods may be charged.
