• Catalog sheet

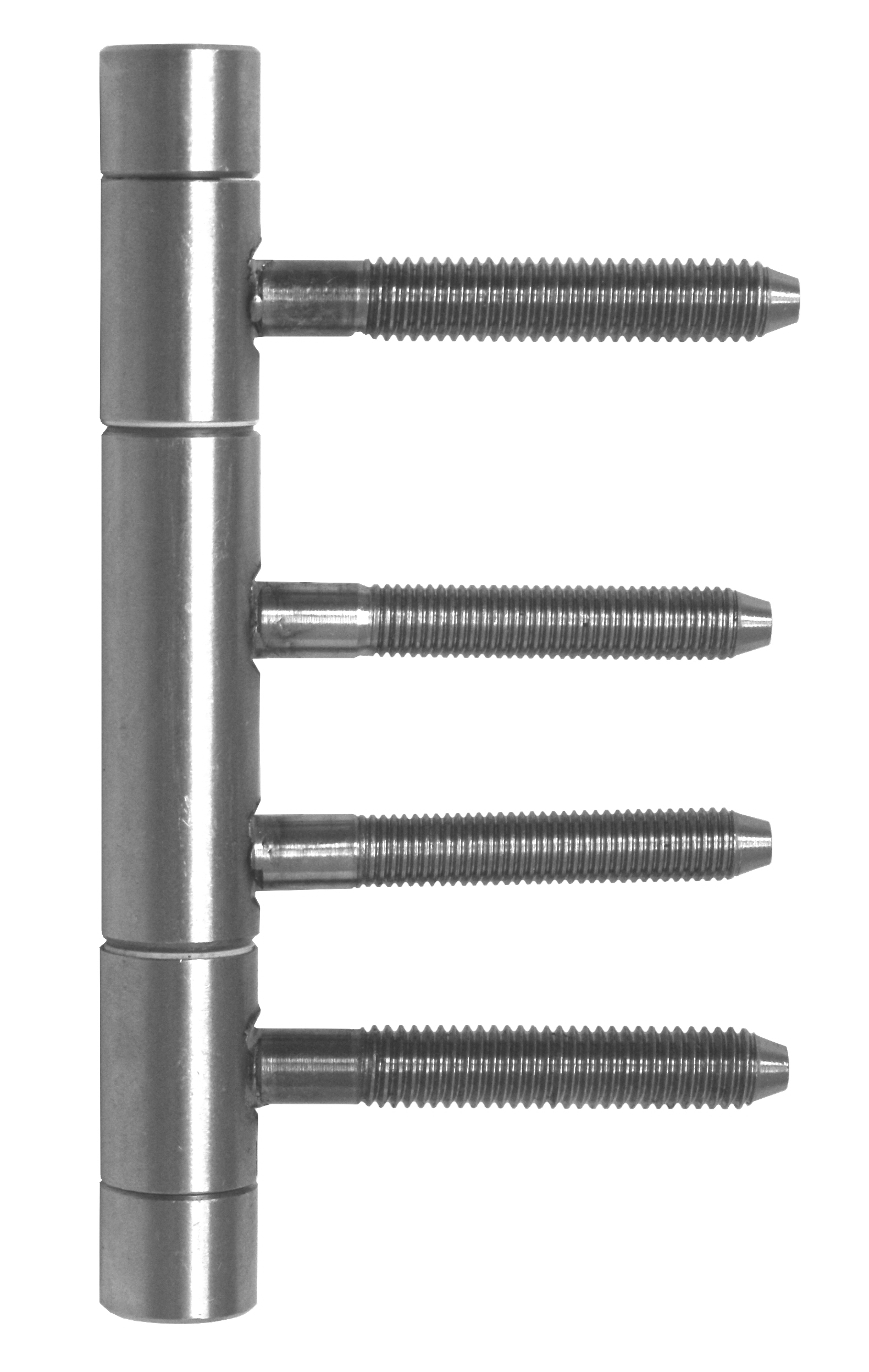

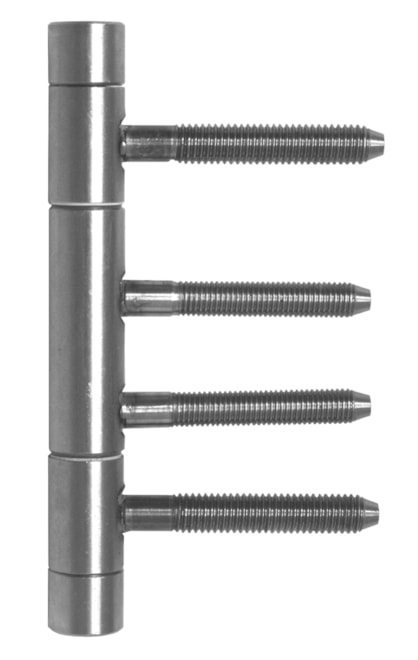

Hinge of three parts 15x90 M8 22/M7 TUKAN stainless steel

Catalog number 9781
Load 30.00
Type of hinge Complete hinge
Door Interior
Orientation of door or window For right and left door (frame)
According to material of door leaf Wood
According to door execution Rebate
According to doorframe Wooden casing
Ending Flat ending UR24
Main material Stainless steel
Fire resistance no
Gripping Screw in
Gripping middle part Into fixing element
Czech product Yes

Hinge of three parts 15x90 M8 22/M7 TUKAN stainless steel

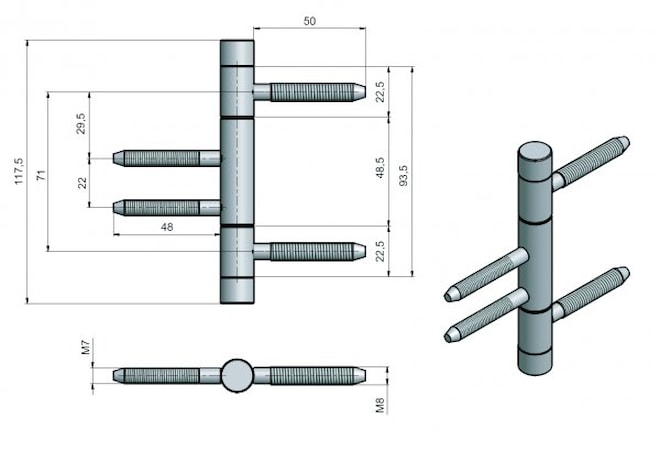

Drawing

Hinge of three parts 15x90 M8 22/M7 TUKAN stainless steel

Available variants

cover Code type package size without VAT / MJ* incl. VAT / MJ* demand
detail
Code: 9781I000 name: Brushed package size: 50 pcs without VAT / MJ*: € 14.36 incl. VAT / MJ*: € 17.38

No item matches your selection.

*Prices for MJ =for 1 piece (or 1 set)are indicative. When purchasing a smaller quantity than the package, a surcharge of up to 10% of the price of the goods may be charged.

UPON REQUEST variants – when ordering less than 100 pcs – extra charge 10%.

 Hinge of three parts is for wooden doors and casing. Its perfection is in solid and stable gripping. Hinges are suitable for doors with self-closing equipment. Stainless steel!
