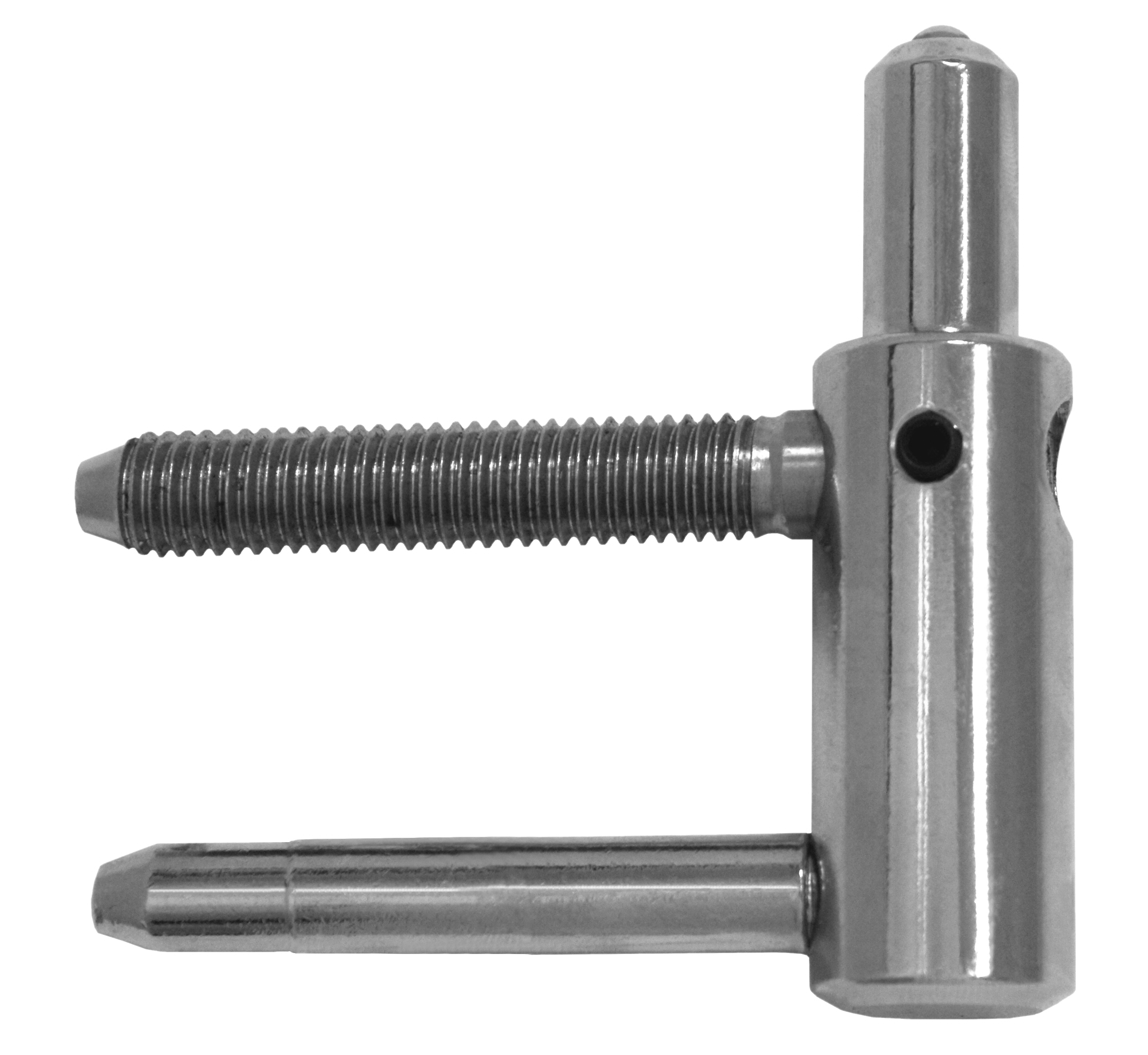

Door hinge TRIO 20 SD M10 BZ

Catalog number 5901
Load 50.00
Type of hinge Lower part
Door Exterior
Orientation of door or window For right and left door (frame)
According to door execution Rebate
According to doorframe Solid wood, Metal
Ending Without decorative ending
Main material Steel
Fire resistance no
Gripping Screw in or into fixing element
Diameter of bolt rivet(s) M10
Bolt(s) lenght 56,6 mm
Plug high 25,6 mm
Czech product Yes

5901

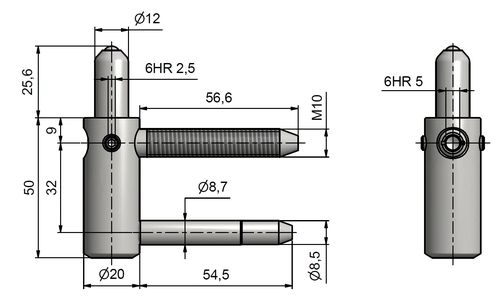

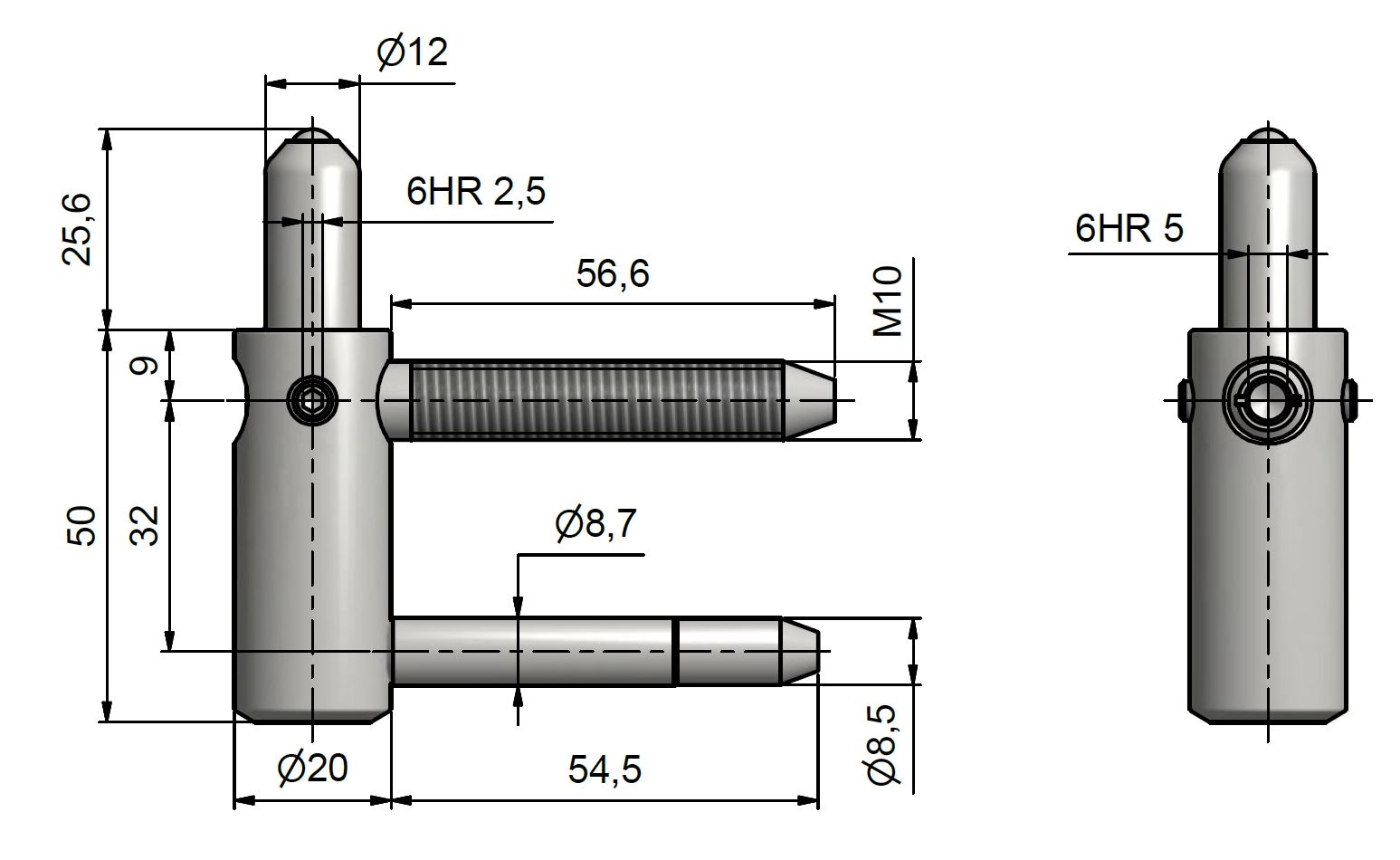

Drawing

Available variants

cover Code type package size without VAT / MJ* incl. VAT / MJ* demand
detail
Code: 59010510 name: Yelow zinc package size: 20 pcs without VAT / MJ*: € 3.96 incl. VAT / MJ*: € 4.79
detail
Code: 59010530 name: Blue zinc package size: 20 pcs without VAT / MJ*: € 3.96 incl. VAT / MJ*: € 4.79
detail
Code: 59012700 name: Nickel shiny package size: 20 pcs without VAT / MJ*: € 5.03 incl. VAT / MJ*: € 6.09

No item matches your selection.

*Prices for MJ =for 1 piece (or 1 set)are indicative. When purchasing a smaller quantity than the package, a surcharge of up to 10% of the price of the goods may be charged.

UPON REQUEST variants – when ordering less than 100 pcs – extra charge 10%.

Lower part hinge TRIO 20 + upper part adjustable in three directions. Diameter pin 12 mm. There is a posibility to use ABS and metal caps on hinges.
