• Catalog sheet

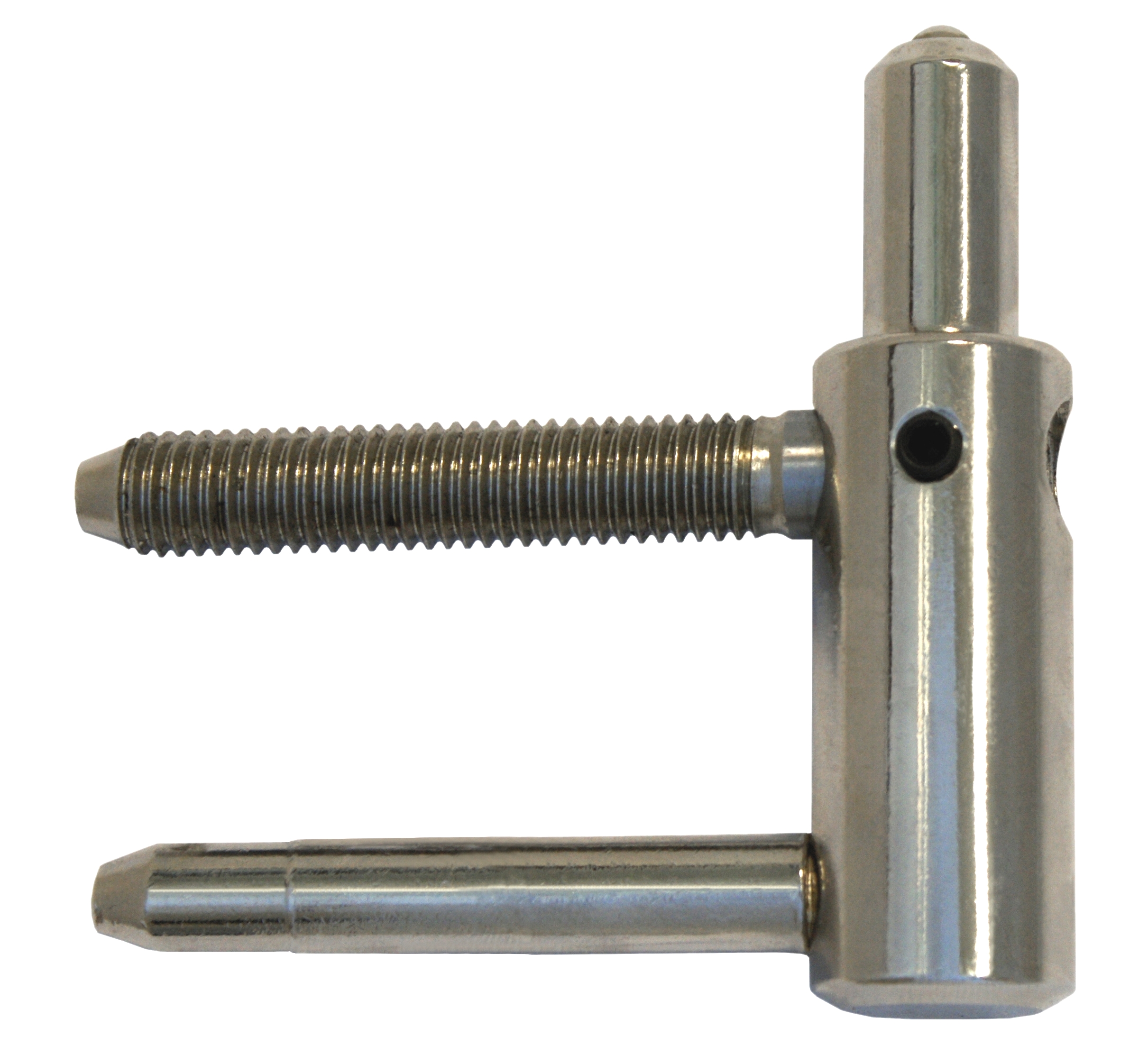

    Door hinge TRIO 20 M10 BZ SD Nickel shiny

    Catalog number 59012700
    Load 50.00
    Type of hinge Lower part
    Door Exterior
    Orientation of door or window For right and left door (frame)
    According to door execution Rebate
    According to doorframe Solid wood , Metal
    Ending Without decorative ending
    Main material Steel
    Fire resistance no
    Gripping Screw in or into fixing element
    Diameter of bolt rivet(s) M10
    Bolt(s) lenght 56,6 mm
    Plug high 25,6 mm
    Czech product Yes

    Door hinge TRIO 20 M10 BZ SD Nickel shiny

    Available variants

    cover Code type package size without VAT / MJ* incl. VAT / MJ* demand
    Code: 59010510 name: Yelow zinc package size: 20 pcs without VAT / MJ*: 3.96 incl. VAT / MJ*: 4.79
    Code: 59010530 name: Blue zinc package size: 20 pcs without VAT / MJ*: 3.96 incl. VAT / MJ*: 4.79
    Code: 59012700 name: Nickel shiny package size: 20 pcs without VAT / MJ*: 5.13 incl. VAT / MJ*: 6.21

    No item matches your selection.

    *Prices for MJ =for 1 piece (or 1 set)are indicative. When purchasing a smaller quantity than the package, a surcharge of up to 10% of the price of the goods may be charged.

    UPON REQUEST variants – when ordering less than 100 pcs – extra charge 10%.

    Lower part hinge TRIO 20 + upper part adjustable in three directions. Diameter pin 12 mm. There is a posibility to use ABS and metal caps on hinges.
