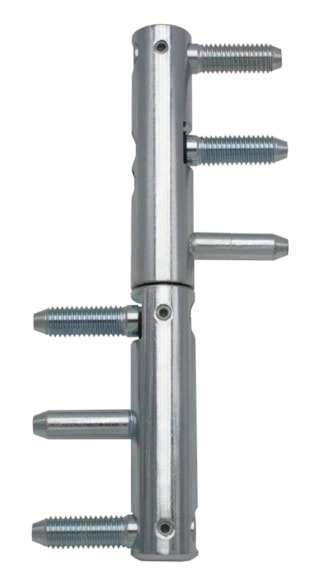

Door hinge TRIO 20 MAX BZ M10x29 PH Blue zinc

New

cat. no.: 55210530

Load: 60.00
Type of hinge: Complete hinge
Door: Exterior
Orientation of door or window: For right and left door (frame)
According to material of door leaf: Metal
According to door execution: Rebate
According to doorframe: Metal
Ending: Without decorative ending
Main material: Steel
Fire resistance: yes (appropriate for fire protection testing)
Gripping: Screw in
Diameter of bolt rivet(s): M10
Bolt(s) lenght: 30 mm
Plug high: 25,6 mm
Czech product: Yes

Use

Door hinge is for rebated doors. Adjustable in 3 directions. Load for 3 hinges - 160 kg.

Hinges are suitable for doors with self-clossing equipment: Self-closing equipment without the end stop requires hinges rated for a door 20% heavier than its actual weight.
This effect is even higher for self-closing equipment with the end stop, for which the door‘s effi cient weight is to be increased by 75%.

The hinge is appropriate for fire protection testing. Warning: The fire-protection hinges have to be tested within the entire set, i.e., together with the door and the frame!

Door hinge TRIO 20 MAX BZ M10x29 PH Blue zinc

Available variants

code type package size without VAT / MJ* incl. VAT / MJ* demand
code: 55210530 name: Blue zinc New package size: 20 pcs without VAT / MJ*: €10.42 incl. VAT / MJ*: €12.61 New

*Prices for MJ = for 1 piece (or 1 set)are indicative. When purchasing a smaller quantity than the package, a surcharge of up to 10% of the price of the goods may be charged.
