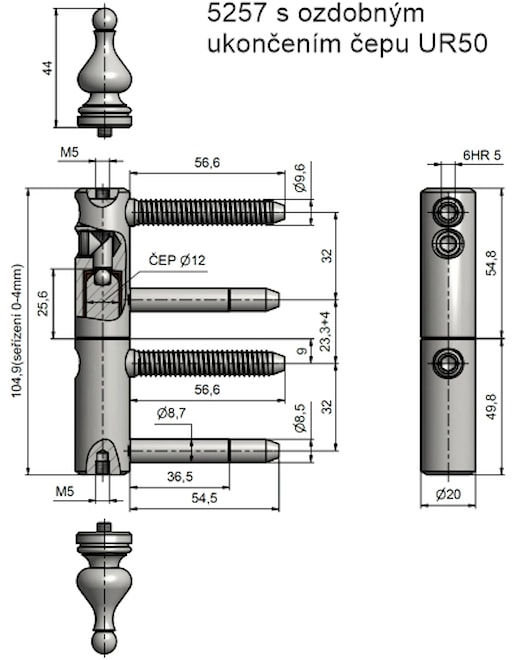

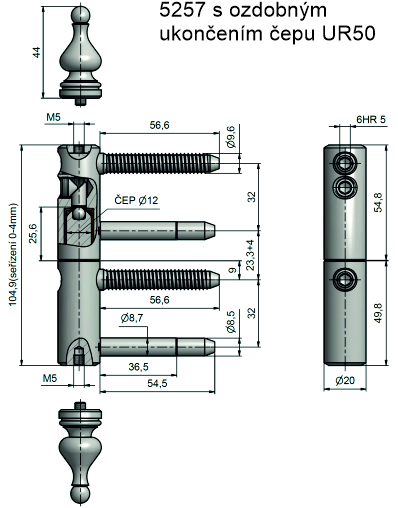

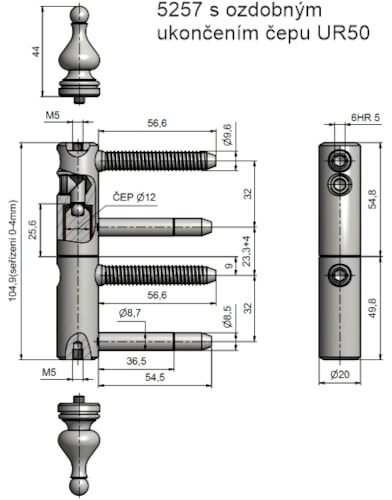

Door hinge TRIO 20 UR50 Yelow zinc

cat. no.: 5257UR50.ZNZ

Load: 50.00
Type of hinge: Complete hinge
Door: Exterior
Orientation of door or window: For right and left door (frame)
According to material of door leaf: Wood
According to door execution: Rebate
According to doorframe: Solid wood
Ending: Semiround ending UR25, Decorative ending UR01, Decorative ending UR14, Decorative ending UR21, Decorative ending UR50
Main material: Steel
Fire resistance: no
Gripping: Screw in
Diameter of bolt rivet(s): Special screw-thread into wood ø 9.6
Bolt(s) lenght: 56,6 mm
Plug high: 25,6 mm
Czech product: Yes
Download:

Use

Door hinge TRIO with decorative ending – we will customize it according to your needs (hinges are delivered assembled).

You can choose possible variants of decorative finish and surfaces – see below. When ordering lacquered hinges, please state which RAL finish do you request. We will inform you as soon as possible about price and possible delivery. Minimum amount 100 pcs.

The hinge is great option for stylish interiors, where is requested particular look (for instance historical decorative finish). It also meets the requirement for modern hinge – the adjustment is in 3 directions.

You can set the windovs with the same type of hinge as well – window hinges EXPERT 13,5 UR right or left. For lighter door we are offering TRIO 15 UR - see below.

Door hinge TRIO 20 UR50 Yelow zinc

Available variants

code type package size without VAT / MJ* incl. VAT / MJ* demand
code: 5257UR01.LAK name: UR01 Lacquer RAL package size: 1 pc without VAT / MJ*: €15.88 incl. VAT / MJ*: €19.22
code: 5257UR01.ZNM name: UR01 Blue zinc package size: 1 pc without VAT / MJ*: €14.51 incl. VAT / MJ*: €17.56
code: 5257UR01.ZNZ name: UR01 Yelow zinc package size: 1 pc without VAT / MJ*: €14.51 incl. VAT / MJ*: €17.56
code: 5257UR14.LAK name: UR14 Lacquer RAL package size: 1 pc without VAT / MJ*: €15.68 incl. VAT / MJ*: €18.97
code: 5257UR14.ZNM name: UR14 Blue zinc package size: 1 pc without VAT / MJ*: €14.34 incl. VAT / MJ*: €17.35
code: 5257UR14.ZNZ name: UR14 Yelow zinc package size: 1 pc without VAT / MJ*: €14.34 incl. VAT / MJ*: €17.35
code: 5257UR21.LAK name: UR21 Lacquer RAL package size: 1 pc without VAT / MJ*: €15.68 incl. VAT / MJ*: €18.97
code: 5257UR21.ZNM name: UR21 Blue zinc package size: 1 pc without VAT / MJ*: €14.34 incl. VAT / MJ*: €17.35
code: 5257UR21.ZNZ name: UR21 Yelow zinc package size: 1 pc without VAT / MJ*: €14.34 incl. VAT / MJ*: €17.35
code: 5257UR25.LAK name: UR25 Lacquer RAL package size: 1 pc without VAT / MJ*: €15.30 incl. VAT / MJ*: €18.51
code: 5257UR25.ZNM name: UR25 Blue zinc package size: 1 pc without VAT / MJ*: €14.21 incl. VAT / MJ*: €17.20
code: 5257UR25.ZNZ name: UR25 Yelow zinc package size: 1 pc without VAT / MJ*: €14.21 incl. VAT / MJ*: €17.20
code: 5257UR50.LAK name: UR50 Lacquer RAL package size: 1 pc without VAT / MJ*: €15.68 incl. VAT / MJ*: €18.97
code: 5257UR50.ZNM name: UR50 Blue zinc package size: 1 pc without VAT / MJ*: €14.34 incl. VAT / MJ*: €17.35
code: 5257UR50.ZNZ name: UR50 Yelow zinc package size: 1 pc without VAT / MJ*: €14.34 incl. VAT / MJ*: €17.35

*Prices for MJ = for 1 piece (or 1 set)are indicative. When purchasing a smaller quantity than the package, a surcharge of up to 10% of the price of the goods may be charged.

Available variants

code name package size without VAT / MJ* incl. VAT / MJ*
code: 5257UR01.LAK name: UR01 Lacquer RAL package size: 1 pcs without VAT / MJ*: €15.88 incl. VAT / MJ*: €19.22
code: 5257UR01.ZNM name: UR01 Blue zinc package size: 1 pcs without VAT / MJ*: €14.51 incl. VAT / MJ*: €17.56
code: 5257UR01.ZNZ name: UR01 Yelow zinc package size: 1 pcs without VAT / MJ*: €14.51 incl. VAT / MJ*: €17.56
code: 5257UR14.LAK name: UR14 Lacquer RAL package size: 1 pcs without VAT / MJ*: €15.68 incl. VAT / MJ*: €18.97
code: 5257UR14.ZNM name: UR14 Blue zinc package size: 1 pcs without VAT / MJ*: €14.34 incl. VAT / MJ*: €17.35
code: 5257UR14.ZNZ name: UR14 Yelow zinc package size: 1 pcs without VAT / MJ*: €14.34 incl. VAT / MJ*: €17.35
code: 5257UR21.LAK name: UR21 Lacquer RAL package size: 1 pcs without VAT / MJ*: €15.68 incl. VAT / MJ*: €18.97
code: 5257UR21.ZNM name: UR21 Blue zinc package size: 1 pcs without VAT / MJ*: €14.34 incl. VAT / MJ*: €17.35
code: 5257UR21.ZNZ name: UR21 Yelow zinc package size: 1 pcs without VAT / MJ*: €14.34 incl. VAT / MJ*: €17.35
code: 5257UR25.LAK name: UR25 Lacquer RAL package size: 1 pcs without VAT / MJ*: €15.30 incl. VAT / MJ*: €18.51
code: 5257UR25.ZNM name: UR25 Blue zinc package size: 1 pcs without VAT / MJ*: €14.21 incl. VAT / MJ*: €17.20
code: 5257UR25.ZNZ name: UR25 Yelow zinc package size: 1 pcs without VAT / MJ*: €14.21 incl. VAT / MJ*: €17.20
code: 5257UR50.LAK name: UR50 Lacquer RAL package size: 1 pcs without VAT / MJ*: €15.68 incl. VAT / MJ*: €18.97
code: 5257UR50.ZNM name: UR50 Blue zinc package size: 1 pcs without VAT / MJ*: €14.34 incl. VAT / MJ*: €17.35
code: 5257UR50.ZNZ name: UR50 Yelow zinc package size: 1 pcs without VAT / MJ*: €14.34 incl. VAT / MJ*: €17.35

*Prices for MJ = for 1 piece (or 1 set)are indicative. When purchasing a smaller quantity than the package, a surcharge of up to 10% of the price of the goods may be charged.
